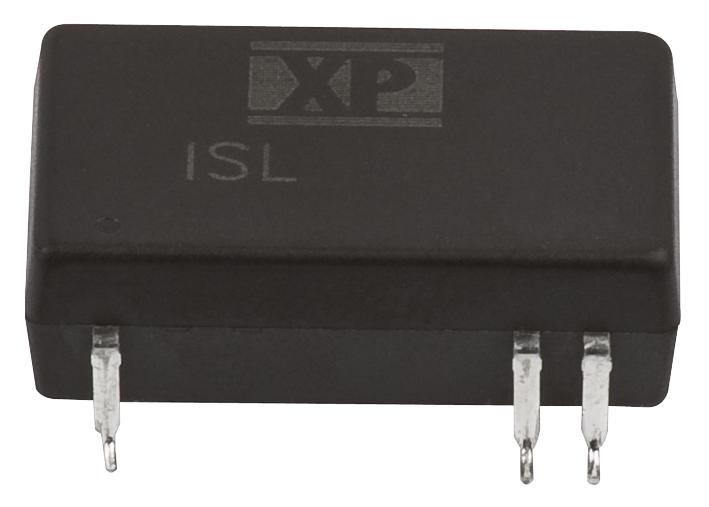

XP POWER ISL2412A DC-DC Converter
The ISL series is a compact 1.5W regulated DC-DC converter offering single and dual output options with a 4:1 input voltage range. It features industry-standard pinout, short circuit protection, and high isolation of 1500V DC, making it ideal for power management and industrial applications. The converter operates in temperatures from -40°C to +85°C, is convection-cooled, and boasts efficiencies tailored to demanding environments. Its robust design ensures reliable performance with a low ripple of 100 mV pk-pk, suitable for sensitive electronics and automation systems requiring stable power sources.
XP POWER ISL2412A DC-DC Converter Specifications:
- Input Voltage Range — 24 V (9-36 VDC), 48 V (18-72 VDC)
- Output Voltage — See table
- Minimum Load — 10%
- Line Regulation — 20.2% typical
- Load Regulation — 20.5% typical
- Setpoint Accuracy — ±1%/3% typical, positive/negative output
- Ripple & Noise — 100 mV pk-pk 20 MHz bandwidth
- Efficiency — Dependent on model, optimized for low power loss
- Isolation Voltage — 1500 VDC
- Isolation Resistance — 10^9 Ω
- Isolation Capacitance — 1000 pF typical
- Switching Frequency — 550 kHz typical at full load
- Operating Temperature — -40°C to +85°C, derating from 100% load at 70°C
- Storage Temperature — -55°C to +125°C
- Case Temperature — Max 100°C
- Cooling — Convection-cooled
- Lead Temperature — 240°C, 10 seconds
- MTBF — Over 1 million hours according to MIL-HDBK-217F at 25°C
Buy the Power Supply Series ISL 1.5W Converters: ISL2412A
Purchase the Power Supply Series ISL 1.5W Converter ISL2412A online today and elevate your power management solutions. This high-quality, regulated DC-DC converter offers a 4:1 input voltage range, industry-standard pinout, and 1500V DC isolation, making it perfect for industrial and electronics applications. Its convection-cooled design, low ripple, and high efficiency ensure dependable operation across a wide temperature range. With short circuit protection and a robust construction, these converters provide a secure, stable power source for sensitive devices and automation systems. Order now to secure fast delivery and enjoy superior performance your projects deserve.
Order your Power Supply Series ISL 1.5W Converter ISL2412A today and activate reliable power sources for industrial automation and power management projects.
Frequently Asked Questions
Where can I buy XP POWER ISL2412A?
You can click on the BUY or RFQ button to purchase ISL2412A from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part ISL2412A?
You can download the ISL2412A datasheet or visit the XP POWER website for support.
Who is the manufacturer of ISL2412A?
XP POWER
