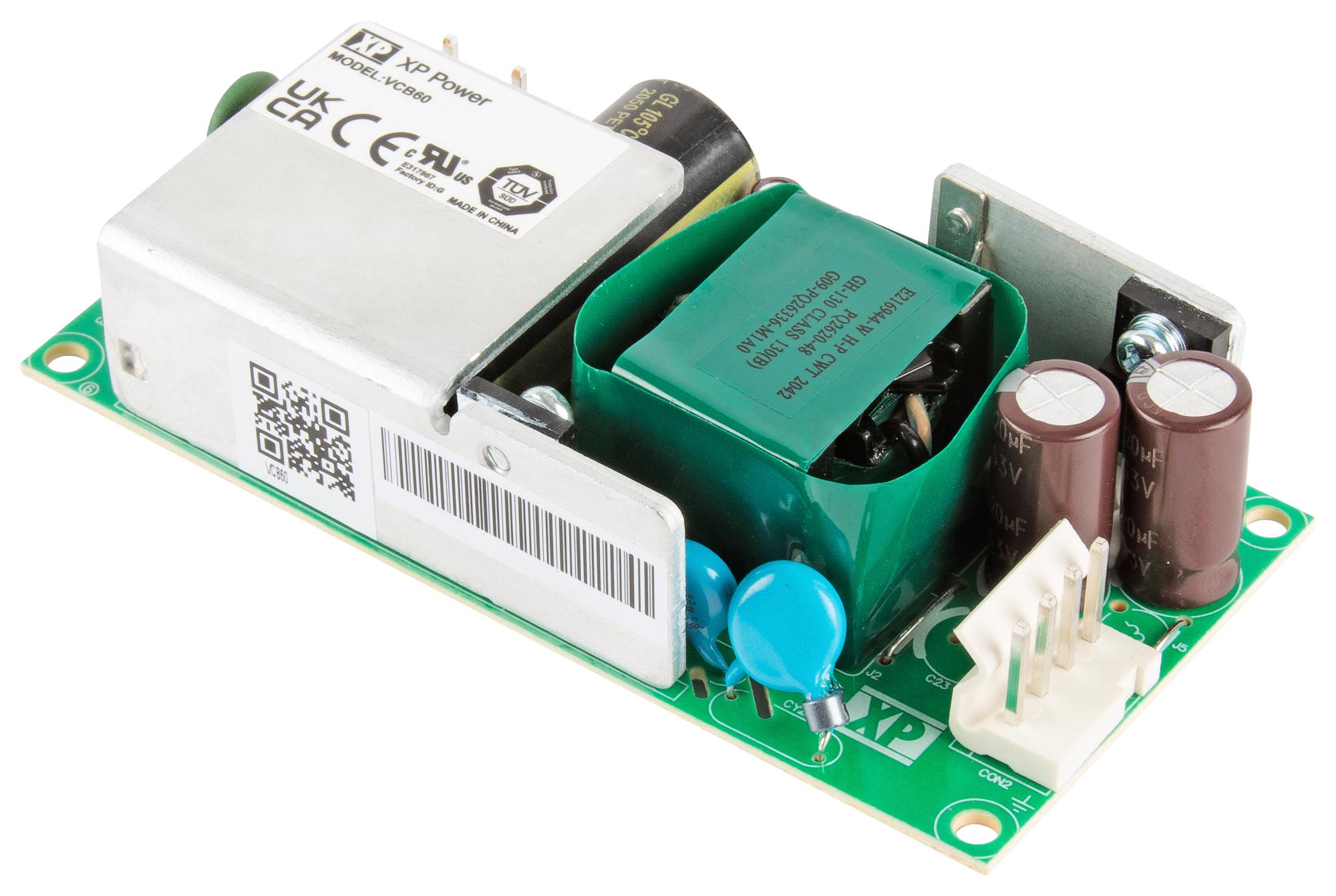

XP POWER VCB60US15 power supply
The VCB60 series is a line of open-frame AC-DC power supplies with a 60W output, designed for cost-effective industrial, Information Technology Equipment (ITE), domestic, IoT, and robotic applications. These power supplies feature a compact 4 x 2-inch footprint, a low profile of 1.01 inches, and are convection cooled. They comply with multiple safety standards including IEC60950, IEC62368, and IEC60355, and meet stringent EMC requirements such as EN55024, EN55035, EN61000-4 immunity standards, and EN55032, EN55014, IEC61000-3 emissions standards. With a broad input voltage range of 90-305VAC and overvoltage category III approval, they are suitable for building wiring systems. The units offer full load operation from -10°C to +60°C (up to +50°C at full load), with protection features like short circuit, overvoltage, and overload protection. Operating at a switching frequency between 5kHz and 75kHz (load-dependent), they achieve up to 90% efficiency to minimize waste heat, making them ideal for low-cost, reliable power solutions in various applications.
XP POWER VCB60US15 power supply Specifications:
- Power Output: 60W
- Input Voltage Range: 90-305VAC
- Output Voltage: 15.0VDC
- Output Current: 4.00A
- Dimensions: 4" x 2" x 1.01" (101.6 x 50.8 x 25.6mm)
- Operating Temperature: -10°C to +60°C (up to +50°C at full load)
- Efficiency: up to 90%
- Switching Frequency: 5kHz to 75kHz
- Protection: Short circuit, overvoltage & overload
- Certifications: IEC60950-1, IEC62368-1, IEC60355, EN55024, EN55035
- Isolation: Input to Output 3000 vac
- Safety Approvals: IEC, UL, CB, CE, UKCA
- Humidity: 95% RH
- Operational Altitude: up to 5000 m
- Shock and Vibration: IEC standards compliance
Buy the XP Power Series AC-DC Power Supplies: VCB60US15
Enhance your industrial, IoT, or domestic projects with the XP Power VCB60US15 power supply. This 60W open-frame unit offers high efficiency up to 90%, broad input voltage compatibility (90-305VAC), and robust safety features including IEC60950 and IEC62368 standards. Its compact 4 x 2-inch footprint and low profile of 1.01 inches make installation seamless in space-constrained environments. With protections against short circuits, overloads, and overvoltage, and operating from -10°C to +60°C, it ensures reliable, continuous power for critical systems, all while meeting international compliance standards.
Buy XP Power VCB60US15 now and experience unmatched reliability and performance in industrial and low-cost power applications.
