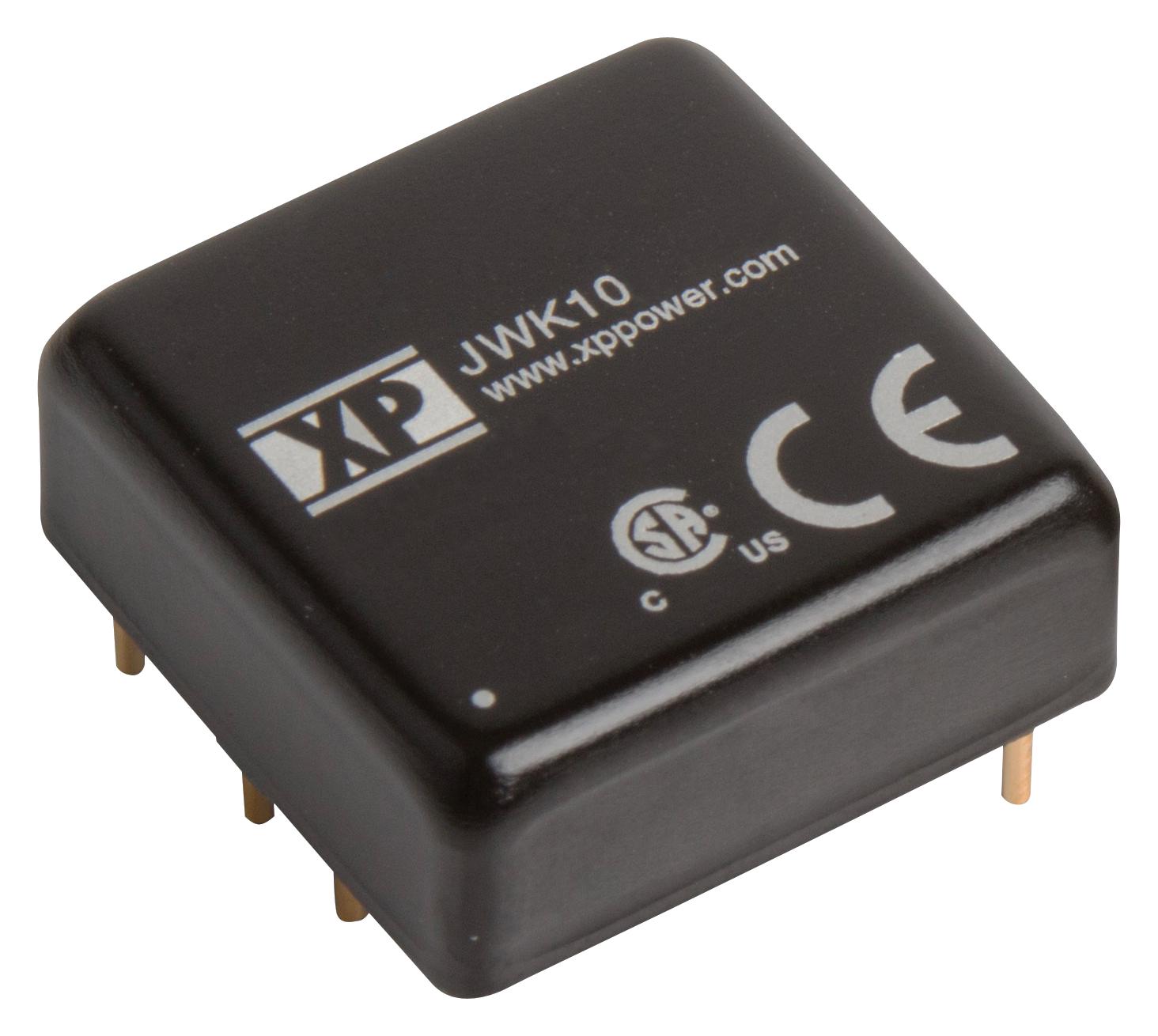

XP POWER JWK1024S05 Power Supply Module
This power supply features regulated single and dual outputs, an ultra-wide 4:1 input voltage range, and a compact 1 inch by 1 inch package. It offers 1500VDC isolation, operates across a temperature range of -40°C to 100°C, and is equipped with remote on/off functionality. The unit is housed in a six-sided metal case, complies with ITE safety standards, and is suitable for power management and DC converter applications.
XP POWER JWK1024S05 Power Supply Module Specifications:
- Physical Dimensions: 1.00 x 1.00 x 0.40 inches (25.4 x 25.4 x 10.16 mm)
- Input Voltage Range: 9.0 to 36 V DC (48V nominal models with 78.0 to 75 V open circuit)
- Output Voltage Options: 3.3V, 5V, 5.1V, 12V, 15V, 24V, 25V, 12V, 15V
- Maximum Output Power: 10 Watts
- Isolation Voltage: 1500 VDC
- Operating Temperature Range: -40°C to +100°C
- Efficiency: Up to 87%
- Safety Standards: UL60950-1, UL62368-1
- Remote On/Off: Enabled (logic high 2.5-50V or open circuit), Disabled (logic low <1V or short)
- Housing: Six-sided metal case, Optional heatsink available
- Switching Frequency: 750 kHz
- Input Surge Voltage: 100 V for 1s (48V models), 50 V for 24V models
- Certifications: UL, CSA, IEC
Buy the Buy XP Power Power Supply Part Number JWK1024S05 Online
Purchase the XP Power power supply module online today for reliable power conversion with regulated outputs, wide input range, high isolation voltage, and robust construction. Designed for a variety of industrial and electronic applications, it features a compact 1x1 inch size, operates efficiently across -40°C to 100°C, and includes remote on/off for easy integration. With UL safety certification and optional heatsink, this power supply ensures long-term durability and safety for your power management needs. Order now for fast, secure delivery.
Get XP Power JWK1024S05 today—compact power supply with 1500VDC isolation, efficient regulation, and remote on/off for reliable industrial power.
Frequently Asked Questions
Where can I buy XP POWER JWK1024S05?
You can click on the BUY or RFQ button to purchase JWK1024S05 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part JWK1024S05?
You can download the JWK1024S05 datasheet or visit the XP POWER website for support.
Who is the manufacturer of JWK1024S05?
XP POWER
