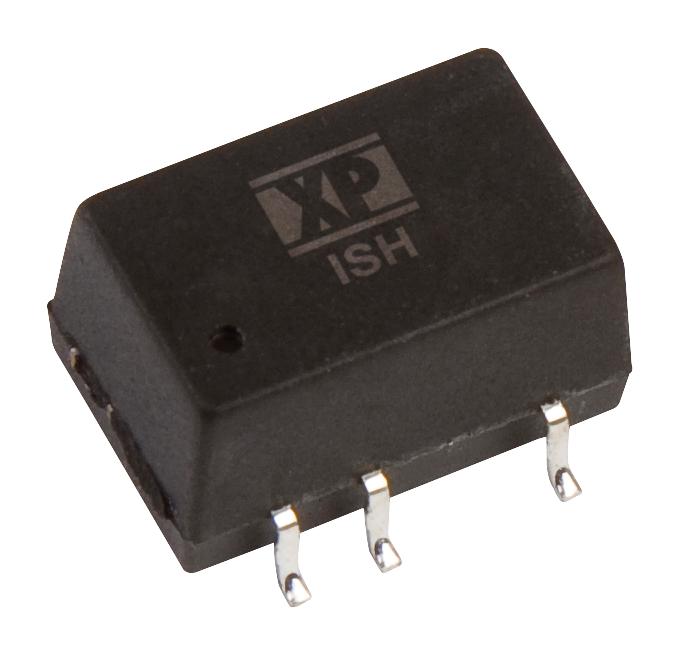

XP POWER ISH2424A DC-DC Converter
The XP Power DC-DC converter ISH2424A is a compact, high-efficiency power solution providing 2 Watts of output power with a single output in SMD package. It offers industry-standard pinout and operates over a wide temperature range from -40°C to +105°C, making it suitable for various industrial and electronic applications. The converter features 1500 VDC isolation, with an optional 3000 VDC model, ensuring reliable electrical separation. Its design ensures minimal ripple and noise with efficient power conversion, ideal for demanding environments requiring stable voltage regulation and high isolation.
XP POWER ISH2424A DC-DC Converter Specifications:
- Power Output: 2 Watts
- Input Voltage Range: 10.8-13.2 VDC
- Output Voltage: 5 VDC (±2.5%) at 70% load
- Isolation Voltage: 1500 VDC, optionally 3000 VDC with suffix -H
- Operating Temperature: -40°C to +105°C (derates at higher temps)
- Storage Temperature: -55°C to +125°C
- Dimensions: 0.500 x 0.44 x 0.285 inches (12.7 x 11.2 x 7.25 mm)
- Weight: 1.5 grams
- Efficiency: High efficiency based on model specifications
- Switching Frequency: 700–115 kHz
- Isolation Resistance: 10^9 Ω at 500 VDC
- Isolation Capacitance: 20 pF
- Input/Output Ripple and Noise: Max 700 mV pk-pk at 20 MHz bandwidth
- Mounting: SMD, industry standard pinout
- Certifications: UL listed, RoHS compliant
- Operating humidity: up to 95% RH non-condensing, cooling via natural convection
Buy the Buy XP Power DC-DC Converter Part Number ISH2424A Online
Purchase the XP Power DC-DC converter ISH2424A online today to ensure high-quality power conversion in your electronic projects. Its compact design and industry-standard pinout make integration easy, while its wide temperature range and high efficiency guarantee reliable operation in harsh conditions. Whether for industrial automation, embedded systems, or other electronics, this 2W converter provides excellent electrical isolation of 1500 VDC. Order now to benefit from fast delivery, secure checkout, and technical support for your power supply needs.
Buy XP Power ISH2424A now and experience unmatched reliability and performance with high efficiency and electrical isolation for demanding applications.
Frequently Asked Questions
Where can I buy XP POWER ISH2424A?
You can click on the BUY or RFQ button to purchase ISH2424A from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part ISH2424A?
You can download the ISH2424A datasheet or visit the XP POWER website for support.
Who is the manufacturer of ISH2424A?
XP POWER
