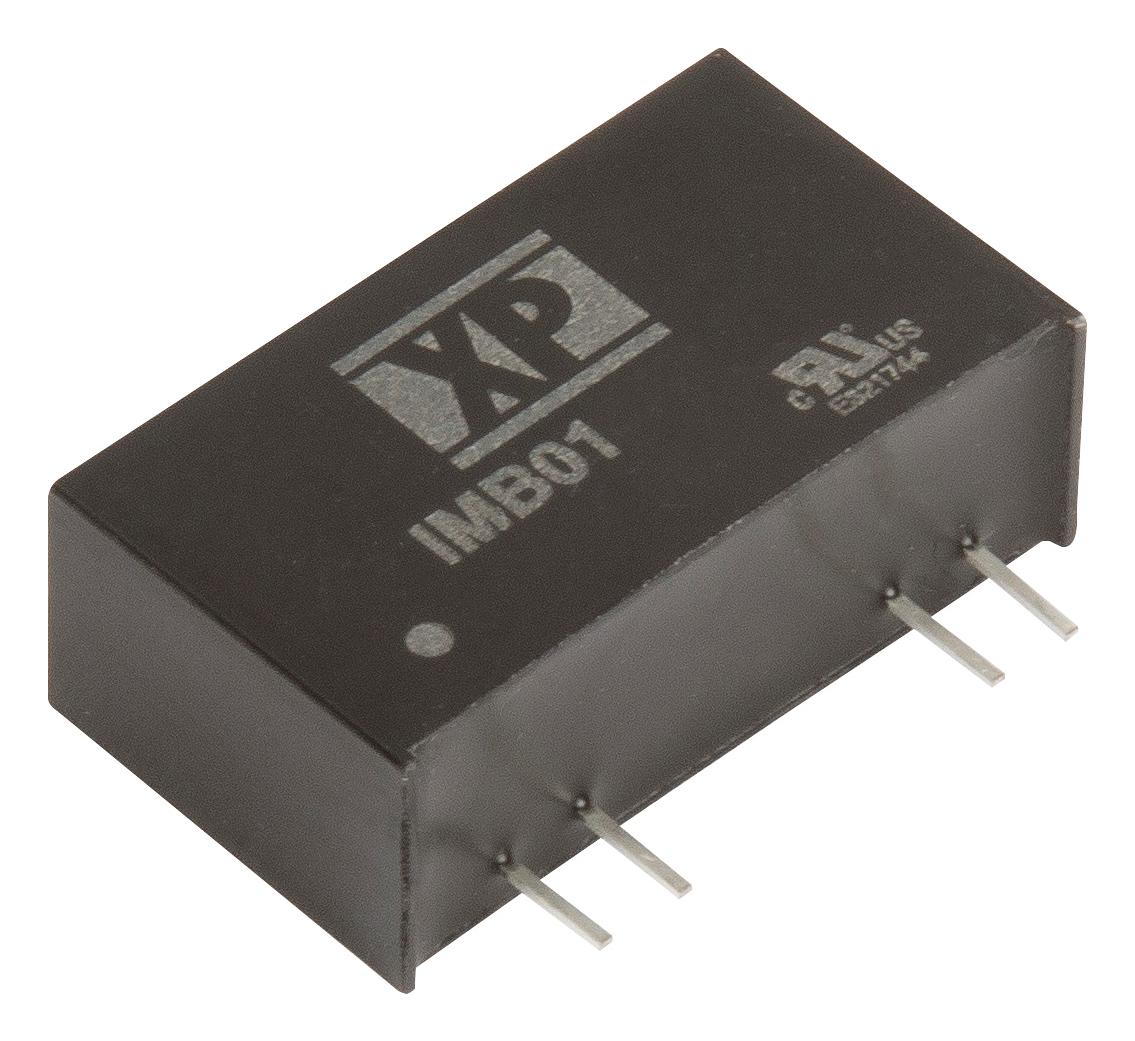

XP POWER IMB0112S12 Medical DC-DC Converter
The IMBO1 series from XP Power is a compact medical-grade DC-DC converter with 1 watt output power, designed for medical applications requiring high isolation, low leakage current, and operation up to +85°C. It features a SIP7 package, reinforced isolation with 2 x MOPP at 300VAC, and complies with IEC60601-1 standards. The device offers short circuit protection, excellent efficiency at 80%, and operates within a wide input voltage range of 10.8V to 26.4V. With a MTBF of 43 million hours, it provides reliable, safe power conversion suitable for critical medical environments.
XP POWER IMB0112S12 Medical DC-DC Converter Specifications:
- Input Voltage Range: 10.8V to 26.4V
- Output Voltage: 5V or 12V models
- Output Current: 200 mA to 705 mA depending on model
- Isolation: 4000 VAC for 60 seconds, 2 x MOPP
- Leakage Current: 2uA
- Efficiency: 80%
- Operating Temperature: -40°C to +85°C
- MTBF: 43 million hours
- Dimensions: 0.87 x 0.49 x 0.30 inches (22.0 x 12.5 x 7.5 mm)
- Weight: 0.009 lbs (4.1 g)
- Pin Material: Tinned Copper
- Case Material: UL94V-0 rated plastic
- Switching Frequency: 12-28 kHz, may enter burst mode at light load
- Certification: IEC60601-1 compliant, World wide medical approvals
Buy the XP Power Series DC-DC Converter: IMBO1 Series 1 Watt
Purchase the XP Power IMBO1 Series medical DC-DC converter online today and ensure your medical devices operate safely and reliably. With reinforced 2 x MOPP isolation, low leakage current, and operation up to +85°C, this 1-watt power module provides consistent performance in demanding environments. Its compact SIP7 packaging makes it suitable for space-constrained applications. Enjoy fast online ordering, certified medical standards compliance, and the peace of mind that comes with premium quality power solutions designed for healthcare and testing equipment.
Buy XP Power IMBO1 Series 1 Watt medical DC-DC converter now and experience unmatched reliability and performance in critical medical applications.
Frequently Asked Questions
Where can I buy XP POWER IMB0112S12?
You can click on the BUY or RFQ button to purchase IMB0112S12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part IMB0112S12?
You can download the IMB0112S12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of IMB0112S12?
XP POWER
