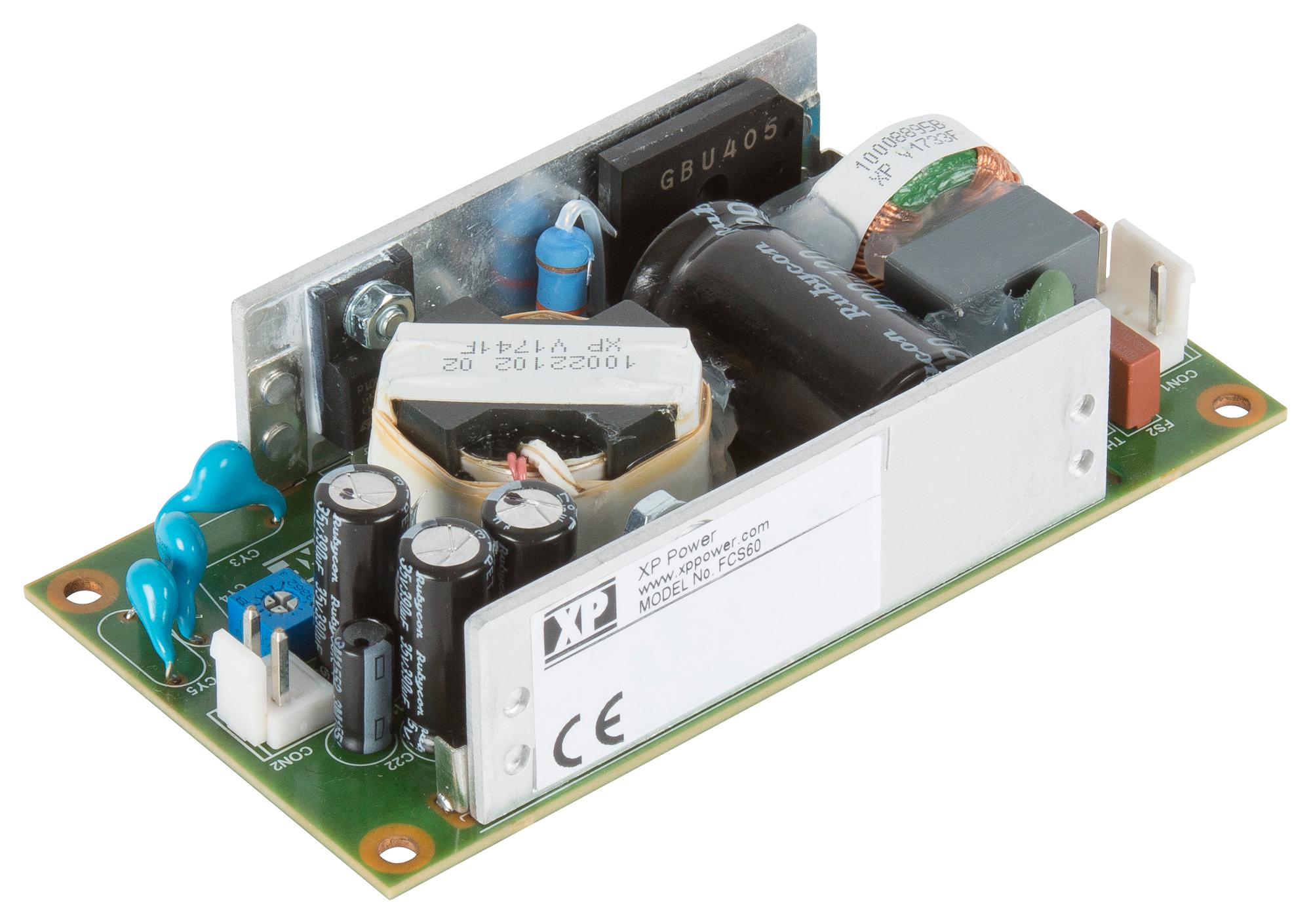

XP POWER FCS60US15 Power Supply Module
The FCS60 series is a family of high-efficiency, 60W convection-cooled AC-DC power supplies designed for medical and industrial applications. They feature a low profile of just 1.04 inches height and a compact footprint of 2 inches by 4 inches. Approved for both Class I and Class II installations, these power supplies include two AC line fuses and are engineered to have low leakage currents, making them suitable for medical devices. They operate down to 80VAC input, offer high power density, and comply with safety standards applicable to industrial and medical environments. The series also boasts less than 0.3W no-load input power, contributing to energy efficiency.
XP POWER FCS60US15 Power Supply Module Specifications:
- Power Output: 60W
- Input Voltage Range: 80-264 VAC
- Output Voltages: 12V, 15V, 18V, 24V, 36V, 48V
- Output Currents: 5.00A, 4.00A, 3.33A, 2.50A, 1.67A, 1.25A
- Efficiency: 85-86%
- No Load Power: Less than 0.3W
- Profile Height: 1.04 inches
- Footprint: 2 inches by 4 inches
- Operating Temperature: -25°C to +70°C (derating applies)
- Safety Approvals: Medical (IEC60601-1), Household (IEC60335-1), IT Equipment
- Mounting: Connects via JST-compatible connectors, safety earth connection required for Class I
- Dimensions: 50.8 x 101.6 x 26.4 mm
- Certifications: UL, CUL, IEC60950-1, IEC62368-1, EN62368-1, etc.
- Other Features: High Power Density, Low Leakage Current, Energy Efficient
Buy the XP Power FCS60U2013 Reliable Power Supply for Industrial Applications
Purchase the XP Power FCS60U15 power supply online today to ensure your industrial or medical equipment operates with maximum reliability and efficiency. These 60W AC-DC units are compact, low-profile, and compliant with safety standards for both Class I and Class II installations. Featuring high efficiency, minimal no-load power consumption, and versatile output options, they are ideal for demanding environments that require energy-saving solutions. Easy to install and backed by a 3-year warranty, this power supply guarantees excellent performance and energy savings.
Buy XP Power FCS60U15 now and experience unmatched reliability and high efficiency in industrial and medical environments.
Frequently Asked Questions
Where can I buy XP POWER FCS60US15?
You can click on the BUY or RFQ button to purchase FCS60US15 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part FCS60US15?
You can download the FCS60US15 datasheet or visit the XP POWER website for support.
Who is the manufacturer of FCS60US15?
XP POWER
