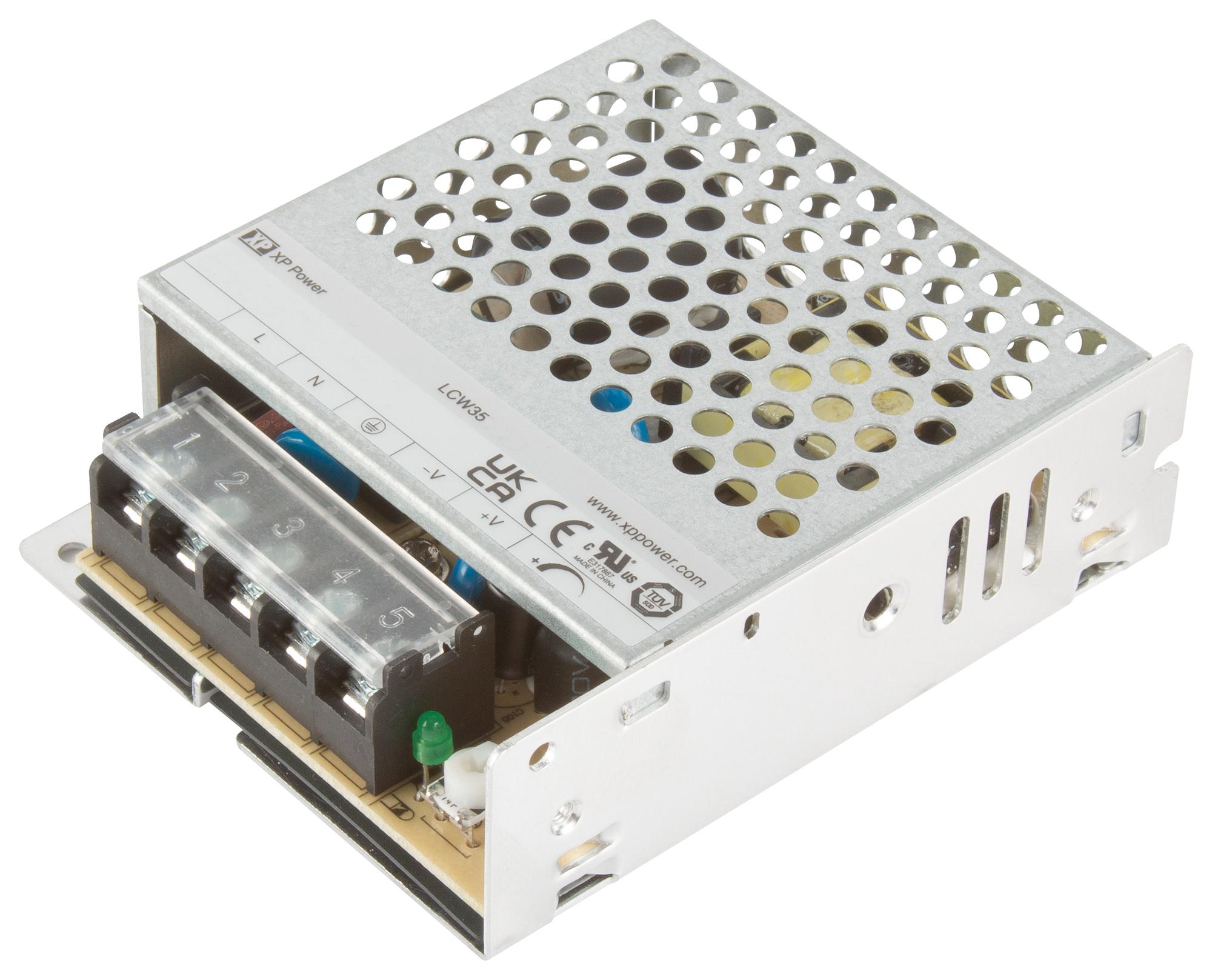

XP POWER LCW35US05 Power Supply Module
The LCW35 series regulated output convection-cooled AC to DC power supplies offer a reliable solution for industrial electronics, household, and technology applications. They feature a wide input voltage range of 85-305VAC, adjustable output voltage from 5.0V to 24V, and high efficiency of up to 88%. With protections including short circuit, overvoltage, and overload, these 35W power supplies perform effectively from -30°C to +70°C. Constructed with an aluminum chassis, vented steel cover, and conformal coating option, they are certified under UL, EN, CE, and UKCA standards. Dimensions are 99 mm x 82 mm x 30 mm, making them ideal for security, lighting, and smart system applications, backed by a three-year warranty.
XP POWER LCW35US05 Power Supply Module Specifications:
- Input Voltage Range: 85-305VAC
- Output Voltage Adjustment: +10%
- Output Power: 35W
- Efficiency: Up to 88%
- Dimensions: 99mm x 82mm x 30mm
- Operating Temperature: -30°C to +70°C
- Output Voltage: 5.0V to 24V
- Ripple & Noise: 70mV to 150mV pk-pk depending on model
- Protection: Short circuit, Overvoltage, Overload
- Isolation: 4000V AC (Input to Output)
- Switching Frequency: 65kHz
- Case Material: Aluminum chassis with galvanized steel cover
- Certifications: UL62368-1, EN62368-1, EN60335, EN61558, CE, UKCA
- Conformal Coating: Optional
- Standards Compliance: Class B emissions
- Temperature Coefficient: ±0.03
- Humidity: 5-90% RH, Non-condensing
- Max Operating Altitude: 5000 meters
- Venting: Natural convection
- Warranty: 3 years
Buy the XP Power LCW35 U–2013 Reliable Power Supply for Industrial Applications
Purchase the XP Power LCW35 series convection-cooled power supplies online today to ensure your industrial or household electronics operate safely and efficiently. Designed for maximum reliability, these 35W units feature wide input voltage compatibility from 85 to 305VAC, high efficiency up to 88%, and comprehensive protections including short circuit, overvoltage, and overload. Certified to UL, EN, CE, and UKCA standards, they suit security systems, lighting controls, smart home devices, ticketing, and vending solutions. With a compact size of 99 mm x 82 mm x 30 mm and a 3-year warranty, secure your system’s power needs now with an easy online purchase.
Buy XP Power LCW35 power supply now and experience unmatched reliability and efficiency for industrial, security, and household systems.
Frequently Asked Questions
Where can I buy XP POWER LCW35US05?
You can click on the BUY or RFQ button to purchase LCW35US05 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part LCW35US05?
You can download the LCW35US05 datasheet or visit the XP POWER website for support.
Who is the manufacturer of LCW35US05?
XP POWER
