XP POWER IHL0205S15 DC-DC Converter
The IHL02 series is a 2W dual-output DC-to-DC converter housed in a 7-pin SIP package, designed with bipolar outputs suitable for MOSFET and IGBT drive applications. It features high electrical isolation of 5,200VDC with a working voltage of 250VAC, and provides both single and dual output options. The device is capable of operating within a temperature range of -40°C to 95°C and offers continuous short circuit protection. It is ideal for power management in industrial applications, maintaining full load performance at 65°C ambient temperature.
XP POWER IHL0205S15 DC-DC Converter Specifications:
- Power Output: 2 Watts
- Isolation Voltage: 5,200VDC (functional insulation)
- Working Voltage: 250VAC, 400VDC
- Input Voltage Range: 13.5V to 165V (typical)
- Output Voltage: 3.3V to 30V (see models)
- Output Current: 70% minimum load, full load at 65°C ambient
- Operating Temperature: -40°C to +95°C
- Isolation Resistance: 10Ω
- Isolation Capacitance: 7 pF
- Switching Frequency: 50-100 kHz
- Dimensions: 0.77 x 0.28 x 0.39 inch (19.5 x 7.2 x 10.0 mm)
- Case Material: Non-conductive plastic (UL94V-0)
- Solder Material: Phosphor bronze with solder coating
- Protection: Continuous short circuit protection
- Efficiency: Approximately 80%
- MTBF: 3.3 million hours
- Humidity: 25% to 95% RH, non-condensing

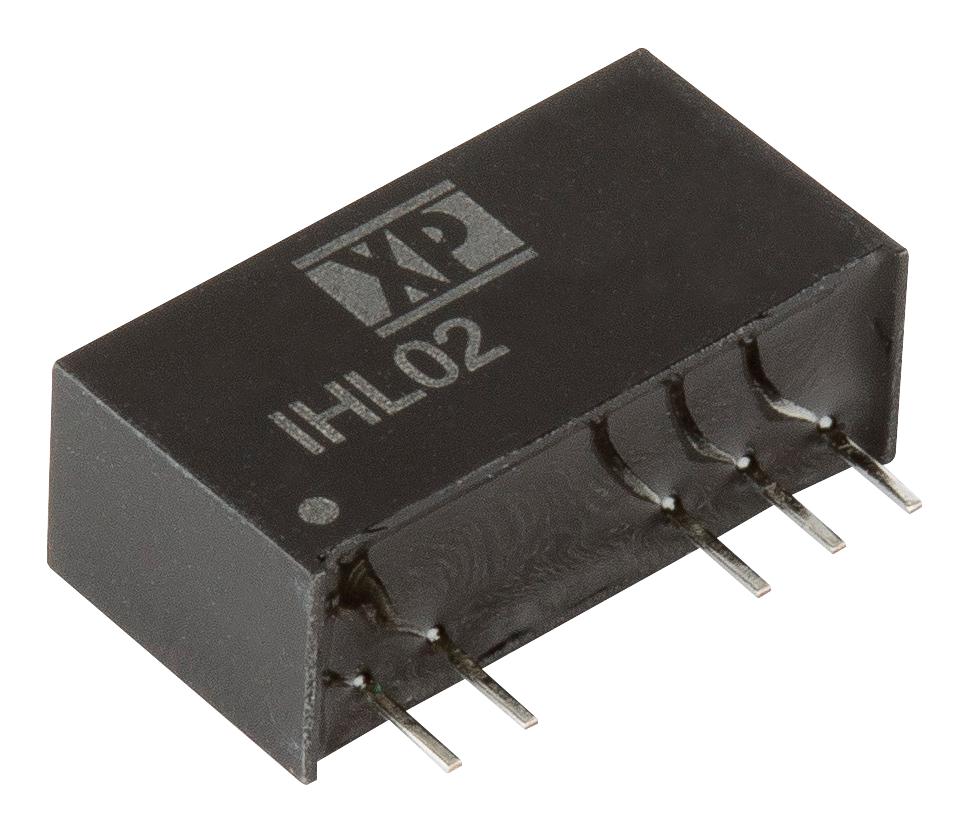

Buy the Buy XP Power IHL02 Series Part Number IHL0205S15 Online
Purchase the XP Power IHL02 series DC-DC converter online today and enjoy reliable power conversion with high isolation of 5,200VDC, bipolar outputs suitable for MOSFET and IGBT drives, and full load performance at 65°C ambient. Compact in size, with a universal input range, and protection features including short circuit auto recovery, this converter is ideal for industrial power management applications. Secure your supply for demanding environments by buying now for fast delivery and excellent support.
Buy XP Power IHL0205S15 now and experience unmatched reliability and performance in high-isolation power solutions for industrial applications.
Frequently Asked Questions
Where can I buy XP POWER IHL0205S15?
You can click on the BUY or RFQ button to purchase IHL0205S15 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part IHL0205S15?
You can download the IHL0205S15 datasheet or visit the XP POWER website for support.
Who is the manufacturer of IHL0205S15?
XP POWER
