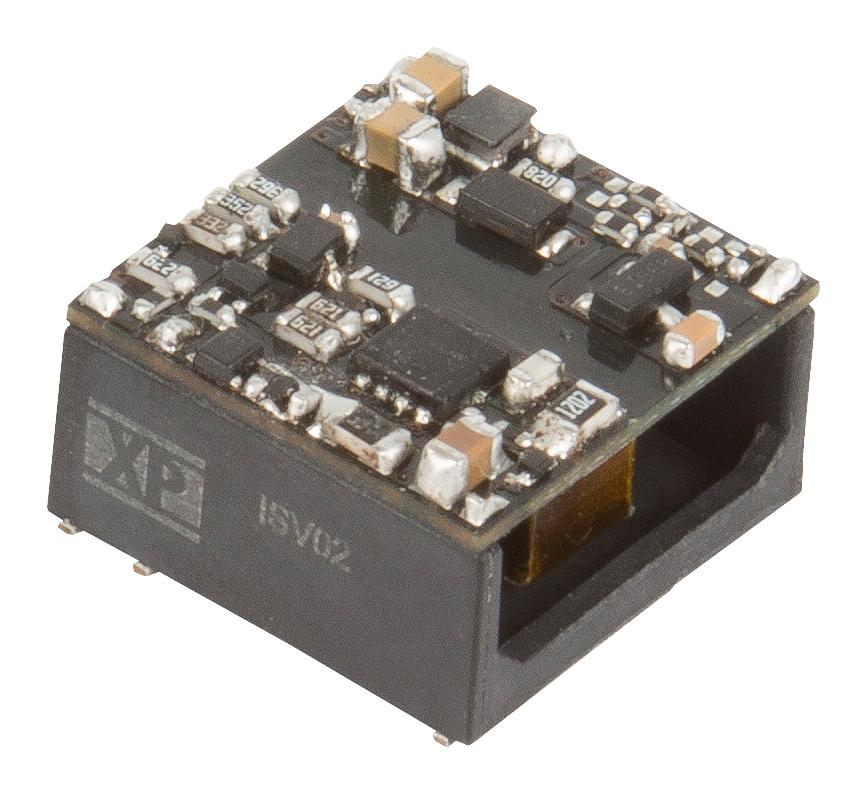

XP POWER ISV0224S05 DC-DC Converter
The ISV02 series is a compact surface-mount DC-DC converter offering cost-effective and high-performance features. It provides 3.0kV isolation, a 4:1 input voltage range, and ensures operation at full load up to 75°C. The series includes options for single or dual regulated outputs and features remote on/off control, high reliability, and short circuit protection. Its ultra-compact SMD package makes it ideal for signal conditioning and voltage matching applications, with tested isolation qualification of 3.0kV and Class A conducted emissions. The product is available in tape and reel packaging and operates reliably from -40°C to +75°C.
XP POWER ISV0224S05 DC-DC Converter Specifications:
- Input Voltage Range: 9.0V to 36.0V
- Output Voltage: 5V, 12V, 15V, 24V, 30V (varies per model)
- Output Current: Up to 2A depending on model
- Isolation Qualification: 3.0kV
- Isolation Resistance: 1% a
- Isolation Capacitance: 25 pF
- Efficiency: Typical 80%
- Operating Temperature: -40°C to +75°C
- Full power operation up to 75°C
- Transient Response: 25% load step, recovery time 500µs
- Short Circuit Protection: Auto recovery, continuous
- Input Reverse Polarity and Overcurrent Protection
- Size: Ultra-compact SMD package
- Operating frequency: As per application notes
- Certifications: CE, UKCA compliance, UL94V-0 case material
- Vibration: Tested per MIL-STD 810F
- Weight: Approx. 2 grams
Buy the XP Power Series DC-DC Converter: ISV0224S05
Purchase the XP Power Series ISV0224S05 DC-DC converter online today and enjoy a dependable power supply solution optimized for signal conditioning and voltage matching. With a compact SMD design, 3.0kV isolation, and a wide 4:1 input range, this module delivers high efficiency up to 80% and operates reliably from -40°C to +75°C under full load. Its features include short circuit protection, remote on/off, and CE compliance. Perfect for industrial and electronic applications, order now for fast delivery and technical support.
Order your XP Power Series ISV0224S05 high-reliability DC-DC converter today and ensure your project benefits from robust, efficient power solutions.
Frequently Asked Questions
Where can I buy XP POWER ISV0224S05?
You can click on the BUY or RFQ button to purchase ISV0224S05 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part ISV0224S05?
You can download the ISV0224S05 datasheet or visit the XP POWER website for support.
Who is the manufacturer of ISV0224S05?
XP POWER
