XP POWER IHL0205S12 DC-DC Converter
The IHL02 series is a 2W DC-to-DC converter housed in a compact SIP7 package, offering dual bipolar outputs suitable for MOSFET and IGBT motor drives. It features high isolation of 5200VDC and a maximum working voltage of 250VAC, making it ideal for power management in industrial environments. The device operates reliably within -40°C to 95°C, providing full load performance at 65°C ambient. With continuous short circuit protection, a high CMTI of 20kV/μs, and robust construction, it ensures safety, durability, and consistent power delivery for demanding applications.
XP POWER IHL0205S12 DC-DC Converter Specifications:
- Power Output: 2 Watts
- Package: SIP7
- Isolation Voltage: 5200VDC (functional insulation)
- Working Voltage: 250VAC / 400VDC
- Input Voltage Range: 13.5V to 165V
- Output Voltage Options: 3.3V, 5V, 12V, 15V, 24V
- Output Current: Up to 72V nominal input models with various currents
- Isolation Resistance: 10Ω
- Isolation Capacitance: 7 pF
- Input Surge Voltage: 20V for 100ms
- Operating Temperature: -40°C to +95°C
- Full load at 65°C ambient temperature
- Efficiency: ~80%
- Case Material: Non-conductive UL94V-0 plastic
- Solder Material: Phosphor bronze with solder coating
- Mounting: Surface-mount with minimal leads
- Frequency: 50-100 kHz
- Certifications: CE, UKCA
- MTBF: 3.3 million hours
- Dimensions: 0.77 x 0.28 x 0.39 inches (19.5 x 7.2 x 10.0 mm)

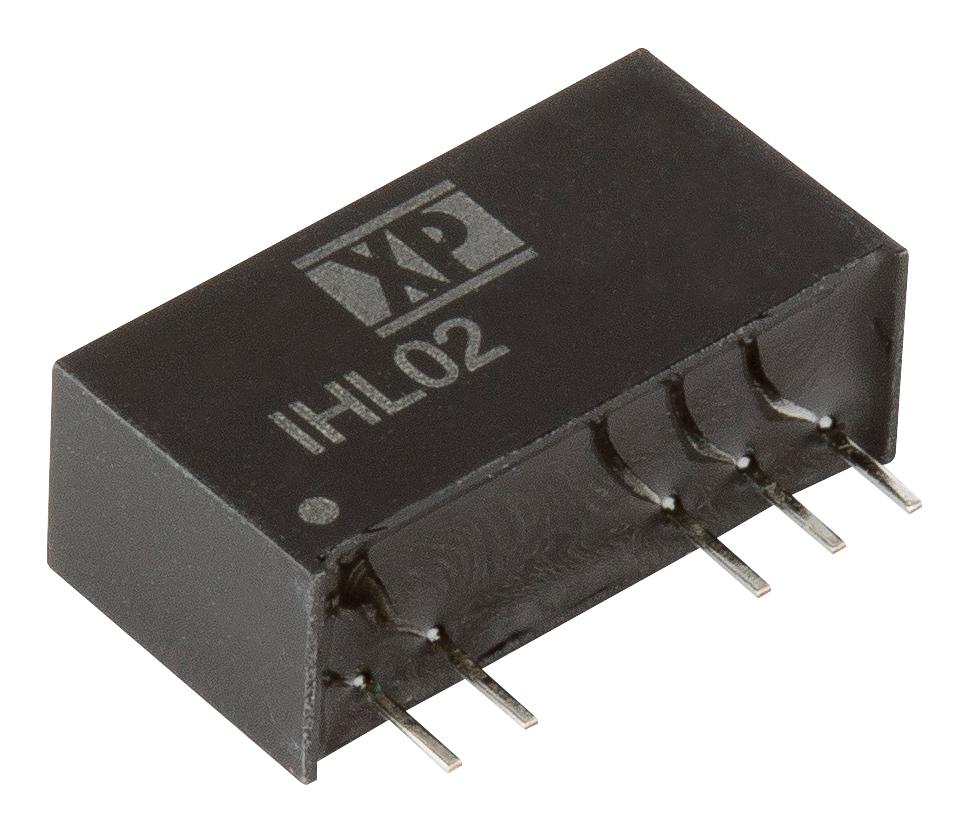

Buy the XP Power IHL0205S12 – Reliable Power Converter for Industrial Applications
Enhance your industrial power management system with the high-reliability XP Power DC-DC converter. Featuring high isolation of 5200VDC, bipolar outputs suitable for MOSFET and IGBT drives, and full load operation at 65°C ambient, this compact module ensures safety and durability in demanding environments. Its robust design includes continuous short circuit protection, operating from -40°C to 95°C, and efficiency around 80%, making it an excellent choice for industrial applications requiring stable and safe power conversion. Order online today for quick, secure delivery.
Buy XP Power IHL0205S12 now and ensure reliable, high-isolation power delivery for your industrial motor drives and power management needs.
Frequently Asked Questions
Where can I buy XP POWER IHL0205S12?
You can click on the BUY or RFQ button to purchase IHL0205S12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part IHL0205S12?
You can download the IHL0205S12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of IHL0205S12?
XP POWER
