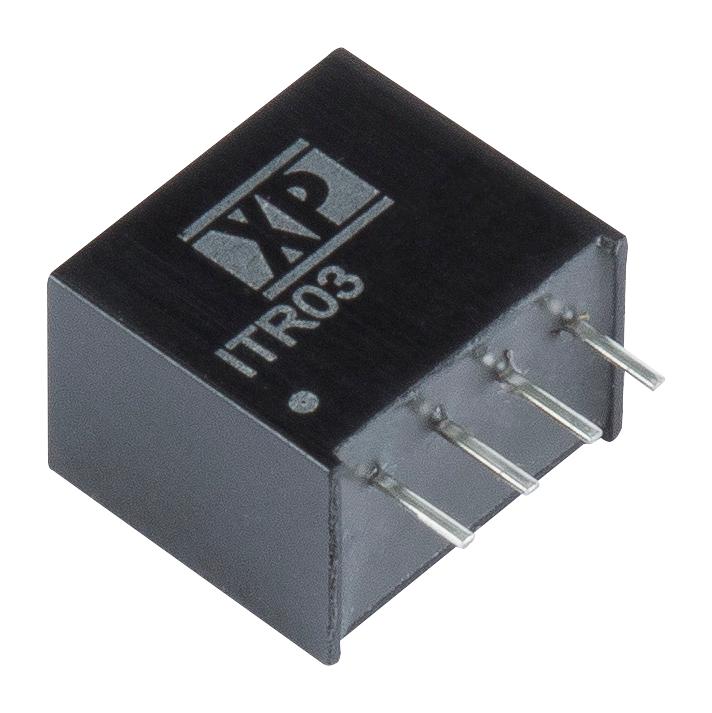

XP POWER ITR0305S05 DC-DC Converter
The ITROS Series is a compact, 3W isolated DC-DC power module designed for industrial applications. It features unregulated single outputs ranging from 5V, 12V, to 24V DC, with a 3.0kVDC input/output isolation and high efficiency of up to 91%. Built in a robust encapsulated SIP package, it operates reliably from -40°C to +100°C, ensuring consistent performance in demanding environments. The series complies with EN55032 Class B, with a power density of 59 W/in³, and offers extensive certifications, making it ideal for industrial automation, control systems, and embedded applications.
XP POWER ITR0305S05 DC-DC Converter Specifications:
- Input Voltage Range: 10.8 to 132 VAC / 216 to 26.4 VDC, depending on model
- Output Voltage: 5V, 12V, 15V, or 24V DC, various models available
- Output Current: up to 600mA depending on model
- Efficiency: up to 91%
- Isolation Voltage: 3000 VDC
- Operating Temperature Range: -40°C to +100°C
- Full Power Operating Temp: up to +85°C
- Dimensions: 0.46 x 0.38 x 0.29 inches (11.8 x 9.66 x 7.5 mm)
- Input/Output Capacitance: up to 8200 μF depending on model
- Switching Frequency: 40-70 kHz
- Humidity and environmental conditions suitable for industrial environments
- Safety and EMC compliance: EN61000-4-2, EN61000-4-3, EN55032 Class B
- Construction: Non-conductive black plastic case with silicon potting
- MTBF: over 6.7 million hours as per MIL-HDBK-217F
Buy the XP Power ITR0305S05 – Reliable 3W DC-DC Converter for Industrial Applications
Purchase the XP Power ITR0305S05 series DC-DC converter online today to enhance your industrial equipment with a reliable, compact power solution. Featuring high efficiency and robust construction, this 3W module offers wide input/output voltage options, excellent isolation, and operation across a -40°C to +100°C temperature range. With certifications for industrial standards and a design for demanding environments, ordering online guarantees quick delivery and consistent quality for automation systems, control panels, and embedded applications.
Order your XP Power Series ITR0305S05 today and ensure your industrial projects benefit from dependable, efficient power solutions.
