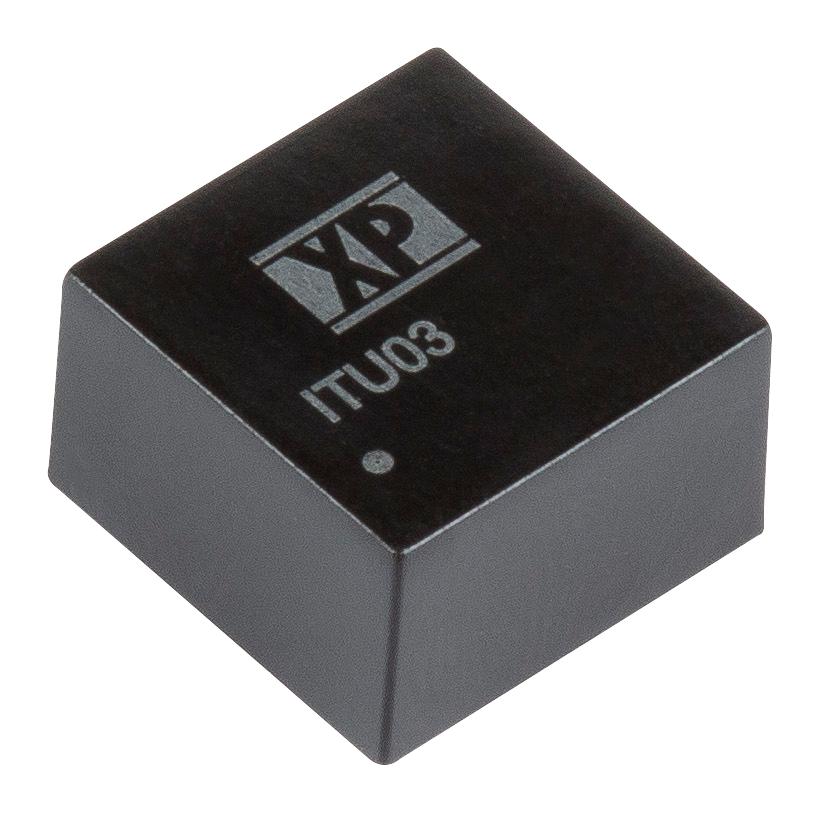

XP POWER ITU0324S05 DC-DC Converter
The ITU series offers a compact 3W DC-DC converter with efficient regulation, wide input voltage ranges, and robust encapsulated DIP8 design. Suitable for industrial applications, it features fixed and adjustable outputs from 3.3V to 30VDC, with remote on/off, short circuit protection, and high efficiency up to 84%. The converter supports an operating temperature from -40°C to +80°C, has a 1.6kVDC isolation, and assures reliability with an MTBF exceeding 820,000 hours. Ideal for power regulation in industrial, automation, and control systems needing compact and reliable power modules.
XP POWER ITU0324S05 DC-DC Converter Specifications:
- Input Voltage Range: 4.5 to 18V, 9 to 36V, 18 to 75VDC
- Output Voltage Options: 3.3V to 30VDC, regulated to 1% accuracy
- Output Current: up to 700mA depending on model
- Power: 3 Watts
- Efficiency: up to 84%
- Isolation Voltage: 1.6kVDC input/output
- Operating Temperature: -40°C to +80°C, full power up to +70°C
- Case Material: Non-conductive black plastic, DIP8 encapsulated
- Dimensions: 0.55 x 0.55 x 0.32 inches (14.0 x 14.0 x 8.1 mm)
- MTBF: >820,000 hours (MIL-HDBK-217F, +25°C GB)
- Protection: Short circuit, remote On/Off
- Compliance: EN55032, CE, UKCA
- Surge and ESD Immunity: EN61000-4-5, EN61000-4-2
Buy the XP Power ITU0324S05 – Reliable Industrial DC-DC Converter for Power Systems
Purchase the XP Power ITU0324S05 series DC-DC converter online today for efficient power regulation in industrial controls. Its compact design, wide input/output voltages, remote On/Off, and high efficiency make it ideal for demanding environments. Crafted with robust encapsulation, it ensures reliable operation from -40°C to +80°C, supporting your automation and power management needs. With over 820,000 hours MTBF, this converter guarantees long-term durability and performance, streamlining your project development and maintenance through easy online procurement.
Order your XP Power Series ITU0324S05 today and give your industrial power projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy XP POWER ITU0324S05?
You can click on the BUY or RFQ button to purchase ITU0324S05 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part ITU0324S05?
You can download the ITU0324S05 datasheet or visit the XP POWER website for support.
Who is the manufacturer of ITU0324S05?
XP POWER
