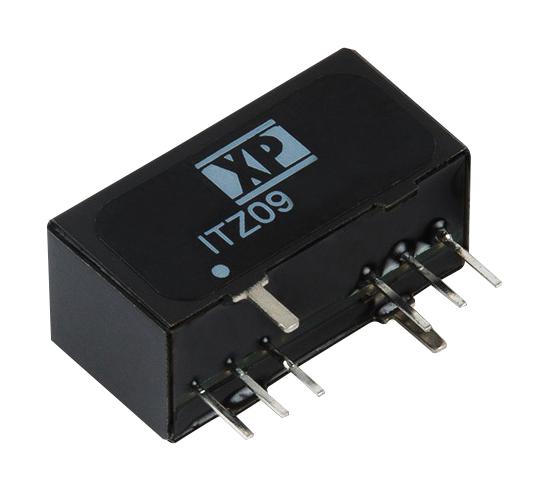

XP POWER ITZ0948S09 DC-DC Converter
The ITZ0948S09 is a compact 9-watt DC-DC converter designed for efficient power conversion in industrial and automation applications. Featuring an ultra-compact SIP-8 package, it supports both single and dual outputs with a 4:1 input voltage range from 18V to 75V, making it ideal for demanding environments. It offers 1500 VDC isolation, fully regulated outputs, and operates reliably within temperatures from -40°C to +85°C. With no minimum load required and remote On/Off functionality, this converter ensures stable performance and long-term durability in demanding electrical systems.
XP POWER ITZ0948S09 DC-DC Converter Specifications:
- Input Voltage Range: 18V to 75V (4:1 range)
- Output Voltage: 33V, 24V nominal (see model ratings)
- Output Power: 9 Watts
- Isolation Voltage: 1500 VDC
- Operating Temperature: -40°C to +85°C
- Efficiency: Up to 88%
- Switching Frequency: 400/500 kHz
- Remote On/Off: Yes, controlled by pin 3
- No Minimum Load: Yes, fully regulated output
- Dimensions: 0.86 x 0.38 x 0.44 inches (21.9 x 9.6 x 11.2 mm)
- Weight: Approximately 0.013 lbs (5.9 grams)
- Output Ripple & Noise: 50 mV pk-pk
- Case Material: Surface-mount SIP-8 package
- Cooling: Natural convection
- Protection: Continuous short circuit with auto recovery
- Storage Temperature: -55°C to +125°C
Buy the Buy XP Power DC-DC Converter Part Number ITZ0948S09 Online
Order the XP Power DC-DC Converter now to ensure your industrial systems remain powered with high efficiency and reliability. This compact 9-watt converter features a wide input range from 18V to 75V, supports dual outputs, and provides 1500 VDC isolation for safe and stable operation. Its fully regulated output ensures consistent voltage levels, while the absence of a minimum load makes it suitable for various applications. Designed for continuous operation in temperatures from -40°C to +85°C, it is ideal for demanding industrial environments. Purchase online today for fast delivery and long-lasting performance.
Get XP Power ITZ0948S09 today—designed for high efficiency, compact size, and reliable industrial power conversion.
