XP POWER JHM2012S12 Medical Power Module
The JHM20 series of DC-DC modules offers a compact and reliable power supply designed specifically for medical applications. Certified to international safety standards including IEC 60601-1, these modules feature regulated outputs from 5V to 30V DC, with options for single or dual outputs, and include output voltage trim of ±10%. They support a 2:1 input voltage range, have a small 2 x 1-inch PCB footprint, and provide reinforced isolation of 4kVAC. These modules also support 2x MOPP at 250VAC, low leakage current of 2.5 μA, and come with short circuit and overload protections, making them ideal for sensitive medical equipment.
XP POWER JHM2012S12 Medical Power Module Specifications:
- Input Voltage Range: 9-75 VDC
- Output Voltage: 5-30 VDC, adjustable ±10%
- Output Current: Up to 3500 mA (5V), 1750 mA (12V), 850 mA (15V)
- Efficiency: Up to 88%
- Isolation Voltage: 4kVAC with reinforced safety
- Power Density: ~25 W/in³
- Operating Temperature: -40°C to +80°C, derating above 60°C
- Dimensions: 2 x 1 inches (50.8 x 25.4 mm)
- Weight: 30 g (0.066 lbs)
- Certifications: IEC 60601-1 3rd Edition, UL, CSA, TUV
- Leakage Current: 2.5 µA patient leakage
- Insulation: Reinforced, 4kVAC
- Protection: Short circuit, overload, overvoltage
- Switching Frequency: 250 kHz
- Cooling: Natural convection
- Case Material: Non-conductive UL94V-0 plastic

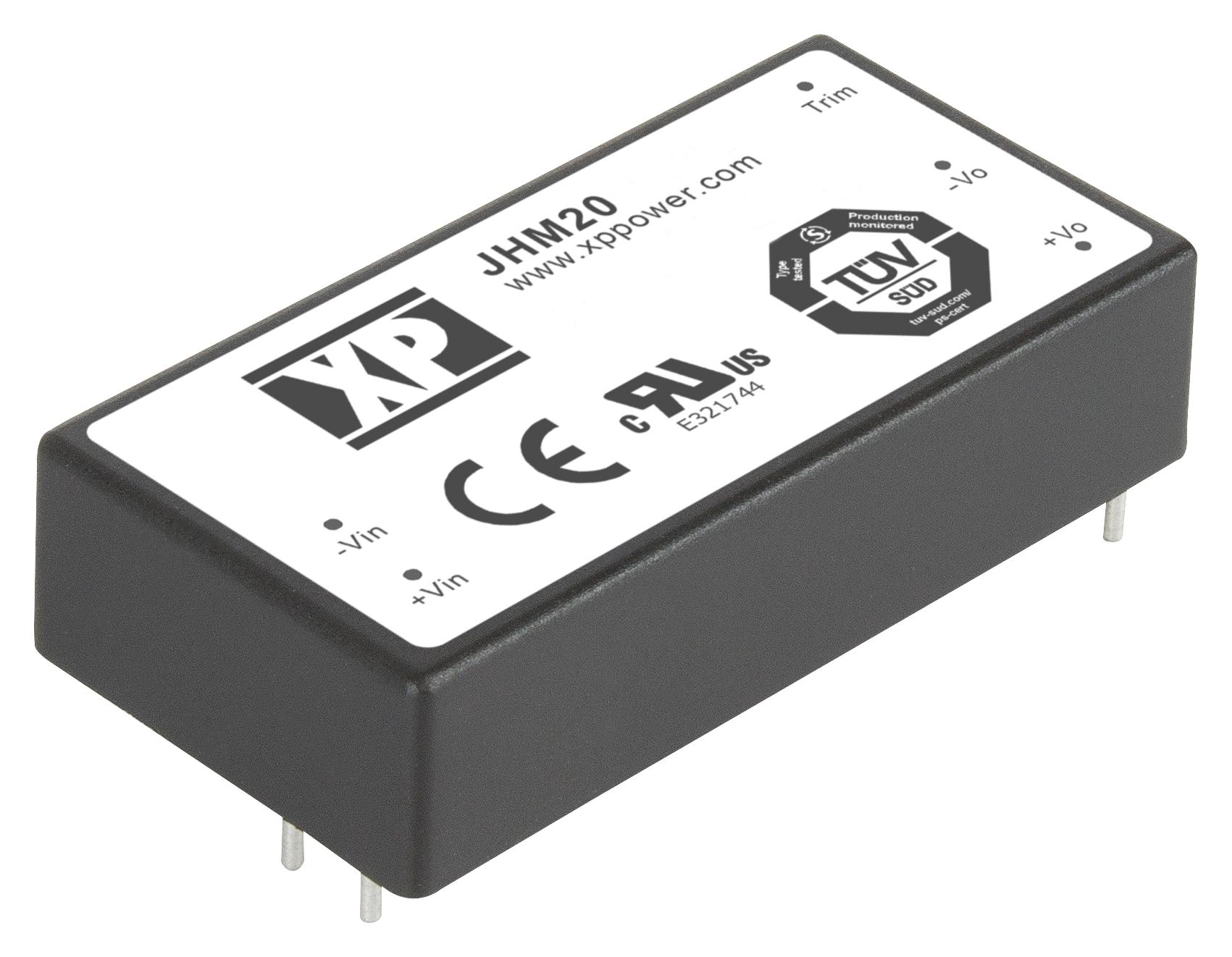

Buy the Buy XP Power JHM20 Series DC-DC Converter Part Number JHM2012S12 Online
Purchase the XP Power JHM20 Series DC-DC converter online today for your medical projects. With certified safety standards, reinforced isolation, low leakage current, and adjustable outputs up to 30V, this compact module guarantees reliable power. Perfect for medical devices requiring high safety, low patient leakage, and efficient regulation. Its small footprint and robust design make it ideal for space-constrained medical environments, ensuring your equipment operates safely and consistently with protection features like short circuit and overload protection. Buy now and enhance your medical device power infrastructure.
Order your XP Power JHM20 Series JHM2012S12 medical power module today and ensure reliable, safe power for your critical medical equipment.
Frequently Asked Questions
Where can I buy XP POWER JHM2012S12?
You can click on the BUY or RFQ button to purchase JHM2012S12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part JHM2012S12?
You can download the JHM2012S12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of JHM2012S12?
XP POWER
