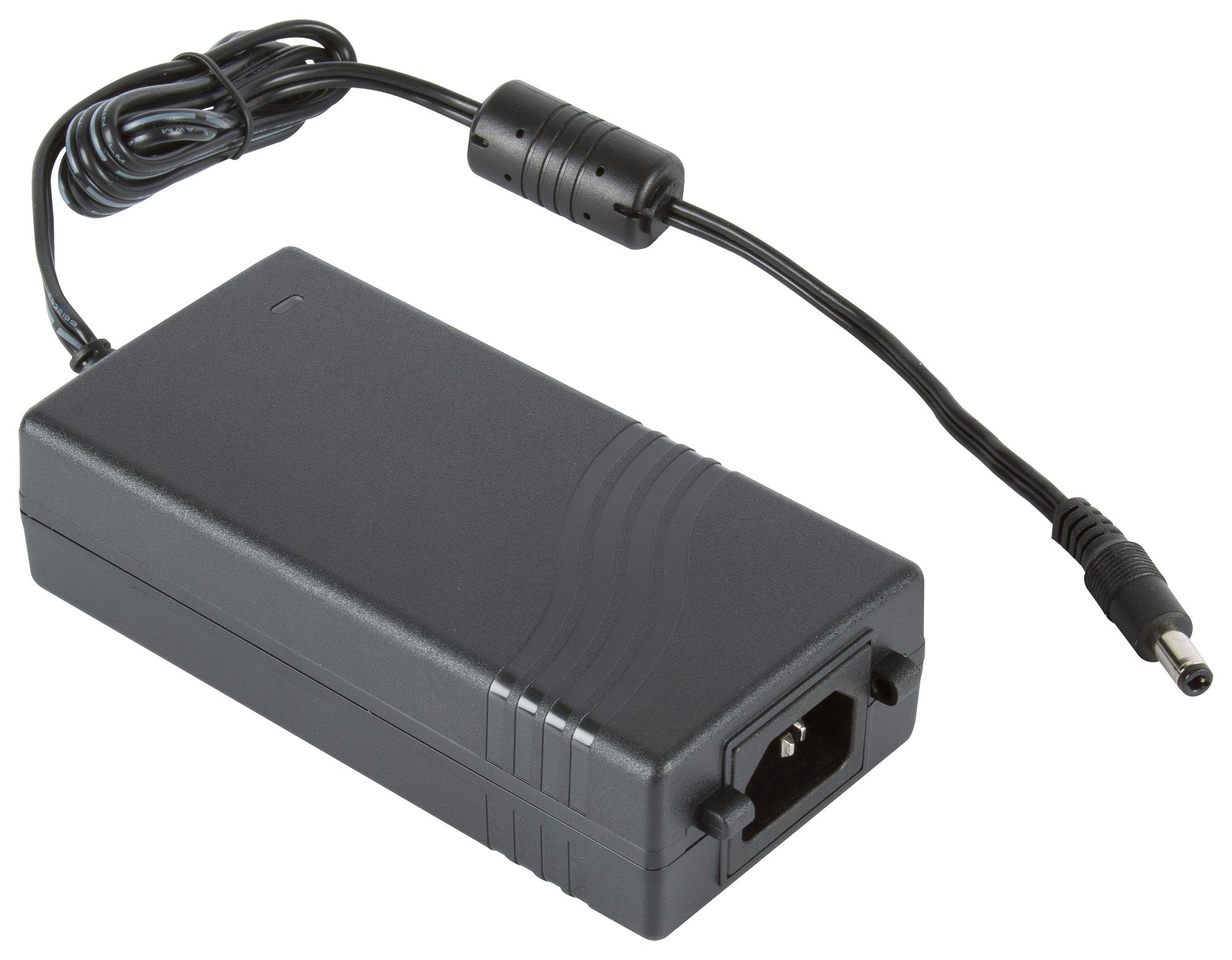

XP POWER AKM45US12 AC-DC Power Supply
The AKM45 series of desktop AC-DC power supplies deliver high efficiency and low no-load power consumption, compliant with medical, healthcare, and IT standards. Featuring an input voltage range of 80 to 264VAC, they support output voltages from 9V to 48VDC and operate efficiently within a temperature range of 0°C to +60°C. These compact, IEC320-C8 or C14 inlet models offer ingress protection of IP22, with various ratings up to 40.5W, suitable for industrial and medical applications. Certifications include medical EMC, safety, and energy efficiency Level VI compliance, with a 3-year warranty for reliable performance.
XP POWER AKM45US12 AC-DC Power Supply Specifications:
- Input Voltage: 80 to 264 VAC
- Input Frequency: 47 to 63 Hz
- Input Current: 1.3 A at 230 VAC
- Inrush Current: 100 A
- No Load Power: 75 mW
- Output Voltage: 9.0V
- Output Current: 4.50 A
- Output Power: 40.5 W
- Efficiency: 89.8%
- Dimensions: 4.82 x 2.02 x 1.24 inches (122.4 x 51.4 x 31.5 mm)
- Operating Temperature: 0°C to +60°C
- Ingress Protection: IP22
- Safety Standards: IEC/EN 60601-1-11, UL, CSA, EN 60601-1-2
- Isolation: Input to Output 1500 VAC
- Switching Frequency: 24-70 kHz
- Weight: Approximately 150 grams
- Cooling: Natural convection
- Shock Resistance: 1 m drop onto concrete on each axis
- Vibration: 2g, 0.3 decades/min, 15 mins per axis
Buy the XP Power Series AC-DC Power Supply: AKM45US12
Order the XP Power AKM45US12 online today to experience high efficiency, low power consumption, and reliable performance. Designed for medical, healthcare, and industrial applications, this power supply supports a wide input voltage range of 80 to 264VAC and offers multiple output voltages up to 48VDC. Its compact size, IP22 ingress protection, and compliance with energy efficiency Level VI standards ensure safe, dependable, and energy-efficient operation in demanding environments. Enjoy fast delivery and excellent customer support when you buy this versatile power supply online today.
Get XP Power AKM45US12 today—built for precision, energy efficiency, and long-lasting durability in medical and industrial environments.
