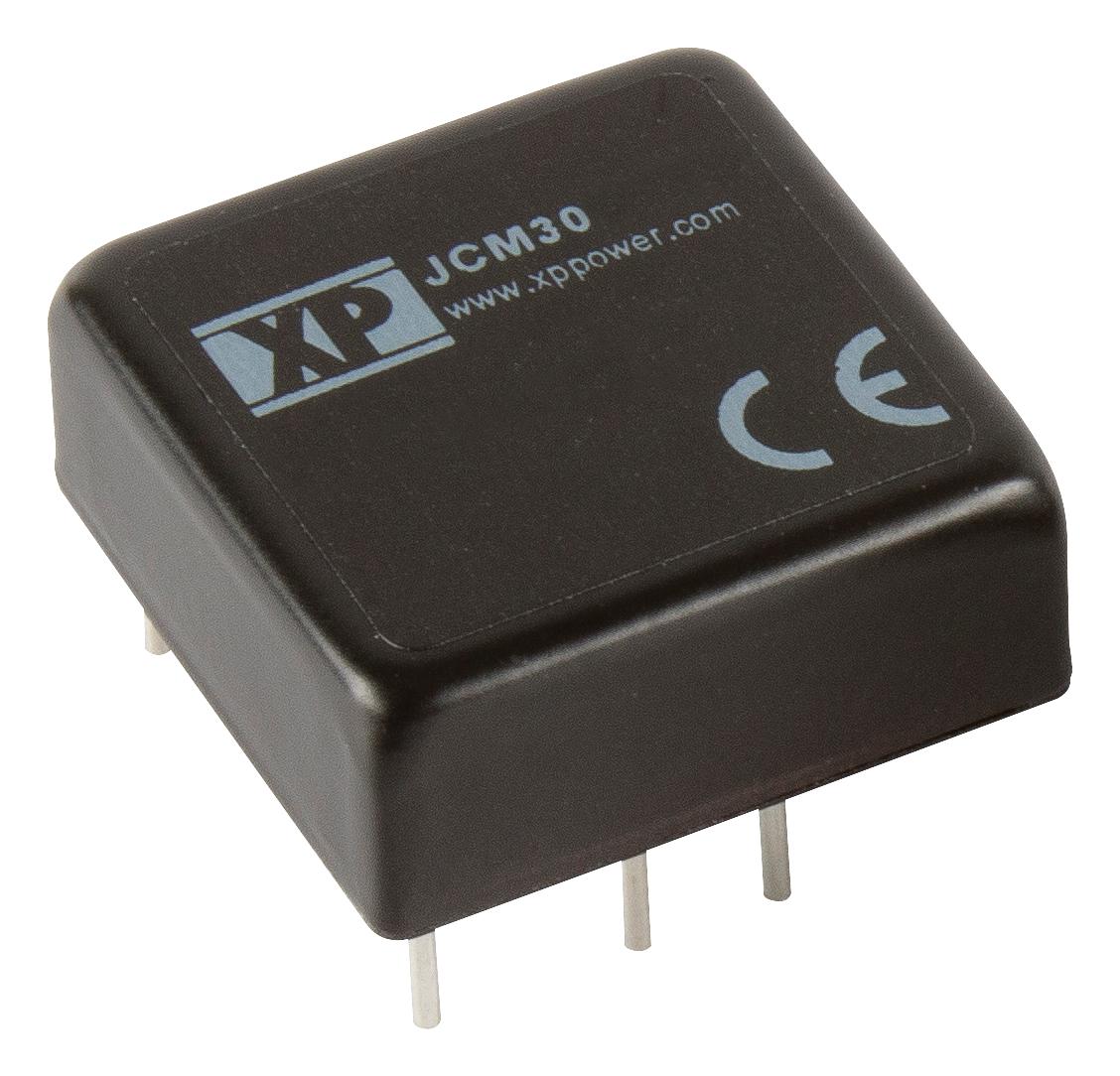

XP POWER JCM3048D15 DC-DC Power Module
The JCM30 series offers compact, high-density DC-DC power modules with output power ranging from 15 to 30 Watts. Packaged in a 1" x 1" metal case, these modules have a 2:1 wide input voltage range compatible with nominal 12V, 24V, or 48VDC sources. They support single outputs of 3.3V, 5V, 12V, and 15V, as well as dual outputs of ±12V and ±15V. The series provides up to 1600VDC isolation and features tightly regulated outputs with a maximum deviation of ±0.5% for line and load, and ±1% for dual outputs. An adjustable output trim of ±10% is available for single models via a trim resistor. With a broad operating temperature range from -40°C to 100°C—derating above 55°C—and optional heat sinks that extend the temperature limit to 85°C at 50% load, these modules are suitable for demanding industrial applications. They include standard remote on/off control and are capable of meeting Class A conducted and radiated emission standards when external components are used.
XP POWER JCM3048D15 DC-DC Power Module Specifications:
- Input Voltage Range: 12V (9-18VDC), 24V (18-36VDC), 48V (36-75VDC)
- Output Power: 15W to 30W depending on model
- Output Voltage: 3.3V, 5V, 12V, 15V or dual configurations ±12V and ±15V
- Isolation Voltage: 1600 VDC
- Maximum Operating Temperature: -40°C to 100°C with derating above 55°C
- Case Dimensions: 1" x 1" x 0.41" (25.4 x 25.0 x 10.4 mm)
- Weight: approx. 19 grams
- Output Regulation: ±0.5% line and load, ±1% dual output
- Output Trim Range: ±10%
- Efficiency: up to 90%
- Remote On/Off Control: Yes
- Isolation Resistance: 100 MΩ
- Ripple & Noise: 75/60 mV pk-pk
- MTBF: 370,000 hours
- Compliance: Meets Class A conducted and radiated emission standards when external filters are used
Buy the Buy XP Power JCM30 Series Part Number JCM3048D15 Online
Purchase the XP Power JCM3048D15 now for reliable, high-performance power conversion in industrial environments. Compact and efficient with wide input range, high isolation, and adjustable output trimming. Perfect for demanding applications requiring stable voltage, low ripple, and robust construction. With a broad temperature range and optional heat sinks, this module ensures long-term durability and optimal performance. Buy online today and benefit from fast delivery, trusted quality, and comprehensive support tailored to your power management needs.
Get XP Power JCM3048D15 today—built for industrial reliability, high efficiency, and precise regulation in demanding applications.
