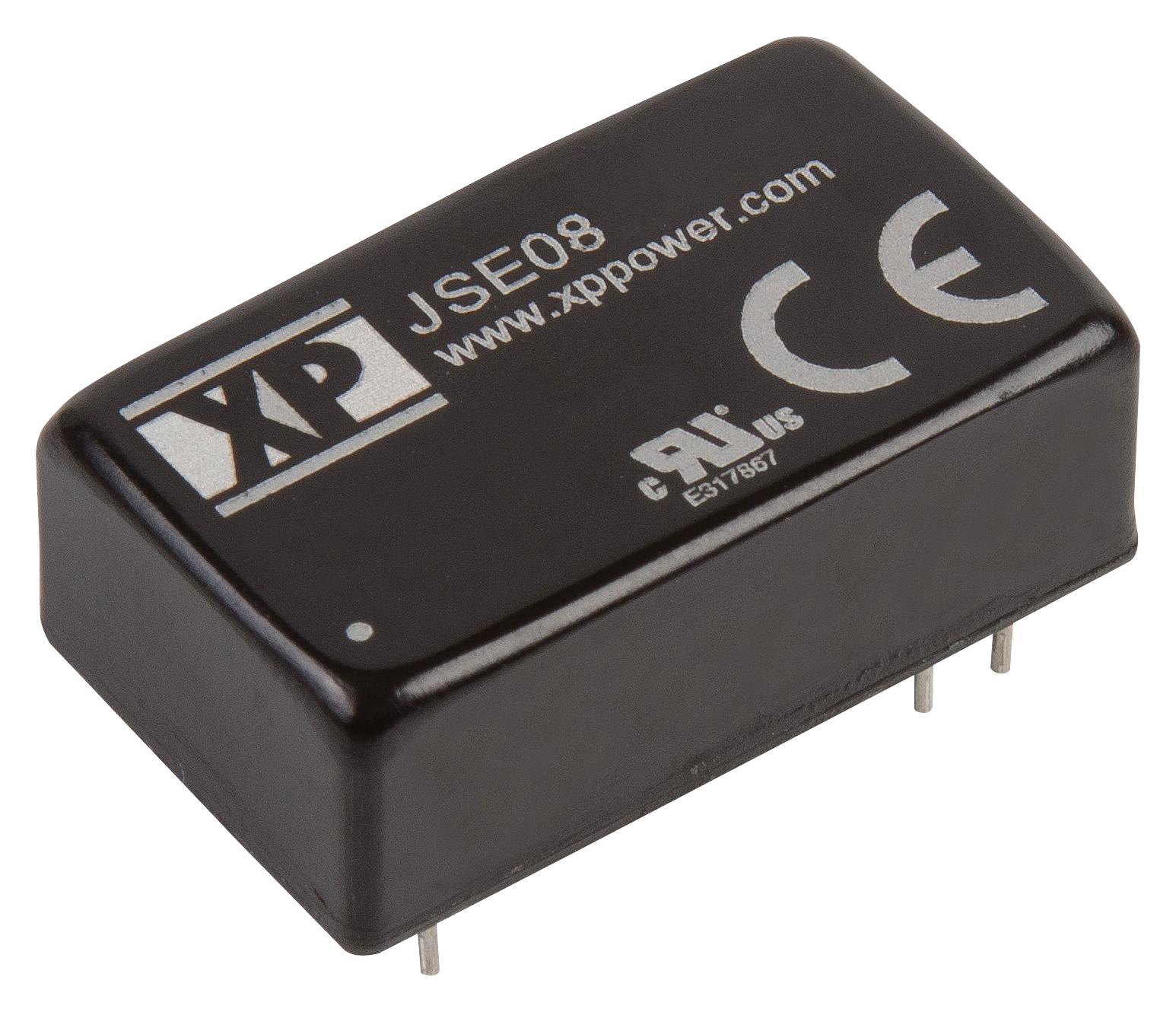

XP POWER JSE0812D12 DC-DC Converter
The JSE08 series is a compact range of 8-watt DC-DC converters housed in an encapsulated DIP16 package with a shielded metal case and Insulated baseplate, suitable for PCB mounting. These high power density modules support a broad 2:1 input voltage range, including 9V–18V, 18V–36V, and 36V–75V, with 21 models offering single and dual outputs such as 3.3V, 5V, 12V, 15V, 24V, and dual ±12V and ±15V configurations. Approved to IEC60950-1 and UL/cUL60950-1 safety standards, they provide 1500VDC isolation, operate efficiently from 78% to 86%, and feature no external filtering to meet Class A EMI limits. Their operating temperature extends from -40°C to 105°C, with derating at 70°C. These converters are ideal for power management and DC conversion applications requiring reliable performance in compact spaces.
XP POWER JSE0812D12 DC-DC Converter Specifications:
- Power: 8 Watts
- Input Voltage Range: 9V–18V, 18V–36V, 36V–75V
- Output Voltages: 3.3V, 5V, 12V, 15V, 24V, ±12V, ±15V
- Efficiency: 78% to 86%
- Isolation: 1500 VDC between input and output
- Operating Temperature: -40°C to 105°C with derating at 70°C
- Case Material: Metal with insulated baseplate in DIP16 package
- Dimensions: 23.8 x 13.7 x 8 mm (0.94 x 0.54 x 0.31 inches)
- Safety Standards: IEC60950-1, UL/cUL60950-1
- No external filtering required for Class A EMI compliance
- Certifications: UL, cUL, IEC safety approvals
- Isolation Resistance: 10 MΩ at 500 VDC
- Cooling: Natural convection
- Weight: Approximate 6.1 grams
- Switching Frequency: 370 kHz
Buy the XP Power Series DC-DC Converter: JSE0812D12
Purchase the XP Power Series DC-DC Converter JSE0812D12 online today and benefit from reliable, high-efficiency power solutions. These 8-watt modules feature multiple output options with regulated voltages, offering excellent isolation up to 1500VDC. Designed in a compact DIP16 package with a sturdy metal case, they support a wide input voltage range, ideal for industrial, power management, and DC conversion applications. With safety approvals, no external filtering required, and operating from -40°C to 105°C, these converters provide dependable performance for demanding environments.
Order your XP Power Series DC-DC Converter JSE0812D12 today and ensure reliable power conversion with high efficiency and safety standards.
Frequently Asked Questions
Where can I buy XP POWER JSE0812D12?
You can click on the BUY or RFQ button to purchase JSE0812D12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part JSE0812D12?
You can download the JSE0812D12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of JSE0812D12?
XP POWER
