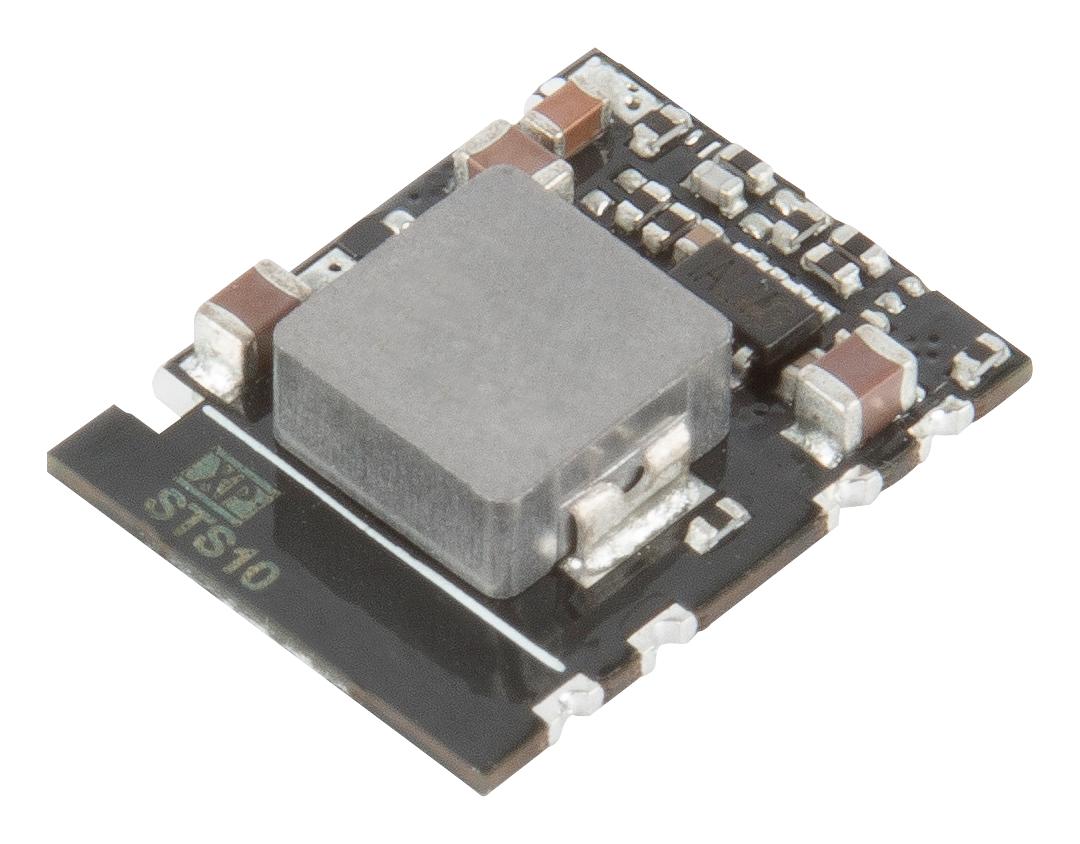

XP POWER STS1024S15 DC-DC Buck Regulator
The STS10 series consists of low-cost, innovative DC-DC buck regulators utilizing SMD technology and high automation for easy manufacturing. These regulators provide regulated single outputs ranging from 1.2V to 15V DC, with a wide input voltage range. They are housed in an SMD-10 package, are non-isolated, and feature output voltage trimming of ±10%. With high efficiency up to 96%, they include features such as remote on/off, continuous short-circuit protection, and do not require heatsinks. Suitable for operation up to +65°C at full load and compliant with Class B emission standards when external components are used.
XP POWER STS1024S15 DC-DC Buck Regulator Specifications:
- Input Voltage Range: 3.0-36.0V DC
- Output Voltages: 1.2V to 15V DC
- Output Current: 1.0A
- Efficiency: Up to 96%
- Operating Temperature: -40°C to +105°C
- Package: SMD-10
- Isolation: Non-Isolated
- Output Voltage Trim: ±10%
- Remote On/Off: Yes
- Protection: Continuous Short Circuit
- Dimensions: 0.60 x 0.47 x 0.15 inches (15.20 x 11.80 x 3.6 mm)
- Compliance: Class B Conducted & Radiated Emissions
Buy the XP Power STS10 – Reliable DC-DC Buck Regulators for Industrial Applications
Purchase XP Power STS10 series DC-DC buck regulators online today. Featuring high efficiency up to 96%, a wide input range, remote on/off, and over-current protection, these compact SMD devices are ideal for industrial and embedded applications. No heatsink required, with comprehensive short-circuit protection, and operate across a temperature range from -40°C to +105°C, ensuring reliable performance in demanding environments. Order now for quick delivery and ensure your power systems are efficient, stable, and compliant with emissions standards.
Get XP Power STS10 series regulators today—built for industrial precision and long-lasting durability.
Frequently Asked Questions
Where can I buy XP POWER STS1024S15?
You can click on the BUY or RFQ button to purchase STS1024S15 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part STS1024S15?
You can download the STS1024S15 datasheet or visit the XP POWER website for support.
Who is the manufacturer of STS1024S15?
XP POWER
