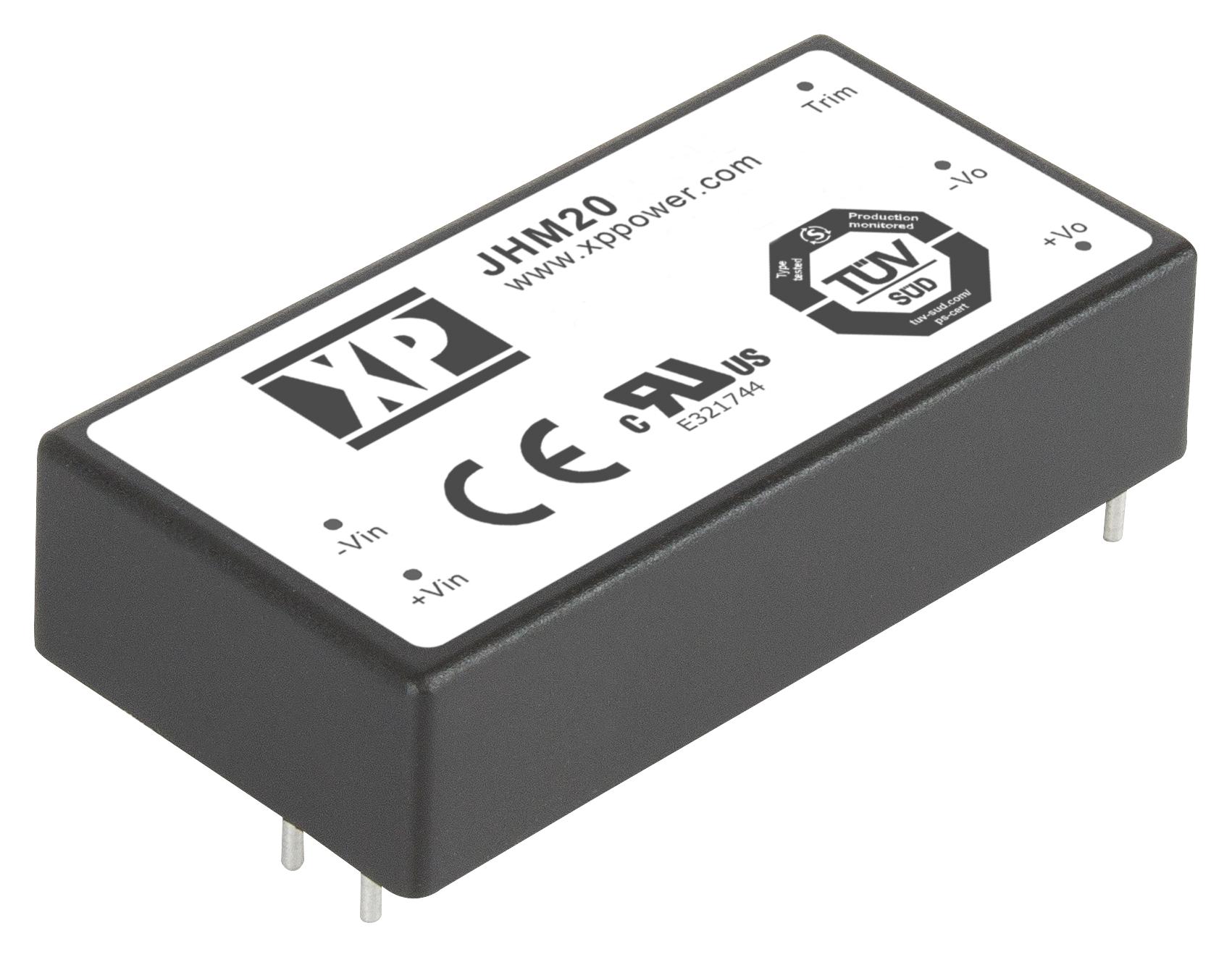

XP POWER JHM2012D15 Medical Power Module
The JHM20 series DC-DC modules are compact, reliable power supplies designed for medical applications, providing regulated single and dual outputs from 5V to 30V DC. They feature ±10% voltage trim for single outputs, support a 2:1 input voltage range, and have a 2 x 1 inch PCB footprint. These modules include reinforced isolation of 4kVAC, double MOPP at 250VAC, and a patient leakage current as low as 2.5 microamps. Certified to IEC 60601-1, 3rd Edition, they meet international medical standards and EN55011 Class A standards without external components.
XP POWER JHM2012D15 Medical Power Module Specifications:
- Input Voltage Range: 9-36 VDC
- Output Voltage: 5V to 30V DC
- Output Current: up to 1750 mA
- Efficiency: up to 88%
- Isolation Voltage: 4kVAC double/reinforced
- Leakage Current: 2.5 microamps
- Dimensions: 2 x 1 inches (50.8 x 25.4 mm)
- Temperature Range: -40°C to +80°C operating
- Certifications: IEC 60601-1, EN55011 Class A, UL, CSA
- Soldering Profile: Sn/Cu/Ni, Max temperature 260°C
- Soldering Time: 3-6 seconds ramp-up, 250°C peak
Buy the XP Power JHM2012D15 – Reliable Medical DC-DC Converter for Industrial Applications
Purchase the XP Power medical power module online today to ensure your medical devices are powered with certified, reliable, and efficient DC-DC solutions. These compact modules meet the strict IEC 60601-1 standards and feature reinforced isolation, low leakage current, and flexible output configurations. Designed for easy PCB integration, they provide regulated outputs from 5V to 30V DC with built-in safety features such as short circuit and overload protection. Ensure your medical equipment operates safely and reliably by choosing this trusted power solution from XP Power.
Get XP Power JHM2012D15 today—built for medical precision, safety, and long-lasting durability in medical device power supplies.
Frequently Asked Questions
Where can I buy XP POWER JHM2012D15?
You can click on the BUY or RFQ button to purchase JHM2012D15 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part JHM2012D15?
You can download the JHM2012D15 datasheet or visit the XP POWER website for support.
Who is the manufacturer of JHM2012D15?
XP POWER
