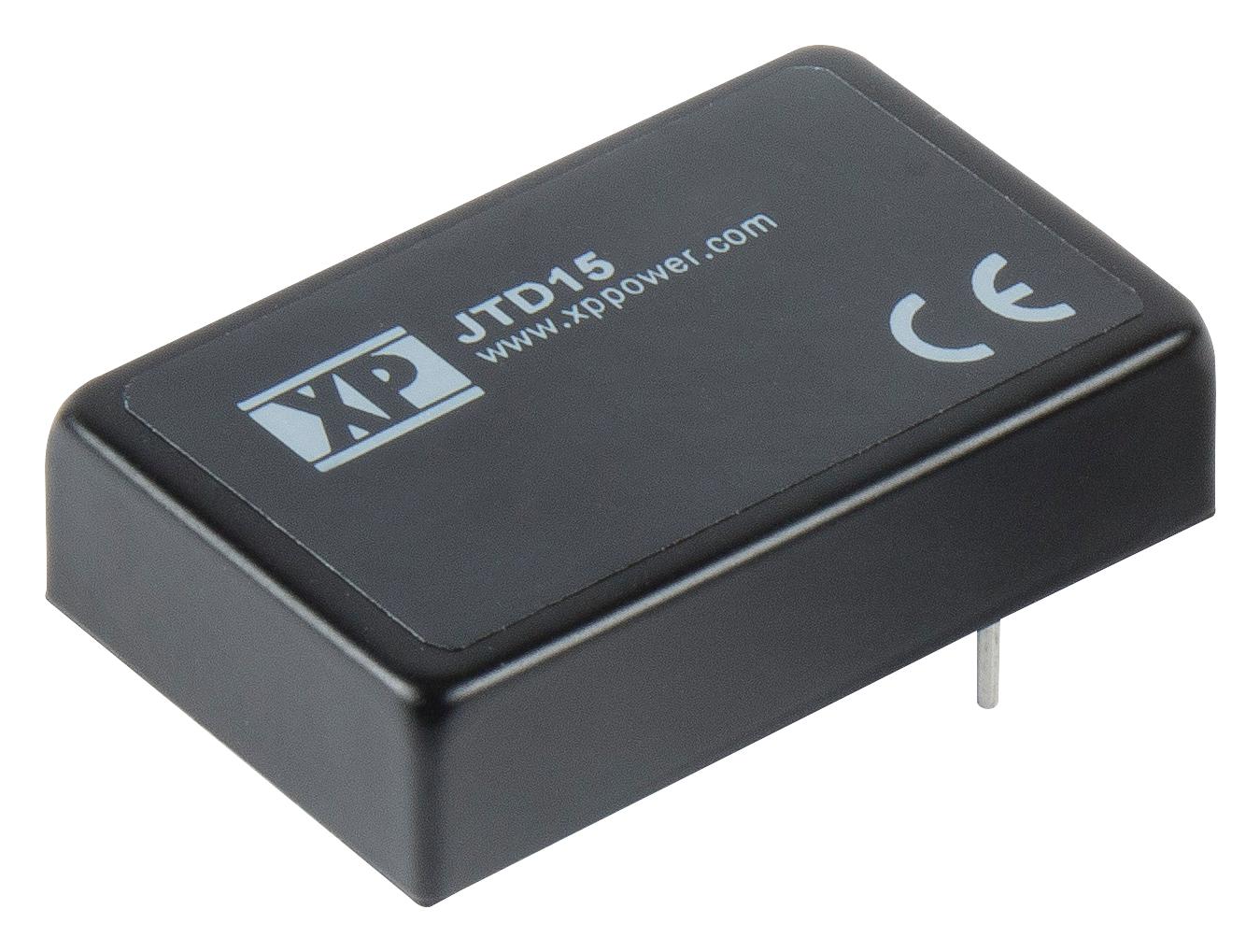

XP POWER JTD1548S12 DC-DC Converter
The JTD1548S12 is a compact 15-watt DC-DC converter featuring a wide input voltage range of 18 to 75 VDC, making it suitable for various industrial and automation applications. It offers dual output voltages of 12.0 V and 12.0 V with high efficiency of 88%, low ripple, and excellent regulation. The converter provides 3000 VDC isolation, operates from -40°C to +100°C, and includes features such as remote on/off, output trimming, and short-circuit protection. Its durable copper case ensures reliable performance in demanding environments, perfect for power supply needs in control systems and electronic equipment.
XP POWER JTD1548S12 DC-DC Converter Specifications:
- Input Voltage Range: 18-75 VDC
- Output Voltage: 12.0 V (dual output)
- Output Current: 1250 mA
- Efficiency: 88%
- Isolation: 3000 VDC
- Operating Temperature: -40°C to +100°C
- Ripple & Noise: 75/60 mV pk-pk
- Start-up Time: 30 ms
- Switching Frequency: 270/330 kHz
- Case Material: Copper with plastic base ULQ4V-0
- Dimensions: 1.6 x 1.0 x 0.41 inches (40.6 x 25.4 x 10.4 mm)
- Weight: Approx. 29 g
- Certification: UL, UL60950-1, 62368-1
- Potting Material: Epoxy
- Full load operation at 80°C ambient temperature
- Reverse Polarity and Short-circuit protection included
Buy the XP Power Series JTD1548S12: 15 Watts DC-DC Converter
Secure your power conversion with the XP Power Series JTD1548S12—an efficient, reliable 15-watt DC-DC converter ideal for industrial, automation, and control system applications. Its dual 12V outputs, high efficiency of 88%, wide input voltage range of 18 to 75 VDC, and excellent isolation make it perfect for demanding environments. Built with durable copper case, it offers remote on/off, output trimming, and short-circuit protection for enhanced safety and flexibility. Order online now for fast delivery and high-performance power solutions.
Order your XP Power Series JTD1548S12 15-watt DC-DC converter today and ensure reliable power supply for your industrial and electronic projects.
Frequently Asked Questions
Where can I buy XP POWER JTD1548S12?
You can click on the BUY or RFQ button to purchase JTD1548S12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part JTD1548S12?
You can download the JTD1548S12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of JTD1548S12?
XP POWER
