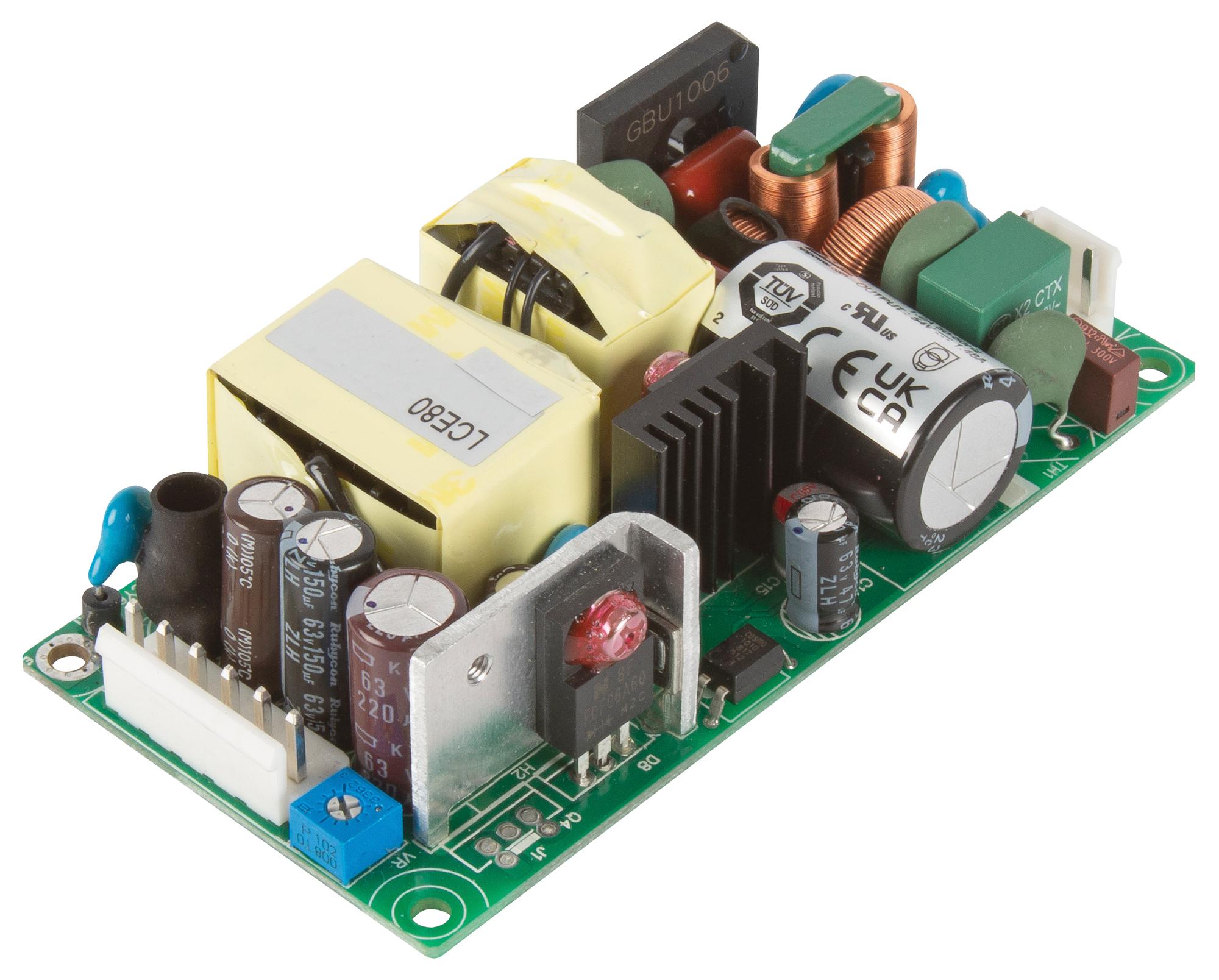

XP POWER LCE80PS05 Power Supply
This power supply operates in constant voltage and constant current modes, making it suitable for lighting and display applications. It features harmonics class C compliance, approvals for ITE and household use, and LPS certification for 12V and above. The unit has a 2-inch by 4-inch footprint and supports both Class I and Class II configurations. It consumes less than 0.5W of power at no load, operates efficiently within a wide input voltage range of 90 to 305VAC, and is convection cooled with a 3-year warranty. Suitable for industrial electronics and LED lighting systems.
XP POWER LCE80PS05 Power Supply Specifications:
- Power: 80W
- Input Voltage Range: 90 to 305VAC
- Input Frequency: 50/60Hz
- Output Voltage: 5.0V
- Output Current: 12.004A
- Ripple & Noise: 50mV
- Efficiency: 85.5%
- Dimensions: 2 inch x 4 inch x 1.10 inch (50.8 mm x 101.6 mm x 27.9 mm)
- Operating Temperature: -40°C to +70°C
- Input Power No Load: Less than 0.5W
- Protection: Overvoltage, Overload, Short Circuit
- Isolation: Input to Output 3000V AC
- Certifications: UL, EN, UKCA, CE, LPS, Class I & II Safety Approvals
- Cooling: Convection cooled
- Weight: Approximately 145g
- Switching Frequency: 86 kHz
- Power Density: 9 W/in³
- Operation Altitude: Up to 5000 m
Buy the XP Power Series LCE80 Power Supply: LCE80PS05
Purchase the XP Power LCE80PS05 power supply online today for reliable performance in lighting, industrial electronics, and display applications. This 80W convection-cooled unit operates efficiently within a wide input voltage range of 90 to 305VAC, ensuring stable constant voltage and current modes. It meets harmonics class C compliance and safety approvals for ITE and household use, with a compact 2x4-inch footprint. Designed for durability, it features overvoltage and short circuit protections, consumes less than 0.5W at no load, and comes with a 3-year warranty. Ideal for energy-efficient lighting and industrial systems.
Get XP Power LCE80PS05 today—built for precision, efficiency, and long-lasting durability in lighting and display systems.
