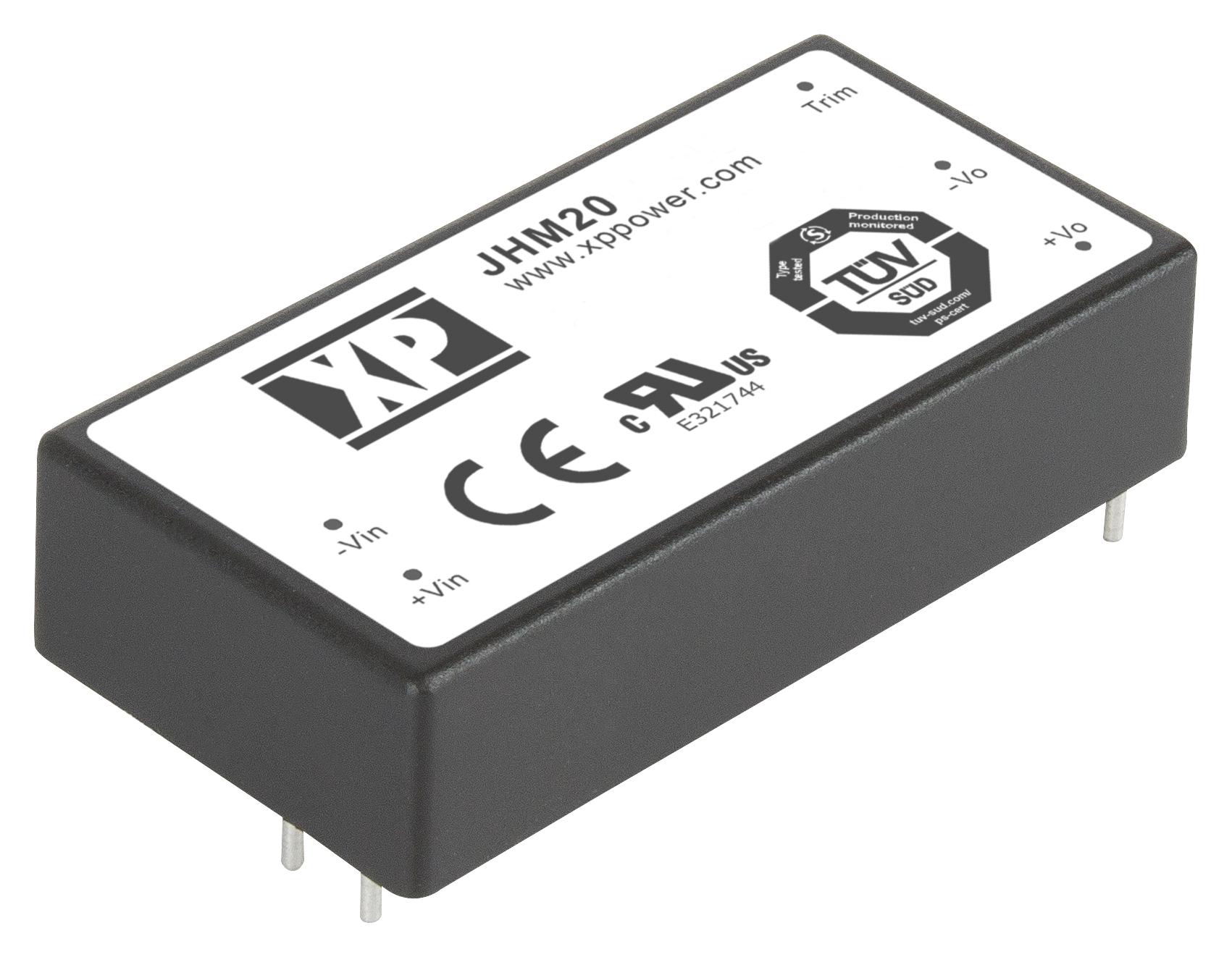

XP POWER JHM2024S12 Medical DC-DC Converter
The JHM20 series of DC-DC modules offers a compact, reliable power solution optimized for medical applications. These modules provide regulated single and dual outputs from 5V to 30V DC, with adjustable trims of ±10% on single outputs. Designed for PCB mounting with a 2 x 1-inch footprint, they support a 2:1 input voltage range and feature reinforced isolation of 4 kVAC. Certified to international medical safety standards, they offer low patient leakage current of 2.5 microamperes, widespread IEC 60601-1 compliance, and EN55011 Class A emission standards without external components, ideal for medical devices requiring safety, efficiency, and compact size.
XP POWER JHM2024S12 Medical DC-DC Converter Specifications:
- Input Voltage Range: 9-18 VDC or 18-36 VDC or 36-75 VDC
- Output Voltage: 5V to 30V, with adjustable trim of ±10% on single outputs
- Output Current: 1750 mA to 3500 mA depending on model
- Efficiency: Up to 88%
- Isolation Voltage: Double/reinforced 4,000 VAC, 2 x MOPP at 250 VAC working voltage
- Leakage Current: 2.5 microamperes
- Operating Temperature: -40°C to +80°C (derating applicable)
- Dimensions: 2 x 1 inches (50.8 x 25.4 mm)
- Weight: Approximate 30 grams
- Certifications: IEC 60601-1, EN55011 Class A, UL, CSA, TUV
- Maximum Input Surge Voltage: 100 VAC for 3 seconds
- Ripple & Noise: 1% pk-pk at 20 MHz bandwidth
- Switching Frequency: 250 kHz
- Operating Environment: Non-condensing humidity, natural convection cooling
Buy the XP Power Series JHM20 Power Supply: JHM2024S12
Order the XP Power JHM2024S12 now to ensure a dependable, medical-grade power supply with regulated dual outputs, reinforced isolation, and low leakage current. This 20W converter meets international safety standards, including IEC 60601-1, making it ideal for medical devices requiring compact size, efficiency, and safety. Its adjustable output voltage, high efficiency, and reinforced electrical isolation ensure optimal operation across a broad temperature range. Purchase online today for fast delivery and trusted quality that supports critical healthcare equipment with consistent, reliable power.
Buy XP Power JHM2024S12 now and experience unmatched reliability and performance in medical-grade power solutions.
