XP POWER JHM2048S12 Medical Power Module
The JHM20 series DC-DC modules offer a compact, reliable power solution tailored for medical applications. They deliver regulated single and dual outputs from 5V to 30VDC, with adjustable voltage trim of ±10%. Supporting a 2:1 input range, these modules feature a 2" x 1" PCB footprint, reinforced isolation of 4kVAC, and meet international standards including IEC60601-1, 3rd Edition. Their design ensures low patient leakage current of 2.5μA, and they operate with efficiency and stability under medical safety requirements, making them ideal for sensitive medical equipment.
XP POWER JHM2048S12 Medical Power Module Specifications:
- Input Voltage Range: 9-36 VDC with support for 2:1 input range
- Output Voltage: 5V to 30V adjustable ±10% with single and dual outputs
- Output Current: Up to 1750 mA, depending on model
- Isolation Voltage: Reinforced 4kVAC (2x MOPP) at 250VAC working voltage
- Efficiency: Up to 88%
- Operating Temperature: -40°C to +80°C
- Dimensions: 2" x 1" x 0.40" (50.8 x 25.4 x 10.2 mm)
- Leakage Current: 2.5μA
- Certifications: IEC60601-1 (medical safety), EN55011 Class A
- Daughter standard compliance: UL, TUV, CSA
- Other features: Short circuit protection, voltage trim ±10%, no external components needed

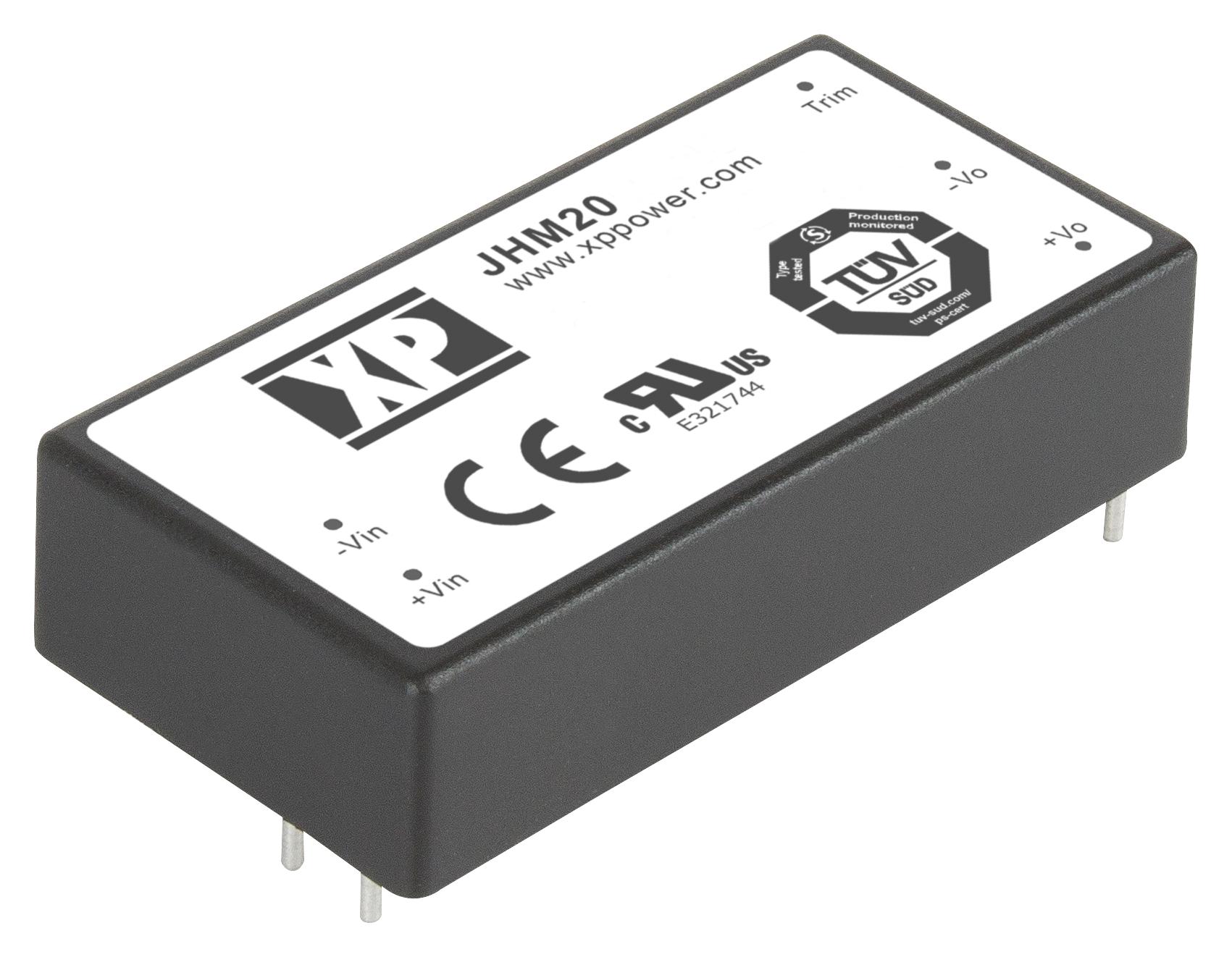

Buy the XP Power Series JHM20 DC-DC Converter: JHM2048S12
Explore the advanced JHM20 Series medical power modules, designed for medical equipment requiring reliable, compact, and safety-compliant power solutions. These converters support a wide input voltage range, feature reinforced isolation of 4kVAC, and deliver adjustable regulated outputs from 5V to 30VDC with high efficiency—up to 88%. Certified to IEC60601-1 standards, they ensure low patient leakage current of only 2.5μA, making them suitable for critical medical devices. Easy to install, with protective features like short circuit protection and voltage trim, they are ideal for medical device manufacturers and engineers seeking dependable power modules.
Buy XP Power JHM2048S12 medical-grade DC-DC converter now and experience unmatched reliability and performance for sensitive medical equipment.
Frequently Asked Questions
Where can I buy XP POWER JHM2048S12?
You can click on the BUY or RFQ button to purchase JHM2048S12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part JHM2048S12?
You can download the JHM2048S12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of JHM2048S12?
XP POWER
