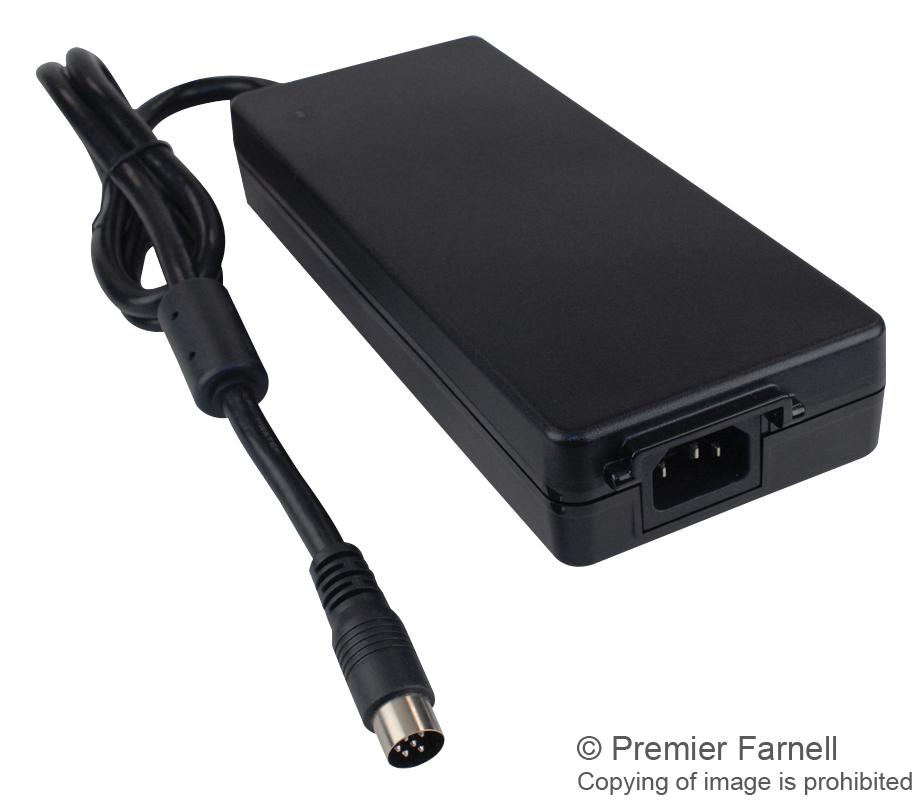

XP POWER AHM250PS12T High-Voltage Power Supply Module
The AHM250 series is a high-efficiency industrial power supply offering power ratings from 210W to 250W, with multiple output voltage options including 12V, 15V, 19V, 24V, and 48V. It features isolation of up to 4000 VAC, a broad input voltage range of 80-264 VAC, and an operating temperature from 0°C to +60°C. Designed for medical and industrial applications, it complies with safety standards like EN60601-1 and IEC 60950, providing reliable performance, minimal no-load power consumption below 0.5W, and built-in overcurrent and overvoltage protections.
XP POWER AHM250PS12T High-Voltage Power Supply Module Specifications:
- Input Voltage: 80-264 VAC
- Efficiency: 92% typical
- Power Rating: 210W, 220W, 240W, 250W
- Output Voltage Options: 12V, 15V, 19V, 24V, 48V
- Output Current: Up to 13.50A for 12V, 12A for 15V, 9.47A for 19V, 7.50A for 24V, 3.75A for 48V
- Isolation: 4000 VAC input to output, 2 x MOPP; 1500 VAC to earth, 1 x MOPP; 500 VAC out to earth, 1 x MOPP
- Input Frequency: 47-63 Hz
- Switching Frequency: 45-200 KHz, variable
- Inrush Current: 70A typical at 115VAC, 120A max at 230VAC
- Power Factor: >0.9 at 115VAC, 60Hz
- Operating Temperature: 0°C to +60°C, derating linearly from 100% power at 25°C
- Storage Temperature: -40°C to +85°C
- Safety & Compliance: EN60601-1, EN61000-3-2, EN61000-3-3, UL60950, cUL, and PSE certified
- Protection Features: Overcurrent, overvoltage, overtemperature, short circuit, and secondary overload protections
- Dimensions: Approximately 7.8 x 4.3 x 2.4 inches (199 x 109 x 62 mm)
- Weight: Ranges from 0.9 to 1.4 lbs depending on model
- Cooling: Convection cooled
- Environmental: Humidity 5-95% RH, non-condensing, operating altitude up to 3000 m
Buy the AIOE 250W Series – Reliable Power Supply for Industrial Applications
Experience dependable power with our high-efficiency industrial power supply module rated from 210W to 250W. Designed for medical, automation, and industrial equipment, it ensures reliable operation with multiple voltage options like 12V, 15V, 19V, 24V, and 48V. Features include low no-load power consumption below 0.5W, wide input voltage range, and comprehensive safety certifications. Its robust protections against overcurrent, overvoltage, and temperature fluctuations make it an ideal choice for demanding applications. Purchase online now for fast delivery and factory-direct pricing.
Get AIOE 250W Power Supply today—built for precision and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy XP POWER AHM250PS12T?
You can click on the BUY or RFQ button to purchase AHM250PS12T from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part AHM250PS12T?
You can download the AHM250PS12T datasheet or visit the XP POWER website for support.
Who is the manufacturer of AHM250PS12T?
XP POWER
