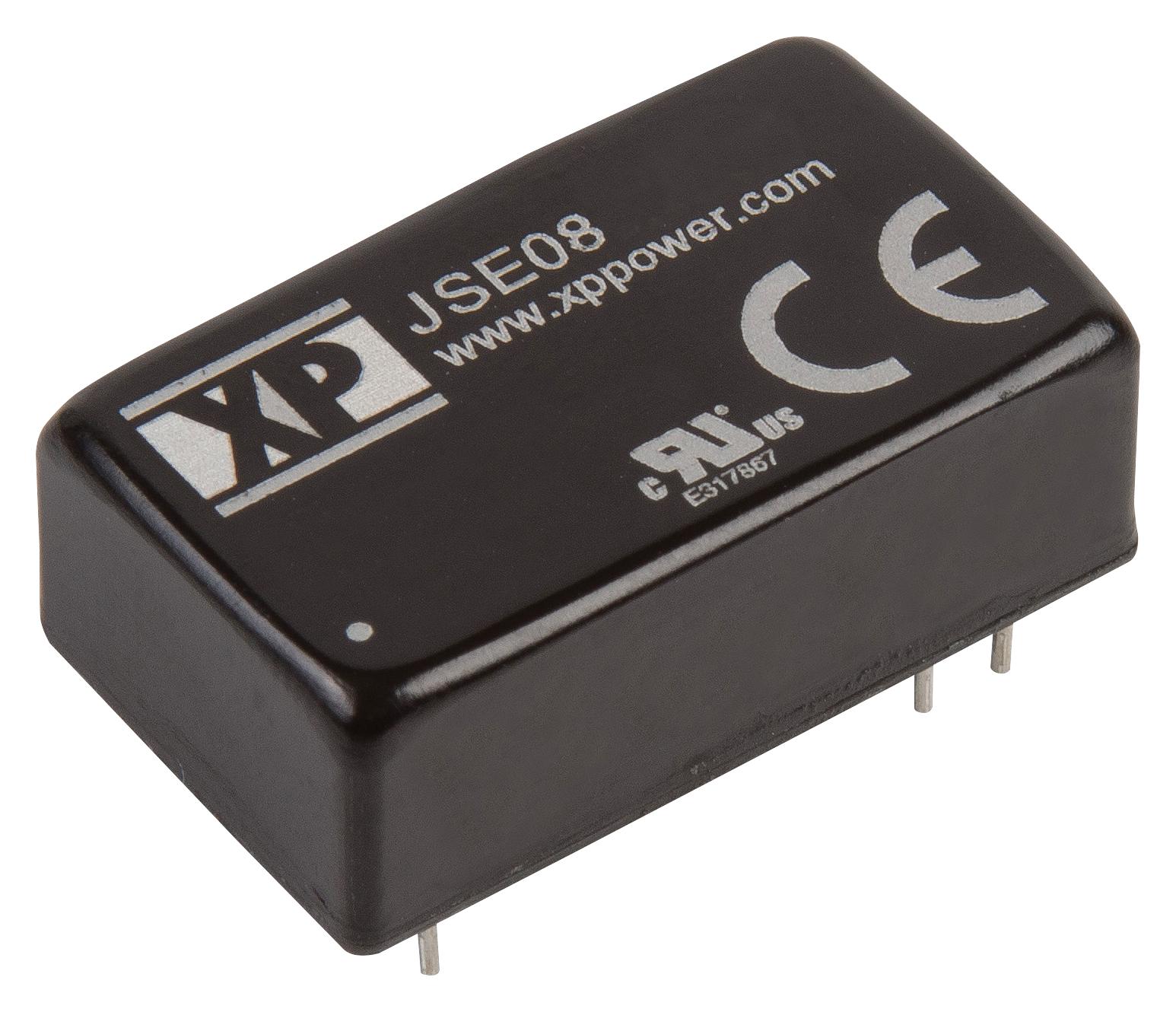

XP POWER JSE0848S12 DC-DC Converter
The JSE0848 series consists of 8-watt DC-DC converters in a compact, encapsulated DIP16 package with high power density and excellent efficiency up to 86%. These rugged converters feature a metal case measuring 0.94 x 0.54 x 0.31 inches (23.8 x 13.7 x 8 mm), supporting Nominal input voltages of 12V, 24V, or 48V with a versatile 2:1 input range. They offer highly regulated single and dual outputs, including 3.3V, 5V, 12V, 15V, 24V, and dual ±12V or ±15V, suitable for demanding industrial and control applications. Certified to IEC60950-1 and UL/cUL standards, with 1500VDC isolation, they operate reliably from -40°C to 105°C. Their EMI performance meets Class A conducted limits, making them ideal for power management and DC conversion in complex environments. These models feature durable construction, insulation, and safety features for long-term performance.
XP POWER JSE0848S12 DC-DC Converter Specifications:
- Power Output: 8 Watts
- Input Voltage Range: 9V–18V, 18V–36V, 36V–75V with 2:1 range
- Input Surge: 1s at 24V nominal
- Input Undervoltage Lockout: Yes, at 34V/36V thresholds
- Isolation: 1500VDC input to output
- Efficiency: 78% to 86%
- Operating Temperature: -40°C to 105°C, derating above 70°C
- Storage Temperature: -55°C to +125°C
- Case Dimensions: 0.94 x 0.54 x 0.31 inches (23.8 x 13.7 x 8 mm)
- Housing: Metal case with shield, insulated baseplate
- Compliance: IEC60950-1, UL/cUL60950-1 safety standards
- Isolation Resistance: 10 MΩ at 500 VDC
- Isolation Capacitance: 500 pF
- Switching Frequency: 370 kHz
- EMC Standards: EN61000-4-2, -4-3, -4-4, -4-5, -4-6
- Pin Material: Tinned Copper
- Cooling: Natural convection
- Weight: Approximately 6.1 g
Buy the XP Power Series DC-DC Converter: JSE0848S12
Discover the compact and reliable 8-watt DC-DC converter from XP Power. With high efficiency up to 86%, wide input voltage ranges, and certified safety standards, it's ideal for demanding power management applications. The JSE0848 series features a durable metal case, excellent insulation, and EMI compliance, ensuring long-term, stable operation across a temperature range of -40°C to 105°C. Purchase online today to benefit from superior performance, certified safety, and a trusted brand guaranteed to enhance your power conversion needs with ease and confidence.
Buy XP Power JSE0848S12 now and experience unmatched reliability and high-performance power conversion in a compact design.
Frequently Asked Questions
Where can I buy XP POWER JSE0848S12?
You can click on the BUY or RFQ button to purchase JSE0848S12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part JSE0848S12?
You can download the JSE0848S12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of JSE0848S12?
XP POWER
