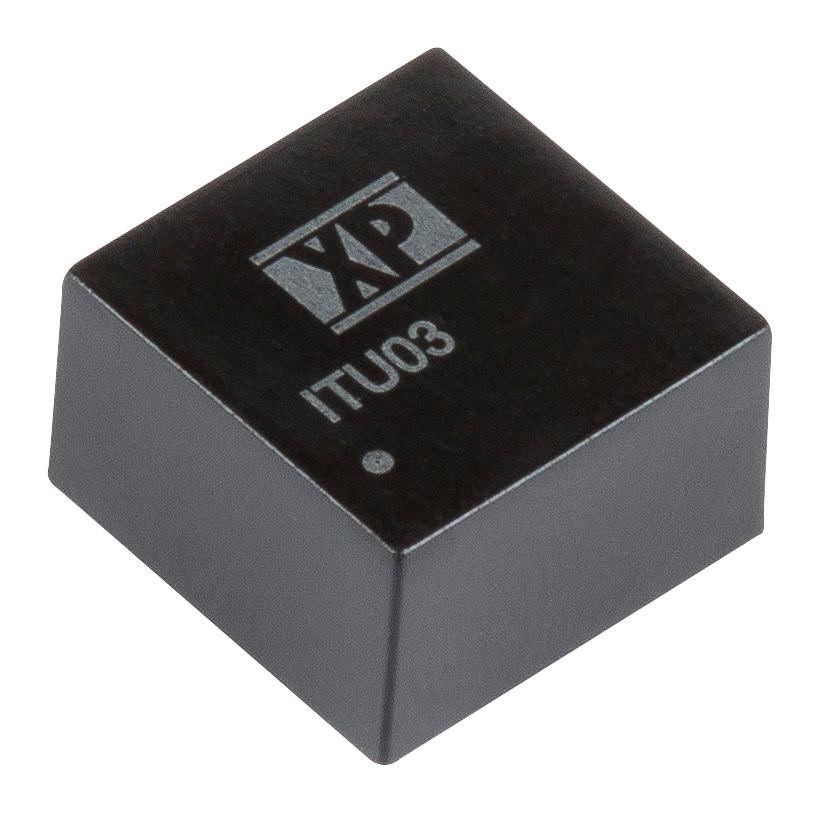

XP POWER ITU0348S12 DC-DC Converter
The ITU series DC-DC converter offers a compact 3W power module ideal for industrial applications, featuring a wide input voltage range from 4.5V to 75VDC and regulated outputs from 3.3V to 30VDC. It provides high efficiency up to 84%, robust short-circuit protection, and remote On/Off control, ensuring reliable operation within an industrial temperature range of -40°C to +80°C. Encapsulated in a DIP8 package, this converter is suitable for space-constrained environments, delivering consistent power with minimal regulation deviation and high MTBF for long-term durability.
XP POWER ITU0348S12 DC-DC Converter Specifications:
- Input Voltage Range: 4.5V to 75VDC
- Output Power: 3 Watts
- Output Voltage: 3.3V to 30VDC fixed or regulated outputs
- Efficiency: up to 84%
- Isolation Voltage: 1.6kVDC input/output
- Operating Temperature: -40°C to +80°C
- Package: DIP8 encapsulated construction
- Dimension: 0.55 x 0.55 x 0.32 inches (14.0 x 14.0 x 8.1 mm)
- Short Circuit Protection: Yes, auto recovery
- Remote On/Off: Yes
- MTBF: >820,000 hours (MIL-HDBK-217F, +25°C)
- Safety Certification: CE, UKCA
- Compliance: EN55032
Buy the XP Power ITU0348S12 – Reliable DC-DC Converter for Industrial Applications
Purchase the XP Power ITU0348S12 series 3W DC-DC converter online today and enjoy the benefits of a compact, high-efficiency power module with wide input voltage tolerance, robust short-circuit protection, and a reliable industrial temperature range. Ideal for space-constrained applications, this converter offers regulated outputs from 3.3V to 30VDC, ensuring stable power delivery in demanding environments. With a 3-year warranty, you can trust its durability and consistent performance for your critical projects.
Order your XP Power ITU0348S12 series 3W DC-DC converter today and ensure your industrial projects have the dependable power they require.
Frequently Asked Questions
Where can I buy XP POWER ITU0348S12?
You can click on the BUY or RFQ button to purchase ITU0348S12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part ITU0348S12?
You can download the ITU0348S12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of ITU0348S12?
XP POWER
