XP POWER JSM1024S05 DC-DC Converter
The JSM1024S05 is a 10-watt DC-DC converter designed for reliable power conversion in industrial and automation applications. It features a regulated output with options for single or dual outputs, wide input voltage range, and 1500 VDC isolation for safety and noise reduction. The compact 1x1 inch metal case ensures durability and efficient heat dissipation. Operating from -40°C to +100°C, it supports optional remote on/off and heatsink features, making it suitable for demanding environments. Certified for ITE safety standards, the JSM1024S05 offers high efficiency, compact size, and flexible configurations for diverse power needs.
XP POWER JSM1024S05 DC-DC Converter Specifications:
- Power: 10 Watts
- Input Voltage Range: 18V to 36V (nominal 24V)
- Output Voltage: 5V
- Output Current: 1A
- Isolation Voltage: 1500 VDC
- Operating Temperature: -40°C to +100°C
- Package Size: 1 x 1 inch (25.4 x 25.4 mm)
- Case Material: Metal
- Efficiency: 84%
- Input Surge Voltage: 50 V at 24V, 100 V at 48V
- Remote On/Off: Optional
- Heatsink: Optional
- Certifications: ITE Safety Standards
- Dimensions: 1.00 x 1.00 x 0.40 inches (25.4 x 25.4 x 10.16 mm)
- Weight: Approximately 15 grams
- Isolation Capacitance: 2000 pF
- Switching Frequency: 330 kHz
- Thermal performance: Operates reliably up to +100°C ambient with optional heatsink

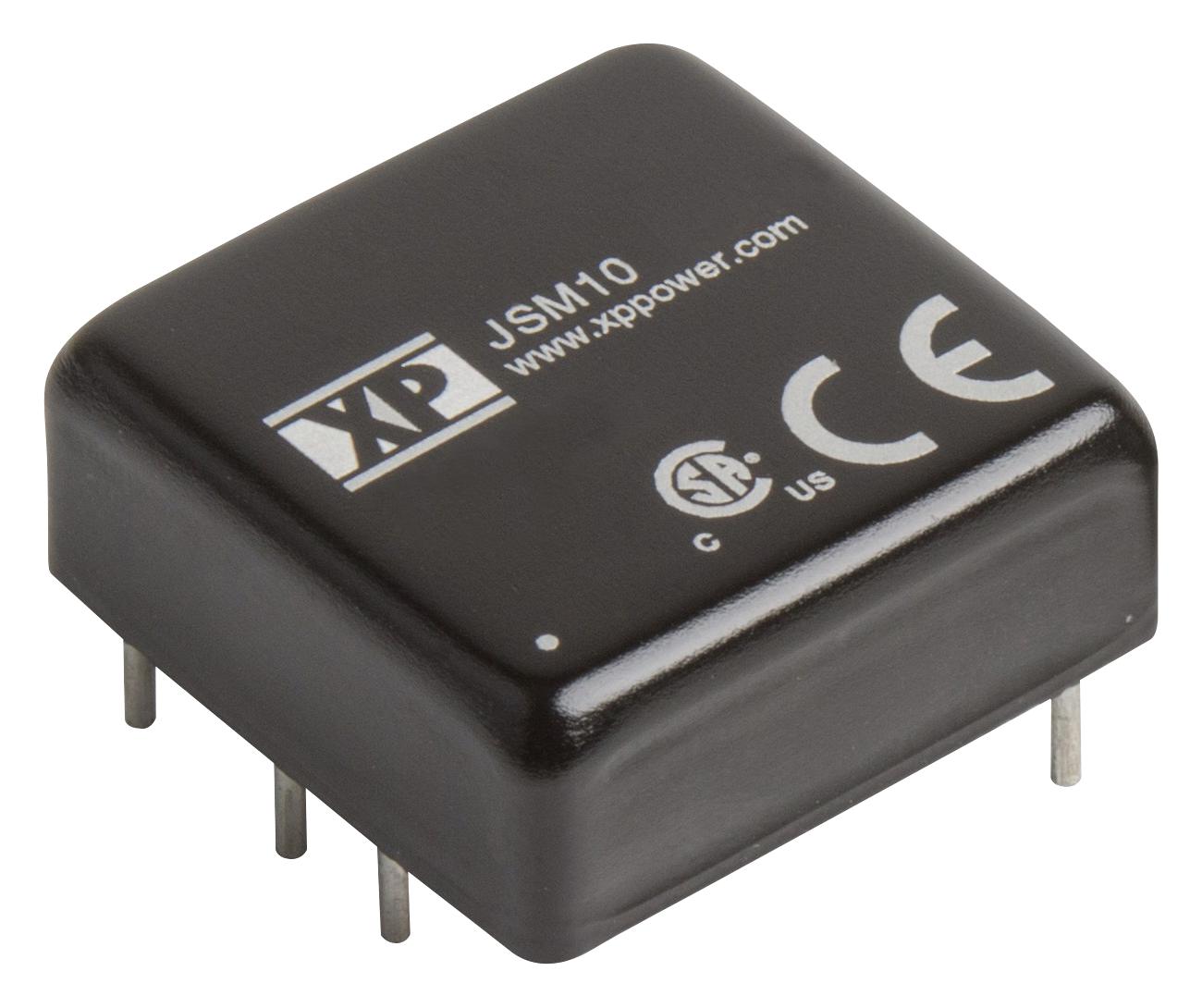

Buy the XP Power Series JSM1024 DC-DC Converter: 10W 5 Volt Output
Experience reliable power conversion with the XP Power Series JSM1024S05 10W DC-DC converter, offering 5V output at 1A, wide input voltage range, and high isolation. Its compact metal case ensures durability in demanding environments. Designed for industrial and automation applications, this converter provides exceptional efficiency of 84%, remote on/off functionality, and optional heatsink for optimal thermal management. Certified for ITE safety standards, it guarantees stable operation from -40°C to +100°C, making it the ideal choice for high-performance power solutions in diverse settings.
Order your XP Power Series JSM1024S05 10W DC-DC converter today and ensure stable, efficient power conversion for your industrial projects.
Frequently Asked Questions
Where can I buy XP POWER JSM1024S05?
You can click on the BUY or RFQ button to purchase JSM1024S05 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part JSM1024S05?
You can download the JSM1024S05 datasheet or visit the XP POWER website for support.
Who is the manufacturer of JSM1024S05?
XP POWER
