XP POWER ASB75US15 Power Supply

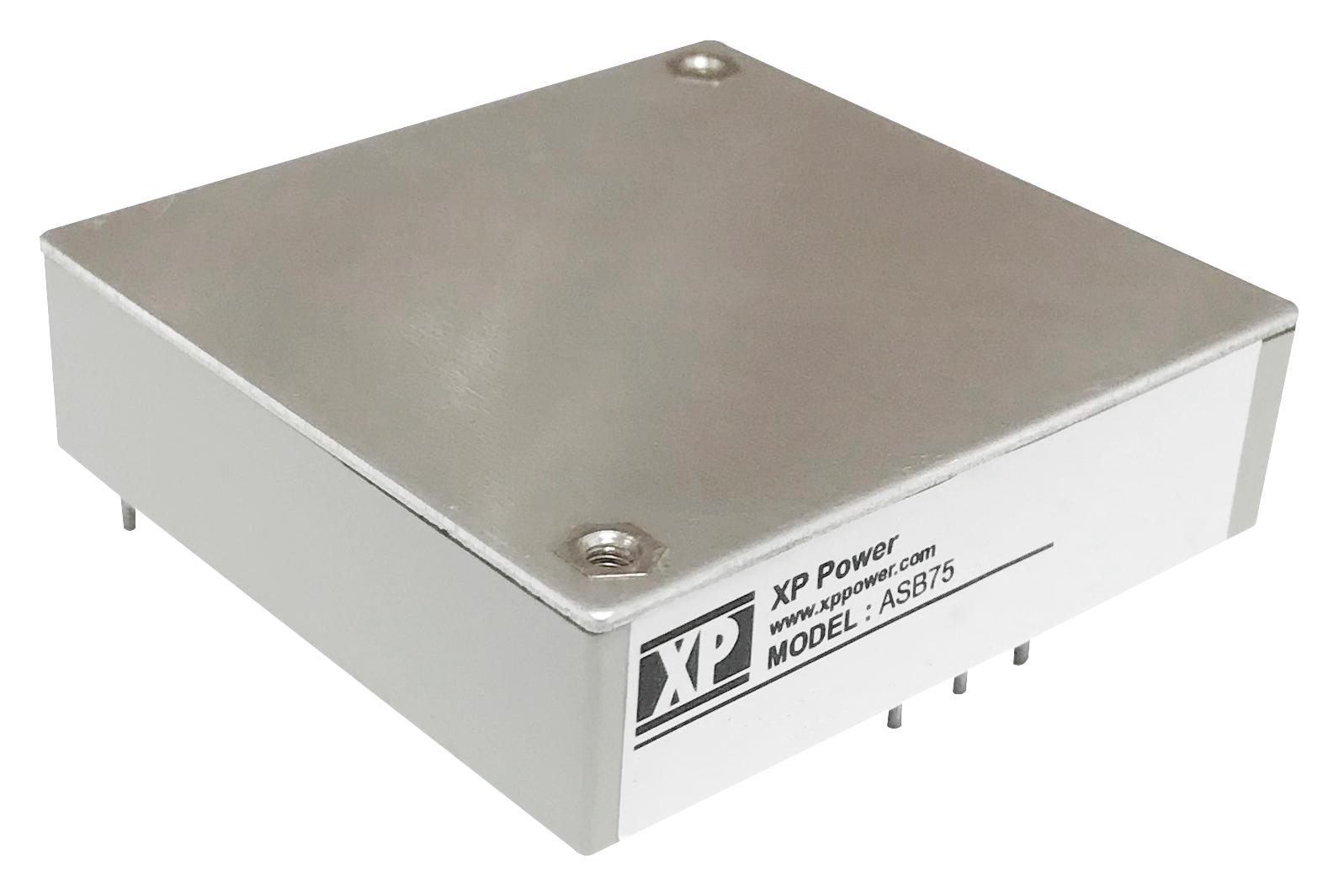

The ASB75US15 is a 75W low profile, baseplate-cooled AC-DC power supply designed for industrial applications. It features universal input voltage of 90-264VAC, high efficiency up to 88%, and operates from -40°C to +85°C. The compact module includes built-in EMC filter, AC fuse, and offers protections against overcurrent, overvoltage, and overtemperature. With a nominal output voltage of 15V and output current of 5A, it ensures reliable power delivery suitable for industrial automation, electronics, and control systems needing robust, efficient power solutions in a small form factor.
XP POWER ASB75US15 Power Supply Specifications:
- Input Voltage: 90-264VAC
- Input Frequency: 47-63Hz
- Input Current: 1.27/0.8A
- Inrush Current: 40A
- Earth Leakage Current: 0.15mA
- Output Voltage: 15V
- Output Current: 5A
- Efficiency: 88%
- Dimensions: 2.40” x 2.28” x 0.67” (61.0 x 57.9 x 17.0 mm)
- Operating Temperature: -40°C to +85°C
- Protections: Overcurrent, overvoltage, overtemperature
- Isolation: Input to output 3000VAC, input to ground 1500VAC, output to ground 500VAC
- Switching Frequency: 20MHz
- Weight: 0.57lb with heatsink fitted
Buy the Buy XP Power AC-DC Power Supply Part Number ASB75US15 Online
Purchase the XP Power ASB75US15 online today for a reliable 75W power supply suitable for industrial automation, electronics, and control systems. This compact module features a universal input of 90-264VAC, high efficiency up to 88%, and wide operating temperature range from -40°C to +85°C. It includes built-in protections against overcurrent, overvoltage, and overtemperature, eliminating external components. Easy to install with dimensions of 2.40 by 2.28 inches, it is perfect for applications requiring durable and efficient power solutions in a small form factor.
Order your XP Power SeriesASB75US15 75W power supply today and ensure reliable, efficient power for your industrial projects.
Frequently Asked Questions
Where can I buy XP POWER ASB75US15?
You can click on the BUY or RFQ button to purchase ASB75US15 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part ASB75US15?
You can download the ASB75US15 datasheet or visit the XP POWER website for support.
Who is the manufacturer of ASB75US15?
XP POWER
