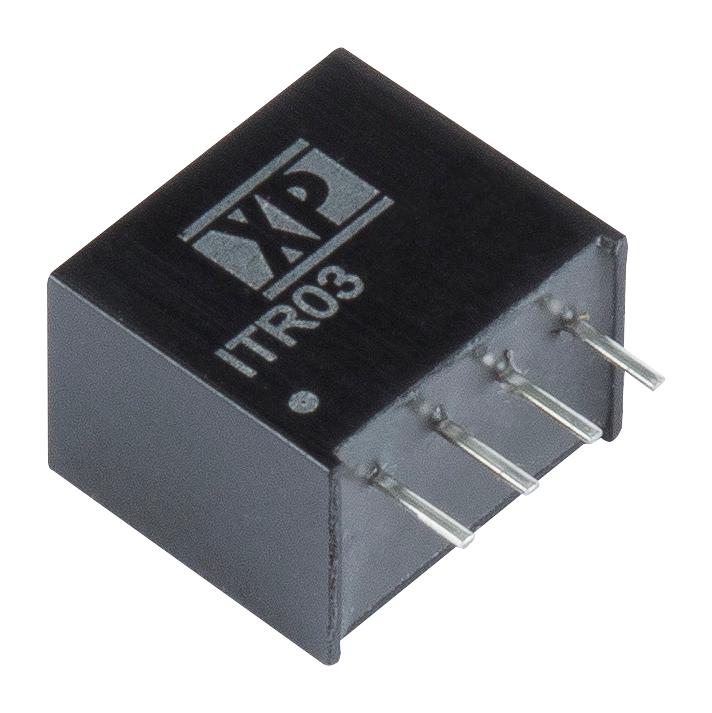

XP POWER ITR0305S15 DC-DC Converter Module
The ITROS Series is a compact, high-efficiency DC-DC converter module designed for industrial applications. It offers unregulated single output voltages from 5V to 24VDC, with an input range typically from 10.8V to 132VDC. Featuring high isolation of 3kVDC between input and output, it ensures safe operation in harsh environments. Encapsulated in a robust silicon potting with a non-conductive plastic case, it provides stable performance at temperatures from -40°C to +100°C. The modules comply with electromagnetic compatibility standards and boast a long MTBF of over 6.7 million hours, making them suitable for demanding industrial power systems.
XP POWER ITR0305S15 DC-DC Converter Module Specifications:
- Input Voltage Range: 10.8V to 132VDC
- Output Voltage: 5V, 9V, 12V, 15V, or 24VDC (unregulated)
- Output Power: 3 Watts
- Isolation Voltage: 3000VDC (Input to Output)
- Efficiency: up to 91%
- Operating Temperature: -40°C to +100°C
- Storage Temperature: -55°C to +125°C
- Switching Frequency: 40 to 70 kHz
- Dimensions: 0.46 x 0.38 x 0.29 inches (11.8 x 9.66 x 7.5mm)
- Case Material: Non-conductive black plastic (UL94V-0 rated)
- Potting Material: Silicone (UL94V-0 rated)
- Weight: Approx. 2.2 grams
- Certifications: EN55032 Class B, Safety Standard CE, UKCA
- MTBF: >6.7 million hours (MIL-HDBK-217F, +25°C)
Buy the Buy XP Power ITROS Series Part Number ITR0305S15 Online
Order the XP Power DC-DC Converter Module from our online store today. With high efficiency, robust isolation of 3kVDC, and operation across a wide temperature range, this module is ideal for industrial power systems. Its compact SIP package ensures easy integration into various applications, while compliance with safety and EMC standards guarantees reliable performance. Designed for demanding environments, the module offers long-lasting durability with a MTBF over 6.7 million hours, ensuring your projects stay powered and operational without interruptions.
Get XP Power ITROS Series ITR0305S15 today—engineered for high efficiency, reliable power delivery, and industrial-grade durability.
