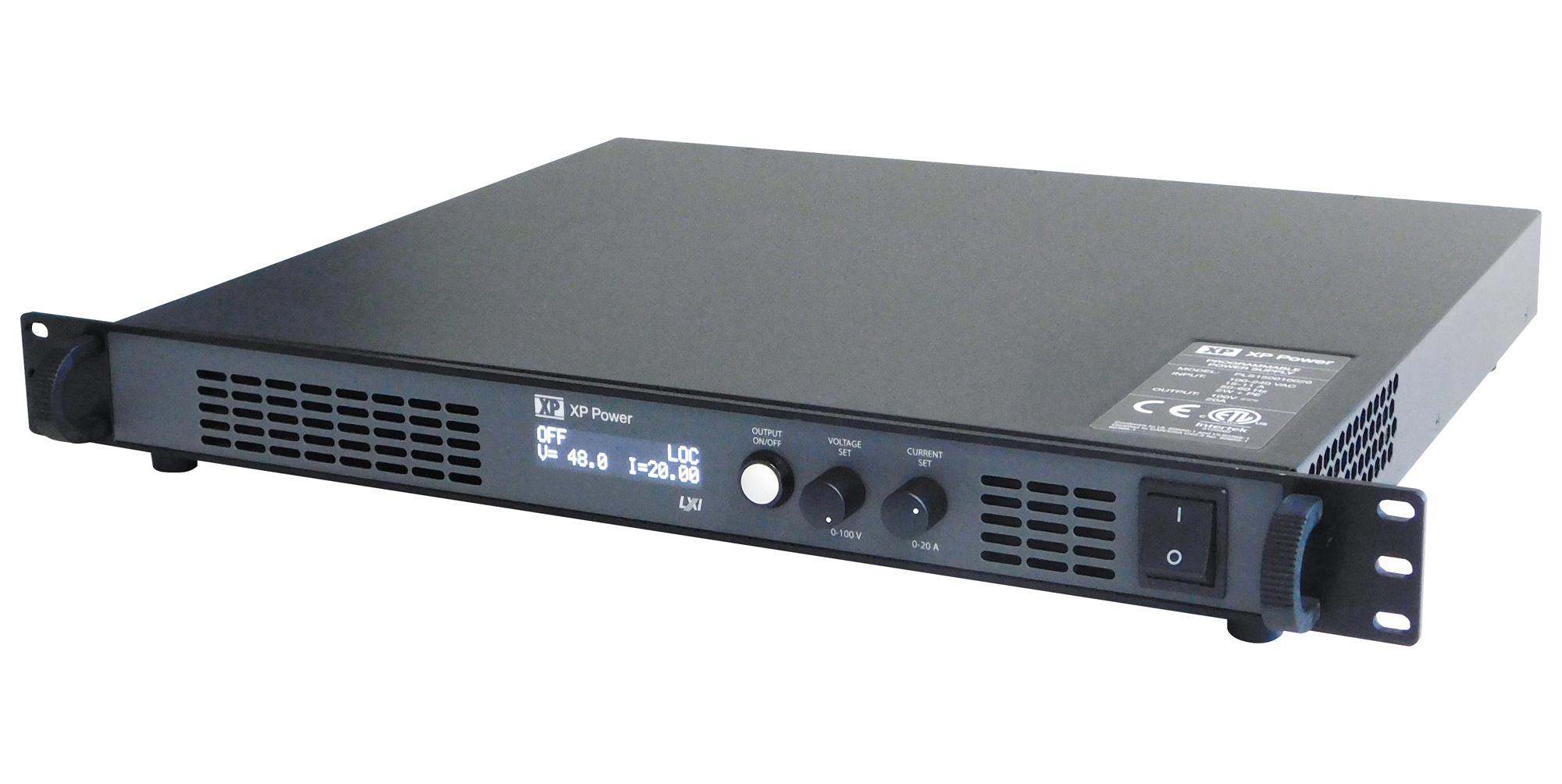

XP POWER PLS150020010 Programmable Power Supply
The PLS1500 is a programmable DC power supply delivering up to 1500 Watts with a rated voltage of 200V and current of 10A. It features 12-bit D/A and A/D converters for precise voltage and current measurement, along with dynamic rotary controls for easy adjustments. The unit includes rear ports for remote operation via USB, Ethernet, and analog inputs. These interfaces are SCPI compliant, with available LabView drivers, and the power supply supports parallel (up to 4 units) and series (up to 2 units) configurations. Built-in protections include overvoltage, overcurrent, and overpower safeguards, as well as self-test and calibration functions. The PLS1500 is suitable for bench or 1U rack mount applications, with a temperature range of 0°C to 40°C and a 3-year warranty.
XP POWER PLS150020010 Programmable Power Supply Specifications:
- Power output: 1500W
- Voltage range: 0 to 200VDC
- Current: 0 to 10A
- Rated input voltage: 90 to 265VAC
- Input frequency: 47 to 63Hz
- Ripple & Noise: 100mV (50V model), 200mV (400V model)
- Measurement accuracy: Voltage 0.1%+; Current 0.1%+
- Protection: Overvoltage, Overcurrent, Overpower
- Communication interfaces: USB 2.0, Ethernet, Analog control
- Operating temperature: 0°C to 40°C
- Dimensions: 18.9
- 15.79
- , 1.73"
- Weight: 5.8kg
- Series: PLS1500
- Model: PLS150020010
- Protection features: Self-test, calibration functions
Buy the XP Power Series PLS1500 Power Supply: PLS150020010
Experience high-performance and reliable operation with the XP Power PLS1500 programmable power supply. Offering up to 1500 Watts, it features precise voltage and current measurement. Its remote control capabilities via USB, Ethernet, and analog inputs make it easy to integrate into complex test setups. Designed with protections for overvoltage, overcurrent, and overpower, this unit is excellent for laboratory, industrial, and manufacturing environments. Its compact form factor supports rack mounting, and a robust 3-year warranty ensures dependable performance for critical applications.
Get XP Power PLS150020010 today—built for precision and long-lasting durability.
Frequently Asked Questions
Where can I buy XP POWER PLS150020010?
You can click on the BUY or RFQ button to purchase PLS150020010 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part PLS150020010?
You can download the PLS150020010 datasheet or visit the XP POWER website for support.
Who is the manufacturer of PLS150020010?
XP POWER
