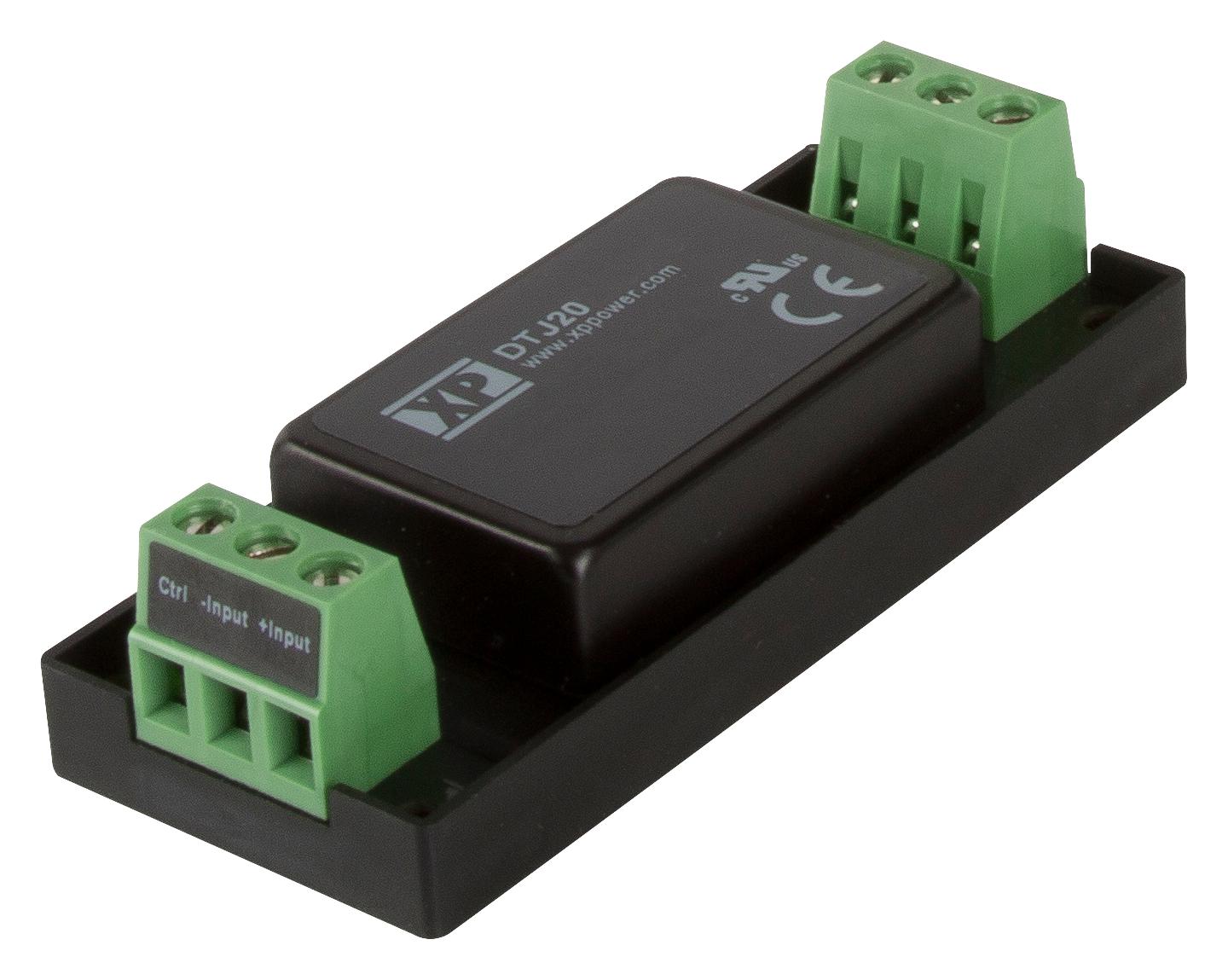

XP POWER DTJ2048D12 DC-DC Power Supply
The DTJ20 series of chassis mount DC-to-DC power supplies offers a high-performance solution ideal for industrial and commercial environments. Made from lightweight materials, these units feature short circuit, reverse polarity protection, and soft start. They support a wide 4:1 input voltage range and are certified under IEC/UL/cUL 62368-1 safety standards. Additional features include remote ON/OFF, voltage trimming, and 3 kV DC isolation. Capable of operating from -40°C to +100°C and delivering full power up to 80°C, they measure only 3 inches by 1.24 inches by 0.77 inches, making installation straightforward in various applications.
XP POWER DTJ2048D12 DC-DC Power Supply Specifications:
- Input Voltage Range: 9-36 VDC (12V, 24V, 48V nominal inputs)
- Output Voltage: 3.3V to 30VDC, regulated
- Output Power: 20 Watts
- Dimensions: 3.00 inches x 1.24 inches x 0.77 inches (76.2 mm x 31.4 mm x 19.4 mm)
- Operating Temperature: -40°C to +100°C
- Full Power Temperature: Up to 80°C
- Isolation: 3 kV DC for 60 seconds
- Efficiency: Up to 88%
- Protection: Short circuit, reverse polarity, overload (170%), overvoltage (140%), soft start
- Certifications: IEC/UL/cUL 62368-1, EN55032 Class A EM interference
- Remote ON/OFF: Yes, positive logic
- Voltage Trim: Yes, adjustable via external resistor
- Input Ripple & Noise: 20 mVp-p at full load
Buy the XP Power Series DTJ20 DC-DC Power Supply: DTJ2048D12
Purchase the XP Power DTJ2048D12 DC-DC power supply online for reliable performance in demanding industrial environments. Featuring a wide input range, robust safety certifications, remote control, and high efficiency, it ensures your equipment operates smoothly. Its compact size facilitates easy installation, while protections such as short circuit, reverse polarity, overload, and overvoltage safeguard your investment. With a temperature range from -40°C to +100°C, the power supply maintains full functionality in extreme conditions, making it the ideal choice for industrial and commercial applications worldwide.
Get XP Power DTJ2048D12 today—built for industrial durability with wide input range and high efficiency.
