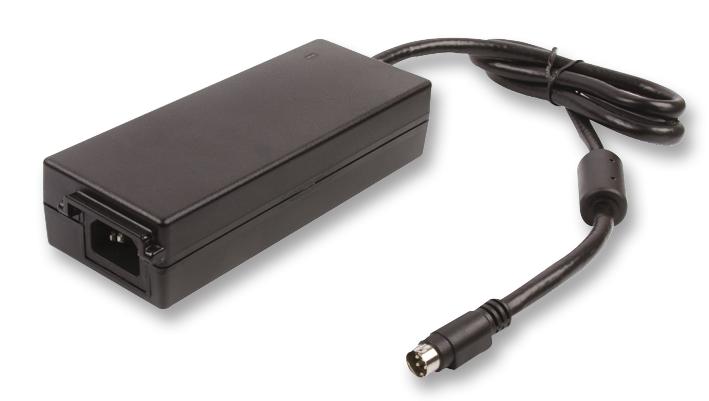

XP POWER AHM180PS19 Medical Power Supply
The AHM180PS19 is a high-efficiency 180W power supply designed for reliable industrial and medical applications. Capable of delivering a stable 19VDC output at 9.47A, it features an operating temperature range of 0°C to +60°C and includes safety features such as overvoltage, overtemperature, and short circuit protections. Its compact size and optional input connector retention make it suitable for various OEM configurations. Certified compliance with EN60601-1, UL, and CUL standards ensures safety and quality for professional environments.
XP POWER AHM180PS19 Medical Power Supply Specifications:
- Power Output: 180 W
- Output Voltage: 19.0 VDC
- Output Current: 9.47 A
- Input Voltage: 80-264 VAC
- Efficiency: 92% typical
- Operating Temperature: 0°C to +60°C, derates linearly from 100% power at 25°C
- Protection: Overvoltage, Overtemperature, Short circuit
- Isolation: 4000 VAC In to Out, 2 x MOPP
- Cooling: Convection-cool
- Vibration: 5-500 Hz at 2 g, 10 sweeps
- Dimensions: 7.87 in (200 mm) × 1.41 in (35.7 mm) × 1.40 in (35.7 mm)
- Weight: 1.3 lbs (600 g)
Buy the Buy Manufacturer Name Power Supply Part Number AHM180PS19 Online
Discover the Manufacturer Name AHM180PS19 power supply, engineered for high efficiency and robust safety standards in medical and industrial settings. With a 19V output at 9.47A, it ensures reliable operation even under demanding conditions. Its compact design allows seamless integration into various systems, while certifications like EN60601-1 and UL guarantee safety and compliance. Perfect for OEM applications, this power supply features overvoltage, overtemperature, and short circuit protections, providing peace of mind and consistent performance in critical environments. Order online today for fast delivery and quality assured.
Get Manufacturer Name AHM180PS19 today—built for precision and long-lasting durability in professional applications.
Frequently Asked Questions
Where can I buy XP POWER AHM180PS19?
You can click on the BUY or RFQ button to purchase AHM180PS19 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part AHM180PS19?
You can download the AHM180PS19 datasheet or visit the XP POWER website for support.
Who is the manufacturer of AHM180PS19?
XP POWER
