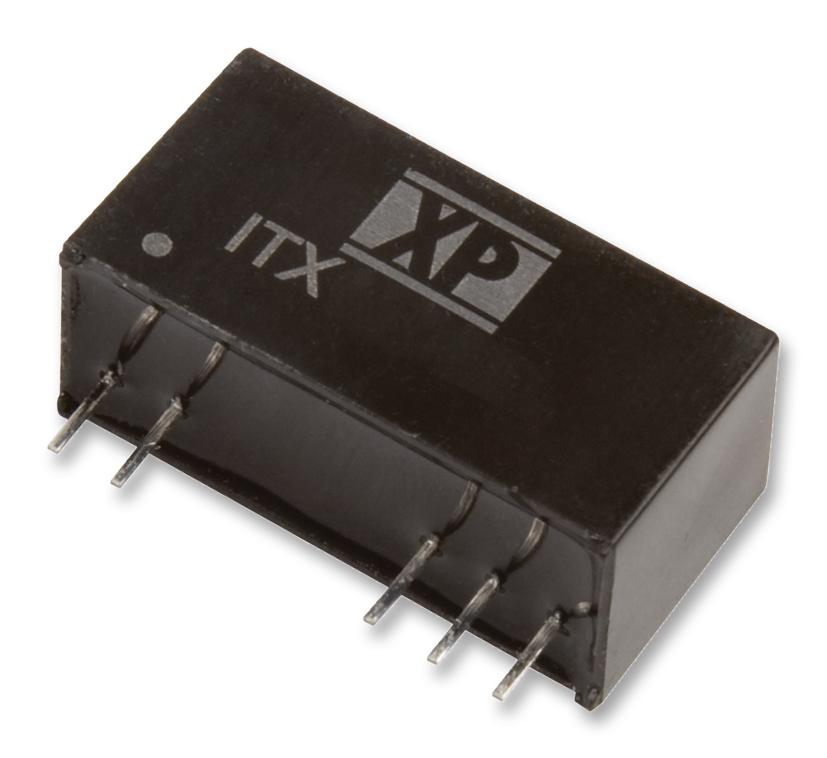

XP POWER ITX0505S DC-DC Converter
The ITX Series DC-DC Converter by XP Power is a compact, highly efficient power supply solution delivering up to 6 watts with a 2:1 input voltage range. Featuring a SIP-8 plastic case, it operates reliably from -40°C to +90°C, offering single and dual output options with optional 1500 VDC or 3000 VDC isolation and remote control functionality. Suitable for industrial and embedded applications, this converter ensures stable voltage regulation, low ripple, and noise, along with enhanced safety through reinforced insulation, making it an ideal choice for demanding electronic systems requiring compact size and robust performance.
XP POWER ITX0505S DC-DC Converter Specifications:
- Power: 6 Watts
- Input Voltage Range: 9 V to 36 V (nominal 12 V, 24 V)
- Output Voltage: Various models with single or dual outputs; see ratings table
- Operating Temperature: -40°C to +90°C
- Isolation Voltage: 1500 VDC, optional 3000 VDC with suffix -H
- Operating Humidity: Up to 95% RH non-condensing
- Efficiency: Up to 80% typical depending on model
- Dimensions: 0.86 x 0.44 x 0.36 inches (21.85 x 11.1 x 9.2 mm)
- Ripple & Noise: 75 mV pk-pk at 20 MHz bandwidth
- Transient Response: 3% deviation, 64-259 ms change
- Protection: Continuous short circuit with auto recovery
- Remote ON/OFF: Optional with suffix -R, off current 2-4 mA via 1kΩ resistor
- Isolation Resistance: 10^9 Ω
- Switching Frequency: 4-15 MHz, adjustable
- Temperature Coefficient: 0.02%/°C
- Storage Temperature: -55°C to +125°C
- Case Temperature: Up to +105°C
- Weight: Approximately 0.011 lbs (4.8 g)
Buy the Buy XP Power ITX Series DC-DC Converter Part Number ITX0505S Online
Experience superior power management with the XP Power ITX Series DC-DC Converter. This 6-watt device features a compact SIP-8 case, wide input voltage range from 9V to 36V, and optional 1500VDC or 3000VDC isolation for enhanced safety. Its operational temperature spans from -40°C to +90°C, ensuring high performance in demanding environments. With excellent efficiency, low ripple, and noise, plus optional remote control capability, this converter is ideal for industrial, automation, and embedded applications needing reliable, stable power supply in a small form factor.
Buy XP Power ITX Series DC-DC Converter now and experience unmatched reliability and performance for your industrial and embedded systems.
Frequently Asked Questions
Where can I buy XP POWER ITX0505S?
You can click on the BUY or RFQ button to purchase ITX0505S from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part ITX0505S?
You can download the ITX0505S datasheet or visit the XP POWER website for support.
Who is the manufacturer of ITX0505S?
XP POWER
