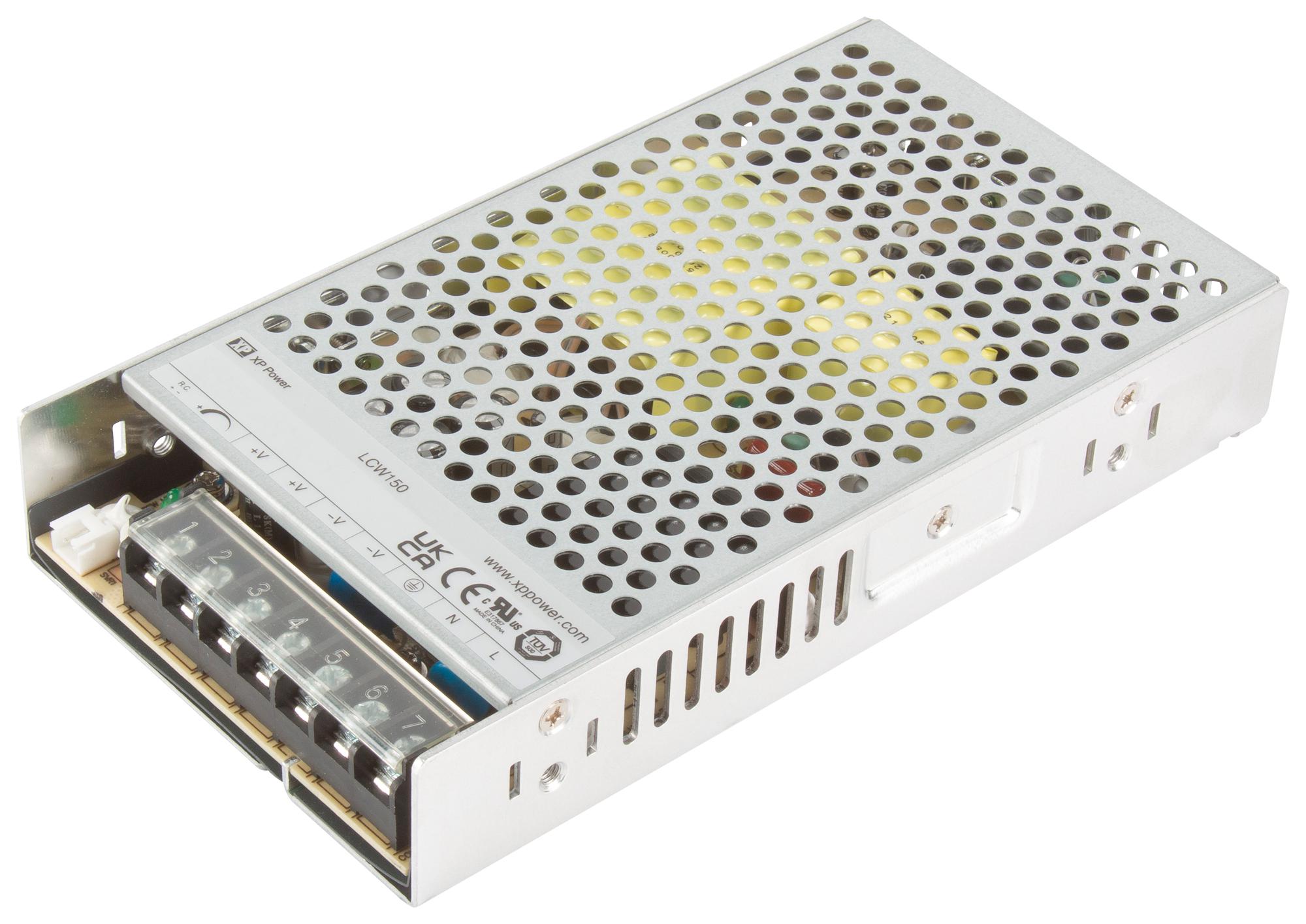

XP POWER LCW150PS12 Power Supply Unit
The LCW150 series regulated output convection-cooled AC to DC power supplies are designed for efficient industrial, household, and electronic applications. Featuring wide input voltage of 85-305VAC, active PFC, adjustable output, and protection features including short circuit, overcurrent, overload, and overvoltage, these units are ideal for auxiliary power, security, lighting, smart home systems, and vending machines. Certified for safety with UL, EN, CE, and UKCA approvals, they operate within -30°C to +70°C, have an efficiency of 85%, and are housed in durable aluminum chassis with vented steel covers for optimal performance and reliability.
XP POWER LCW150PS12 Power Supply Unit Specifications:
- Input Voltage Range: 85-305VAC
- Output Power: 150W
- Output Voltage Adjustment: Yes
- Ripple & Noise: 120mV to 200mV depending on model
- Efficiency: Up to 88%
- Dimensions: 7.05 inches x 3.89 inches x 1.18 inches (179mm x 99mm x 30mm)
- Operating Temperature: -30°C to +70°C
- Certifications: UL62368-1, EN62368-1, EN60335, EN61558, CE, UKCA
- Protection: Short circuit, overvoltage, overload
- Cooling Method: Convection
- Switching Frequency: 65kHz
- Housing: Aluminum chassis with galvanized steel cover
- Warranty: 3 years
Buy the XP Power Series Power Supply: LCW150PS12
Order the XP Power LCW150PS12 power supply online today and ensure your electronic systems run smoothly with its high efficiency, wide input voltage, and comprehensive protection features. Perfect for industrial, household, and automation applications, this 150W convection-cooled power supply guarantees reliable operation within a temperature range of -30°C to +70°C. Its small form factor, certified safety standards, and long warranty make it an ideal choice for technicians and buyers seeking durable and efficient power sources for diverse electronic needs.
Buy XP Power LCW150PS12 now and experience unmatched reliability and performance in industrial and household electronics with high efficiency and robust protections.
Frequently Asked Questions
Where can I buy XP POWER LCW150PS12?
You can click on the BUY or RFQ button to purchase LCW150PS12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part LCW150PS12?
You can download the LCW150PS12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of LCW150PS12?
XP POWER
