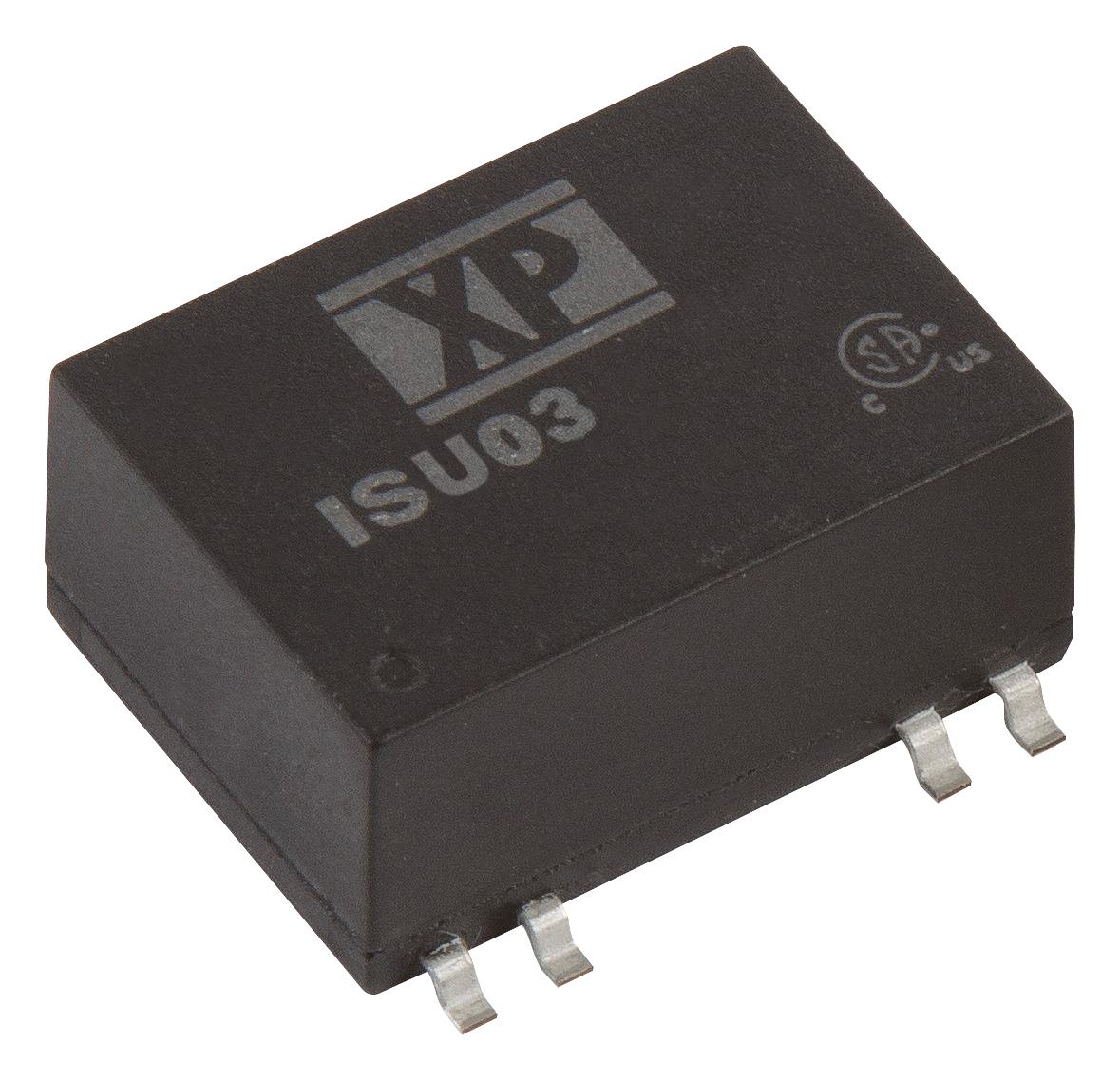

XP POWER ISU0305S05 DC-DC Converter

The ISUO3 Series DC-DC Converter provides 3 Watts of power with regulated single and dual outputs, suitable for space-constrained applications. It features a wide 4:1 input voltage range, up to 1500 VDC isolation, and operates from -40°C to +95°C. Its compact surface-mount package measures 0.75 x 0.67 x 0.34 inches, making it ideal for industrial and medical systems. Certified for ITE safety standards, it offers remote ON/OFF control, optional water-washability, and a 3-year warranty, guaranteeing reliable performance across various demanding environments.

Authorized Distributors
Source:Newark
Part No:ISU0305S05
Stock:10
Inv Date:05-29-2026
Price: Unit price: $53.3
Buy/RFQ:
Source:DigiKey
Part No:ISU0305S05
Stock:0
Inv Date:05-29-2026
Price: Unit price: $27.42
Buy/RFQ:
Part No:ISU0305S05
Stock:1
Inv Date:05-30-2026
Price: Unit price: $29.17
Buy/RFQ:
Part No:ISU0305S05
Stock:0
Inv Date:05-29-2026
Price: Unit price: $29.17
Buy/RFQ:

XP POWER ISU0305S05 DC-DC Converter Specifications:

  • Power Output: 3 Watts
  • Input Voltage Range: 18-75 VDC (nominal: 24V, 36V, 48V, 60V, 72V, 75V)
  • Output Voltages: 5V, 12V, 15V, 24V, 212V, 215V, 9-36V, 18-75V
  • Maximum Output Current: 730 mA for 5V, 250 mA for 12V, 200 mA for 15V, 125 mA for 24V
  • Isolation Voltage: 1500 VDC
  • Operating Temperature: -40°C to +95°C
  • Dimensions: 0.75 x 0.67 x 0.34 inches (19.0 x 17.0 x 8.7 mm)
  • Operating Frequency: 700 kHz
  • Efficiency: Up to 83%
  • Certifications: ITE Safety Approvals
  • Features: Remote On/Off, Optional Water Washable, Compact SMD Package
  • Temperature Coefficient: 0.02 %/°C
  • Ripple & Noise: 20 mV typical with 0.47 µF ceramic capacitor
  • Short Circuit Protection: Continuous auto-recovery
  • Max Capacitive Load: See model ratings
  • Isolation Resistance: 1 GΩ at 500 VDC
  • Switching Frequency: 700 kHz
  • Weight: Approx. 4.5 grams
  • Moisture Sensitivity Level: Level 1

Buy the Buy XP Power ISUO3 Series DC-DC Converter Part Number ISU0305S05 Online

Purchase the XP Power ISUO3 Series DC-DC converter online today for reliable 3-watt power conversion in space-constrained environments. Featuring a wide 4:1 input range, 1500 VDC isolation, and certifications for safety standards, it is perfect for industrial, medical, and automation applications. With optional water-washable versions, remote On/Off control, and a compact surface-mount package measuring just 0.75 x 0.67 inches, it delivers high efficiency and durability. Order now to enhance your systems' performance with trusted power modules designed for demanding conditions.

Order your XP Power ISU0305S05 Series DC-DC Converter today and ensure your projects benefit from dependable power with compact design and wide input range.

Frequently Asked Questions

Where can I buy XP POWER ISU0305S05?

You can click on the BUY or RFQ button to purchase ISU0305S05 from an authorized XP POWER distributor.

How do I troubleshoot issues or seek technical support for part ISU0305S05?

You can download the ISU0305S05 datasheet or visit the XP POWER website for support.

Who is the manufacturer of ISU0305S05?

XP POWER
