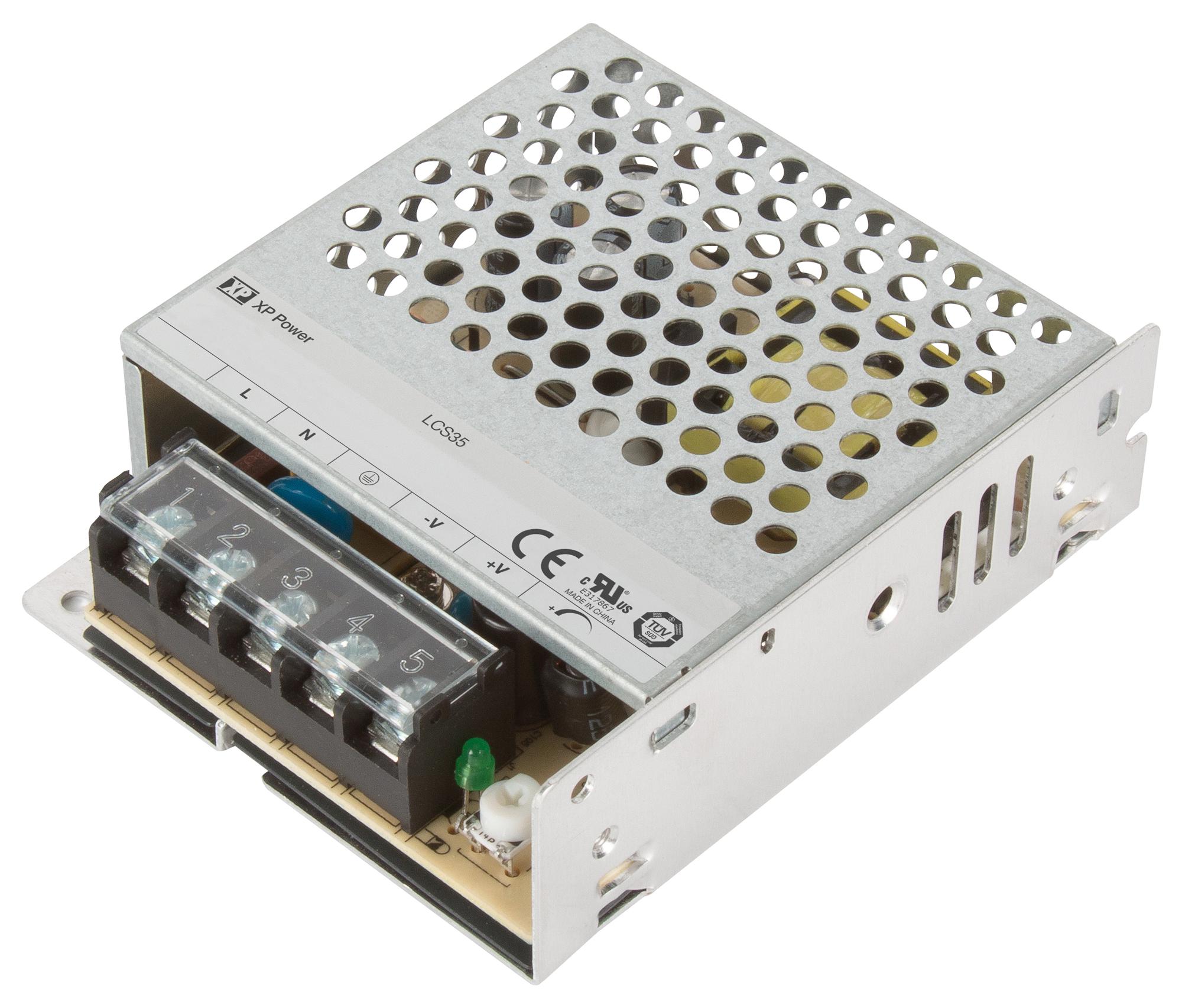

XP POWER LCS35US05 power supply
The LCS series of regulated output convection-cooled AC-DC power supplies offers a cost-effective solution for industrial electronics and technology applications. These 35W power supplies feature adjustable output voltage, an LED indicator for power status, low standby power consumption, and protections including short circuit, overcurrent, and overvoltage. Approved for ITE, industrial, and household use, they include an integrated connector cover, comply with Class B conducted and radiated emissions, and support an input voltage range of 85-264VAC with a 300VAC withstand voltage for 5 seconds. Operating temperatures range from -30°C to +70°C, and they come with a 3-year warranty. Suitable applications include auxiliary power sources, security systems, lighting control, smart home and office automation, as well as ticketing and vending systems.
XP POWER LCS35US05 power supply Specifications:
- Input Voltage Range: 85-264VAC, withstand voltage 300VAC for 5s
- Output Power: 35W
- Output Voltage Range: 5V to 24VDC
- Efficiency: up to 88%
- Operating Temperature: -30°C to +70°C
- Dimensions: 3.89" x 3.23" x 1.18" (99.0 x 82.0 x 30.0 mm)
- Protections: Short circuit, overvoltage, overload
- Emissions: Class B conducted & radiated
- Approval: ITE, industrial, household
- Input Frequency: 50/60Hz
- Cooling: Natural convection
- Isolation: Input to Output 4000VAC, Input to Ground 2000VAC, Output to Ground 1250VAC
- Switching Frequency: 65kHz
- Weight: 0.396 kg
- Warranty: 3 years
Buy the Buy XP Power LCS35US05 Part Number LCS35US05 Online
Order the XP Power 35W convection-cooled power supply online and experience reliable performance for industrial electronics, security, and automation systems. Featuring adjustable voltage from 5V to 24VDC, high efficiency up to 88%, and comprehensive protections, this power supply supports a wide input voltage range and operates efficiently from -30°C to +70°C. Its compact dimensions and robust design ensure easy integration into smart home, security, and vending applications. Enjoy quick delivery, warranty coverage, and seamless online purchase for dependable power solutions.
Get XP Power LCS35US05 today—built for precision and long-lasting durability in industrial and automation systems.
