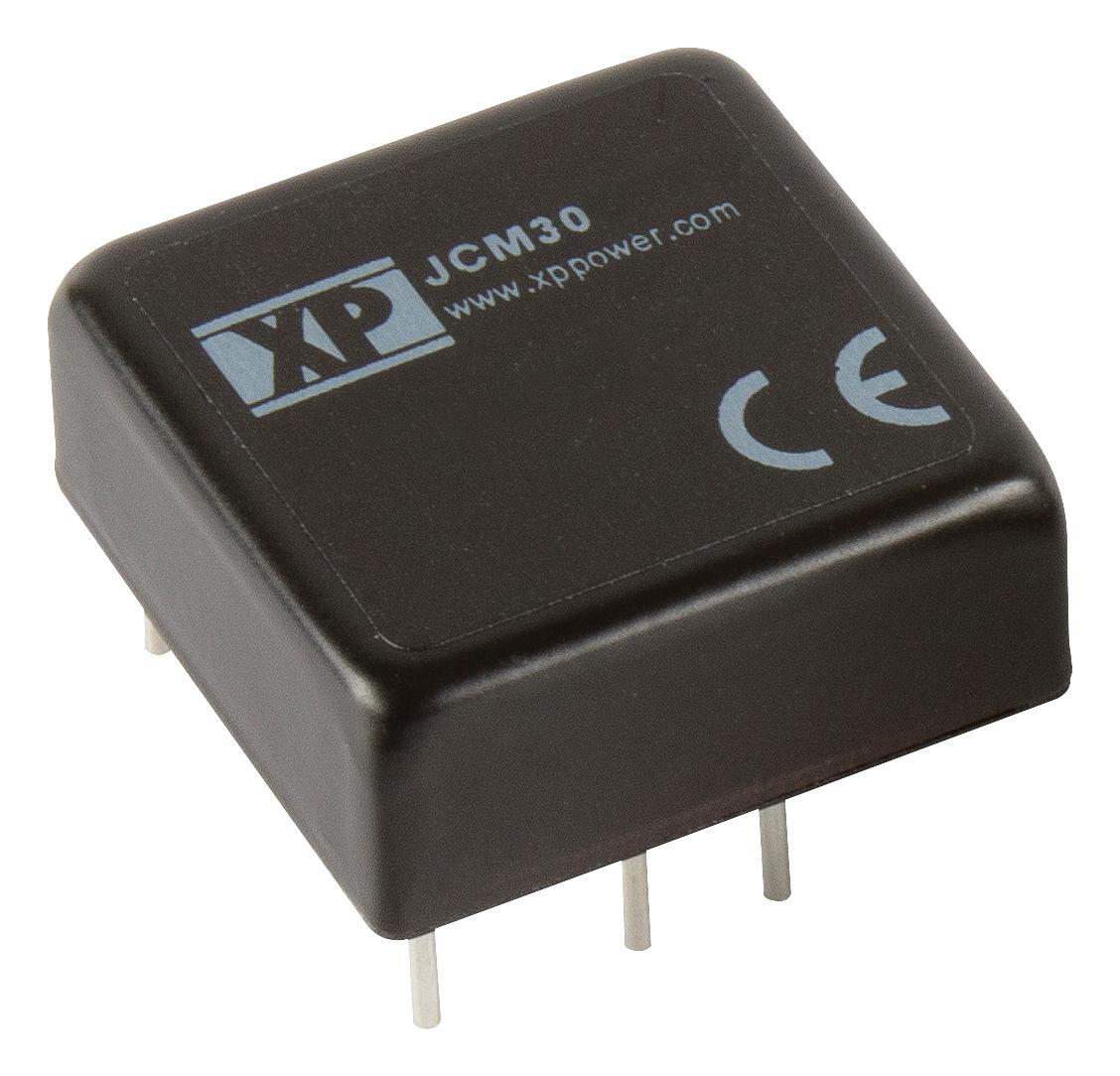

XP POWER JCM3024D1 DC-DC Converter
The JCM30 series offers high-performance 15 to 30W DC-DC power modules in a compact 1" x 1" metal case, suitable for industrial and control applications. These modules support single and dual outputs, with a 2:1 wide input voltage range (12V, 24V, 48VDC). They feature adjustable output trim of ±10%, 1600VDC isolation, and regulation accuracy within ±0.5% line and load regulation. Operating from -40°C to 100°C, with optional heat sinks, they ensure reliable performance for demanding environments, including remote ON/OFF control and high efficiency up to 90%.
XP POWER JCM3024D1 DC-DC Converter Specifications:
- Power: 30 Watts
- Input Voltage Range: 12 VDC, 24 VDC, 48 VDC (2:1 wide input)
- Input Surge: 50 VDC (24V models), 700 VDC (48V models)
- Output Voltages: 3.3V, 5V, 12V, 15VDC (single), ±12V, ±15VDC (dual)
- Output Power: up to 30W with full load at 55°C ambient
- Output Current: up to 2.810 A depending on model
- Efficiency: Up to 90%
- Isolation Voltage: 1600VDC input to output
- Line Regulation: ±0.5%, Load Regulation: ±0.5% (single); ±1% (dual)
- Operating Temperature: -40°C to +100°C, derating above 55°C
- Dimensions: 1" x 1" x 0.41" (25.4 x 25.4 x 10.4 mm)
- Remote On/Off: Yes
- MTBF: 370,000 hours
- Certifications: Compliant with safety and EMC standards
Buy the XP Power Series JCM30 DC-DC Converter: JCM3024D1
Purchase the JCM30 series DC-DC converter online to ensure reliable power conversion for industrial, automation, or control systems. This compact 30W module offers excellent efficiency up to 90%, wide input voltage range of 12V, 24V, or 48VDC, and provides high isolation of 1600VDC. With adjustable output trim of ±10%, remote ON/OFF control, and regulation accuracy within ±0.5%, these converters are ideal for demanding environments. Easy to install and certified for safety, order now for fast delivery and quality assurance.
Order your XP Power Series JCM30 DC-DC Converter today and give your projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy XP POWER JCM3024D1?
You can click on the BUY or RFQ button to purchase JCM3024D1 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part JCM3024D1?
You can download the JCM3024D1 datasheet or visit the XP POWER website for support.
Who is the manufacturer of JCM3024D1?
XP POWER
