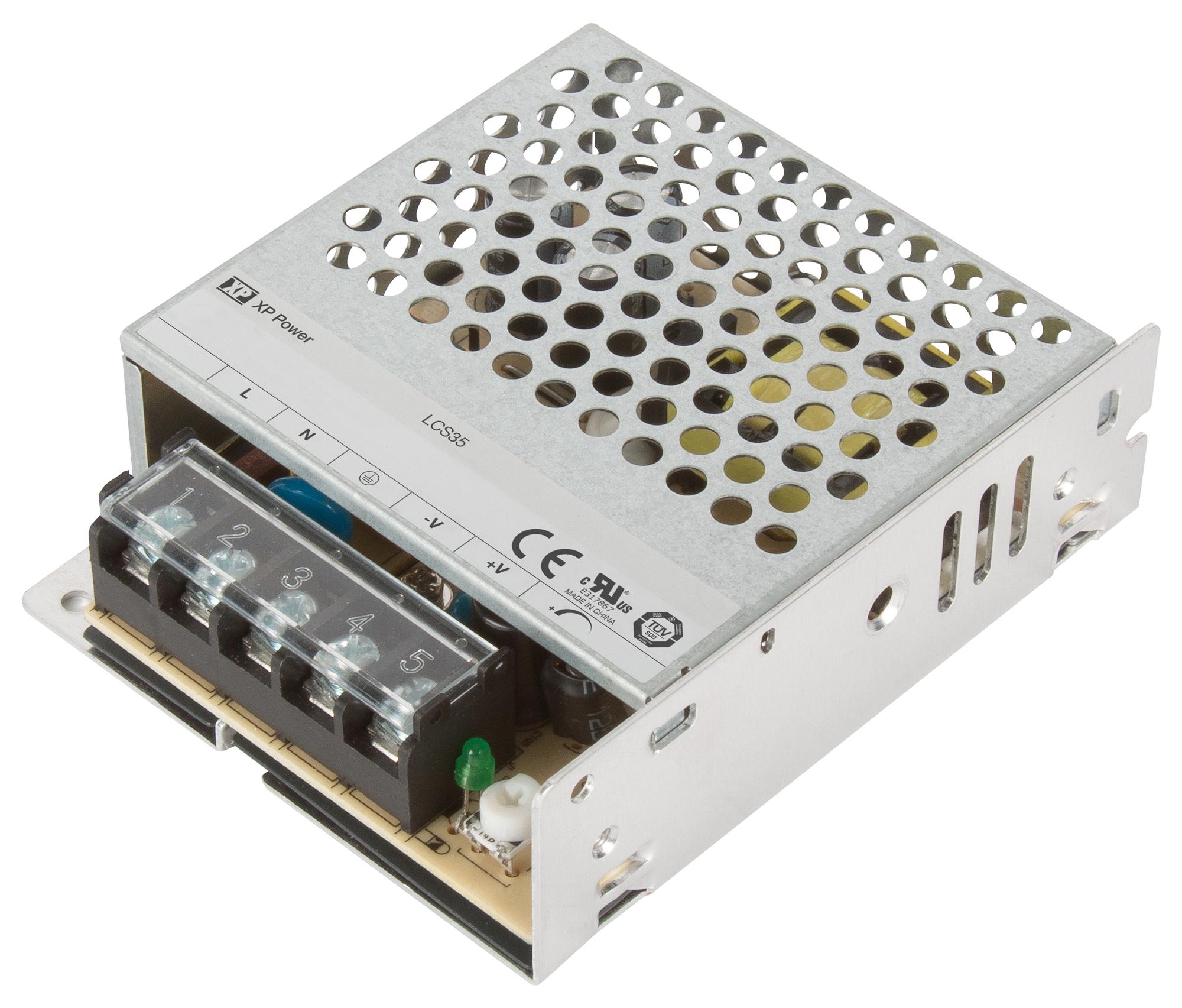

XP POWER LCS35US12 Power Supply
The LCS series of regulated, convection-cooled AC-DC power supplies offers a cost-effective solution for industrial electronics and technology applications. Features include adjustable output voltage, an LED indicator for power status, low standby power consumption, and protection against short circuits, overcurrent, and overvoltage conditions. These 35W power supplies are suitable for auxiliary power sources, security systems, lighting control, smart home and office automation, as well as ticketing and vending applications. They are designed with integrated connector covers, support input voltages from 85V to 264V AC, and can withstand 300VAC for 5 seconds. Operating temperature ranges from -30°C to +70°C, and they meet ITE, industrial, and household approvals with Class B emissions. The units come with a 3-year warranty.
XP POWER LCS35US12 Power Supply Specifications:
- Input Voltage Range: 85-264VAC
- Surge Voltage: 300VAC for 5s
- Output Voltage Range: from 5V to 24VDC (models vary)
- Output Power: 35W
- Efficiency: up to 88%
- Dimensions: 3.89" x 3.23" x 1.18" (99.0 x 82.0 x 30.0 mm)
- Operating Temperature: -30°C to +70°C
- Protection: Short circuit, overvoltage & overload
- Certifications: ITE, industrial, household approvals, Class B emissions
- Cooling: Natural convection
- Enclosure: Vented galvanized steel with aluminium chassis
- Humidity: 5-90% RH
- Operating Altitude: Up to 5000 meters
- Switching Frequency: 65 kHz
- Isolation: Input to Output 4000 VAC, Input to Ground 2000 VAC, Output to Ground 1250 VAC
- MTBF: 300,000 hours
- Weight: 0.396 kg
- Safety Standards: UL 62368-1, EN62368-1, EN60335
Buy the XP Power Series LCS Power Supply: LCS35US12
Discover the reliable and energy-efficient 35W convection-cooled power supply designed for industrial, residential, and automation systems. With adjustable voltage, low standby power, and comprehensive protections including short circuit, overvoltage, and overload, this power supply ensures safe, stable operation. Its high efficiency of up to 88%, compact dimensions, and robust construction make it ideal for security systems, lighting control, smart home, and vending applications. Comes with a 3-year warranty and meets all relevant safety and EMC standards for peace of mind.
Buy XP Power LCS35US12 now and experience unmatched reliability and performance for industrial and automation applications.
Frequently Asked Questions
Where can I buy XP POWER LCS35US12?
You can click on the BUY or RFQ button to purchase LCS35US12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part LCS35US12?
You can download the LCS35US12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of LCS35US12?
XP POWER
