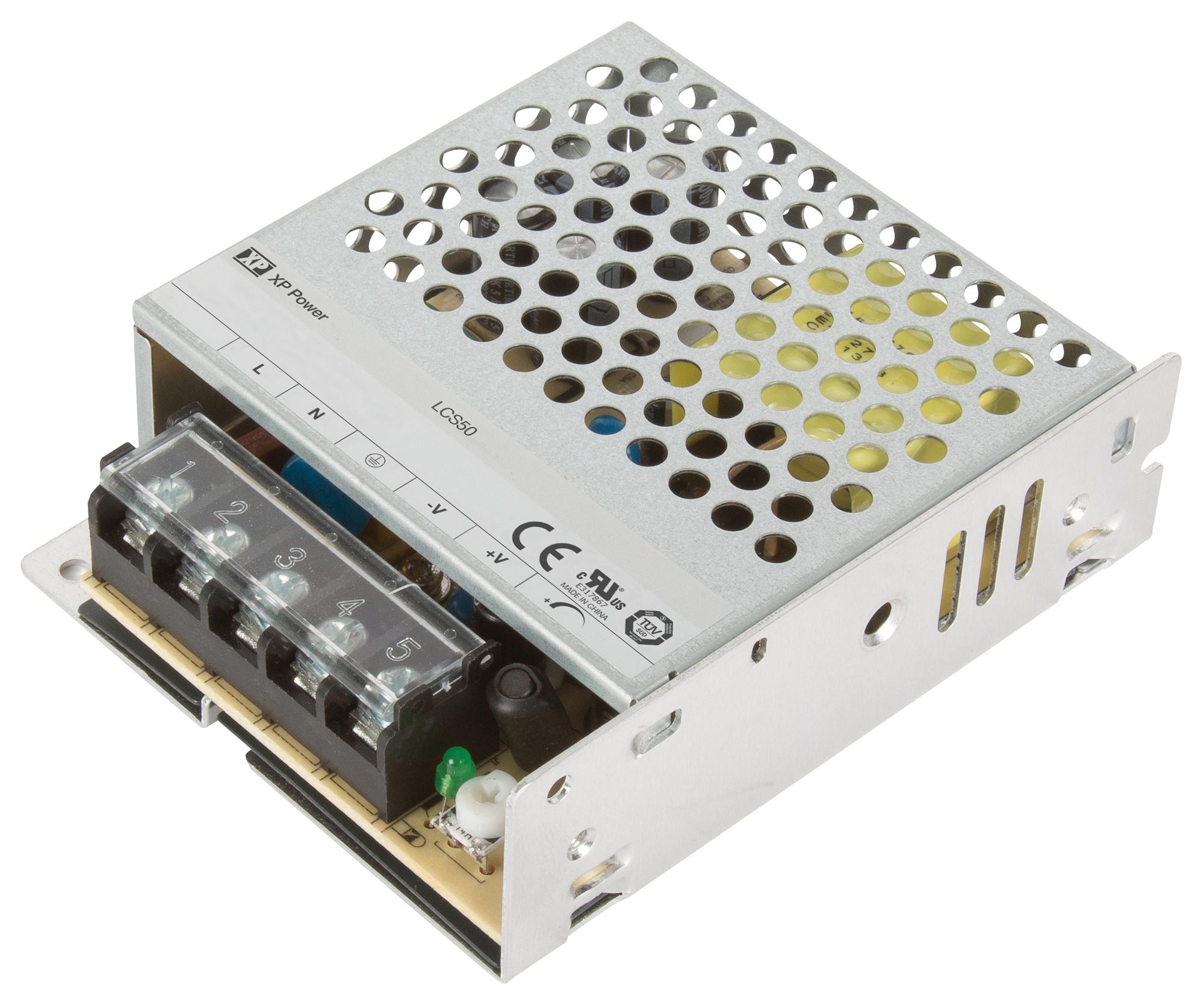

XP POWER LCS50US24 Power Supply Module
The LCS series of regulated, convection-cooled AC-DC power supplies offers a cost-effective solution for industrial electronics and technology applications. This 50W power supply features adjustable output voltage, an LED indicator for power status, low standby power consumption, and protection against short circuits, overcurrent, and overvoltage conditions. It is suitable for applications such as auxiliary power sources, security systems, lighting control, smart home and office automation, as well as ticketing and vending systems. The unit is convection cooled, rated for a universal input voltage range of 85-264VAC, and can withstand 300VAC for 5 seconds. It operates across a temperature range of -30°C to +70°C, includes an integrated connector cover, and complies with ITE, industrial, and household safety approvals. It also meets Class B conducted and radiated emissions standards and comes with a 3-year warranty.
XP POWER LCS50US24 Power Supply Module Specifications:
- Input Voltage Range: 85-264VAC
- Surge Withstand Voltage: 300VAC for 5 seconds
- Output Power: 50W
- Output Voltages: from 5V to 48VDC adjustable
- Efficiency: up to 90%
- Operating Temperature Range: -30°C to +70°C
- Dimensions: 3.89" x 3.23" x 1.18" (99.0 x 82.0 x 30.0 mm)
- Cooling Method: Natural convection
- Protection Features: Short circuit, overvoltage, overload
- Certifications: ITE, industrial, household approvals
- Emissions: Class B conducted & radiated emissions
- Warranty: 3 years
- Connectors: Integrated connector cover
- Construction: Vented aluminum chassis with galvanized steel cover
Buy the Buy Brand Name LCS50US24 Part Number LCS50US24 Online
Experience the dependable performance of the Brand Name LCS50US24 power supply—designed for industrial, security, and smart home systems. With adjustable output voltage, low power consumption, and robust protection features, it ensures safe and efficient operation. Its convection cooling and universal input voltage make it versatile for various environments. Backed by a 3-year warranty, this compact, light-weight unit is easy to install and ideal for applications requiring stable power. Order online today for fast, secure delivery and keep your projects running smoothly with high-quality power modules.
Order your Brand Name SeriesLCS50US24 50W regulated power supply today and enhance your industrial or home automation projects with reliable, efficient power.
Frequently Asked Questions
Where can I buy XP POWER LCS50US24?
You can click on the BUY or RFQ button to purchase LCS50US24 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part LCS50US24?
You can download the LCS50US24 datasheet or visit the XP POWER website for support.
Who is the manufacturer of LCS50US24?
XP POWER
