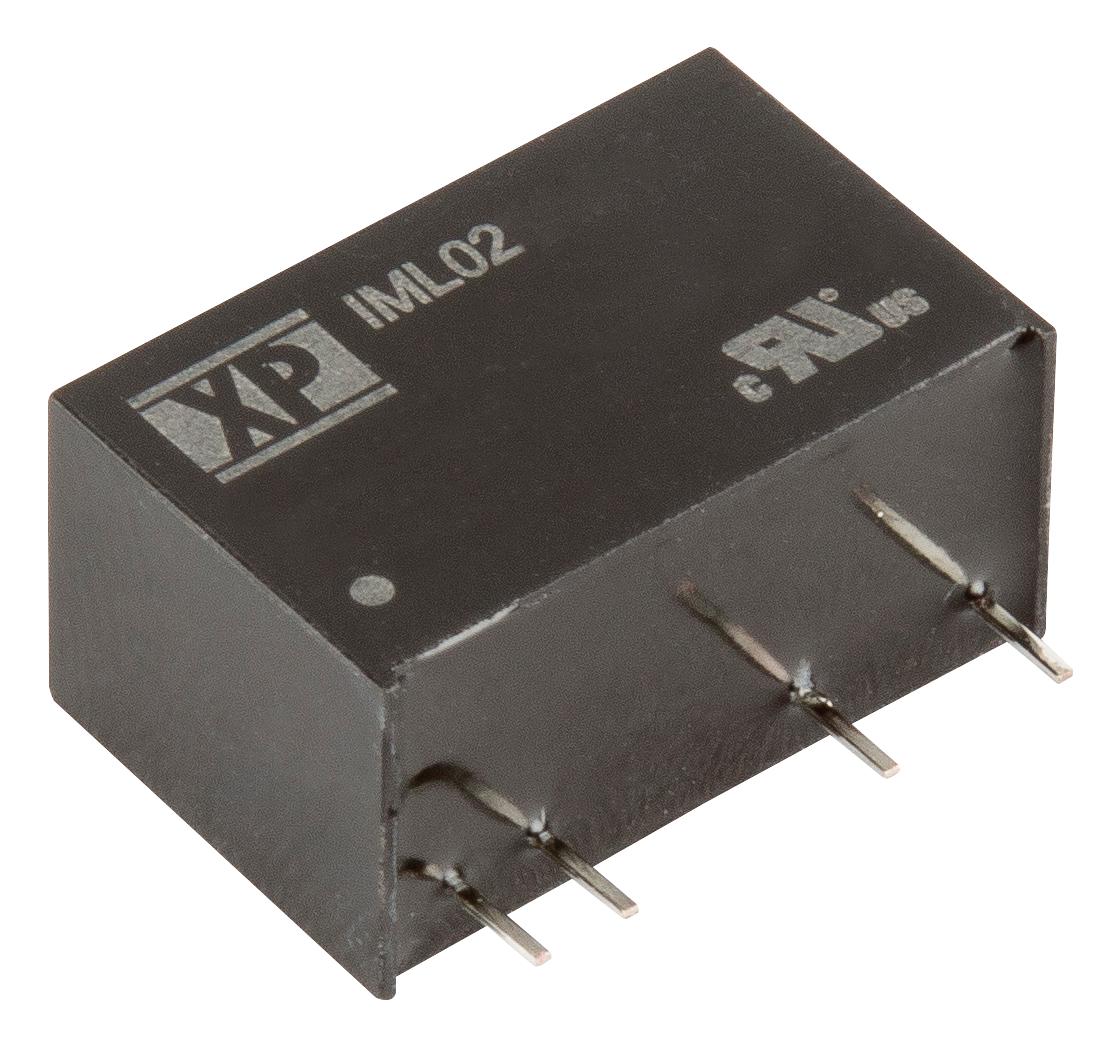

XP POWER IML0212S3V3 DC-DC Converter
The IML02 series is a compact 2W DC-DC converter designed for medical, industrial, and power supply applications. It features single and dual outputs in a SIP7 package, capable of operating from -40°C to +85°C at full load. The unit offers 4000VAC isolation with 1 x MOPP, ensuring safety compliance. It also provides low patient leakage current of 2µA, robust short-circuit protection, and excellent EMC emissions meeting EN55011 Class B standards. Perfect for demanding environments requiring reliable power conversion with medical safety approvals and high efficiency.
XP POWER IML0212S3V3 DC-DC Converter Specifications:
- Power: 2 Watts
- Input Voltage Range: 10.8-13.2V, 13.5-16.5V, 21.6-26.4V
- Output Voltage Options: 5V, 12V, 15V, 24V
- Output Current Max.: varies based on model
- Isolation Voltage: 4000 VAC, 1 x MOPP at 300VAC
- Operating Temperature: -40°C to +85°C at full load
- Humidity Range: 25% to 95% RH, non-condensing
- Dimensions: 0.77 x 0.39 x 0.49 inches (19.5 x 9.8 x 12.5 mm)
- Efficiency: Up to 80%
- Leakage Current: 2 µA
- Surge Capability: Yes, 100ms surge voltage
- Certifications: UL, CSA, EN60601-1, CE compliant
- Switching Frequency: 50-100 kHz
- MTBF: 2.5 million hours
Buy the XP Power Series DC-DC Converter: IML02: 2 Watts
Purchase the XP Power Series IML02 2W DC-DC Converter online today and enjoy a compact, efficient solution with medical safety approvals, superb isolation ratings, and low leakage current. Its SIP7 package and wide operating temperature range make it ideal for medical, industrial, and power management applications demanding high reliability and safety standards. With robust protection features like short-circuit protection and compliance with EMC emission standards, this converter guarantees dependable performance in mission-critical environments. Secure your supply chain by ordering now and enhance your project’s safety and efficiency with ease.
Order your XP Power Series IML02 DC-DC Converter today and ensure reliable, safe power for your medical and industrial projects.
Frequently Asked Questions
Where can I buy XP POWER IML0212S3V3?
You can click on the BUY or RFQ button to purchase IML0212S3V3 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part IML0212S3V3?
You can download the IML0212S3V3 datasheet or visit the XP POWER website for support.
Who is the manufacturer of IML0212S3V3?
XP POWER
