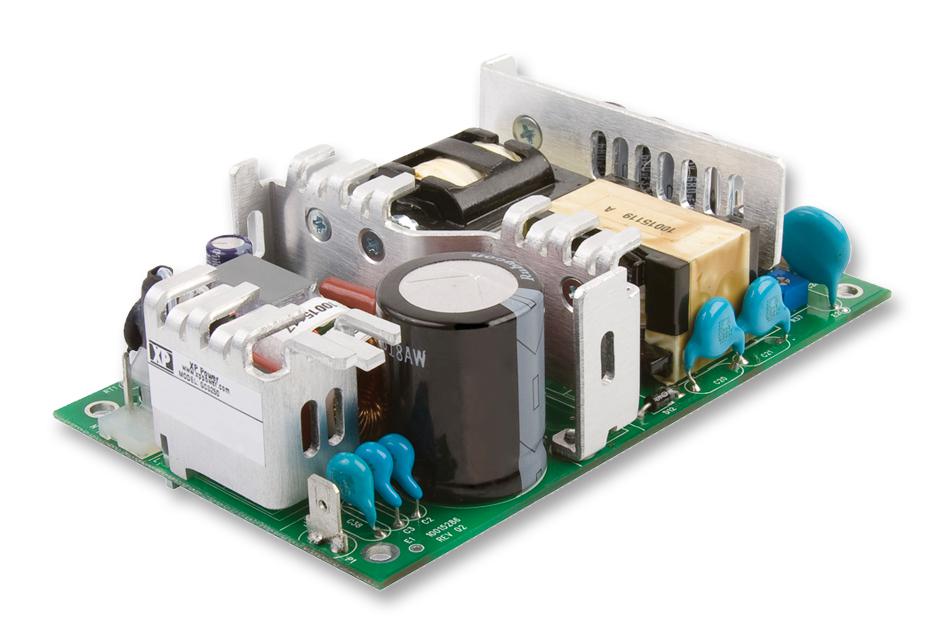

XP POWER GCS250PS48 power supply
The GCS250PS48 is a high-efficiency, compact AC-DC power supply delivering 48 VDC at 5.2A, with 257 W power output. Designed for industrial, medical, and IT applications, it features convection or forced cooling options, low standby power (<0.5W), and wide input voltage range (85–264 VAC). Compliant with UL, IEC60601-1, and EN55011/22 standards, it offers excellent surge, EMC, and safety performance. Compact size, high reliability, and multiple mounting options make it suitable for applications demanding stable, clean power with minimal heat generation.
XP POWER GCS250PS48 power supply Specifications:
- Input Voltage: 85–264 VAC
- Output Voltage: 48 VDC
- Output Current: 5.2A
- Maximum Output Power: 257 W
- Efficiency: Up to 94%
- Cooling: Convection or Forced-cooled options
- Dimensions: 3.48 x 5.50 x 1.70 inches
- Protection: Overload, Short-circuit, Overvoltage
- Safety Certifications: UL60950-1, IEC60601-1
- Emission Standards: EN55011/22 Class B
- Isolation: Input to Output 4000 VAC, Input to Ground 7500 VAC, Output to Ground 1500 VAC
- Operating Temperature: -40°C to +70°C
- Humidity: 5–95% RH Non-condensing
- Shock & Vibration: Conforms to EN standards
- Mounting: Multiple options, including convection and fan-cooled covers
Buy the XP Power GCS250PS48 – Reliable Power Supply for Industrial Applications
Purchase the XP Power GCS250PS48 online today and ensure a reliable, efficient power solution for your industrial, medical, or IT equipment. With a compact design, high efficiency, and robust safety certifications, this power supply guarantees consistent performance under demanding conditions. Its versatile cooling options and wide input voltage range make it suitable for various applications, reducing heat and energy consumption. Enjoy fast delivery, secure checkout, and expert support to meet your power needs effectively and hassle-free.
Get XP Power GCS250PS48 today—built for precision, efficiency, and long-lasting durability in demanding environments.
Frequently Asked Questions
Where can I buy XP POWER GCS250PS48?
You can click on the BUY or RFQ button to purchase GCS250PS48 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part GCS250PS48?
You can download the GCS250PS48 datasheet or visit the XP POWER website for support.
Who is the manufacturer of GCS250PS48?
XP POWER
