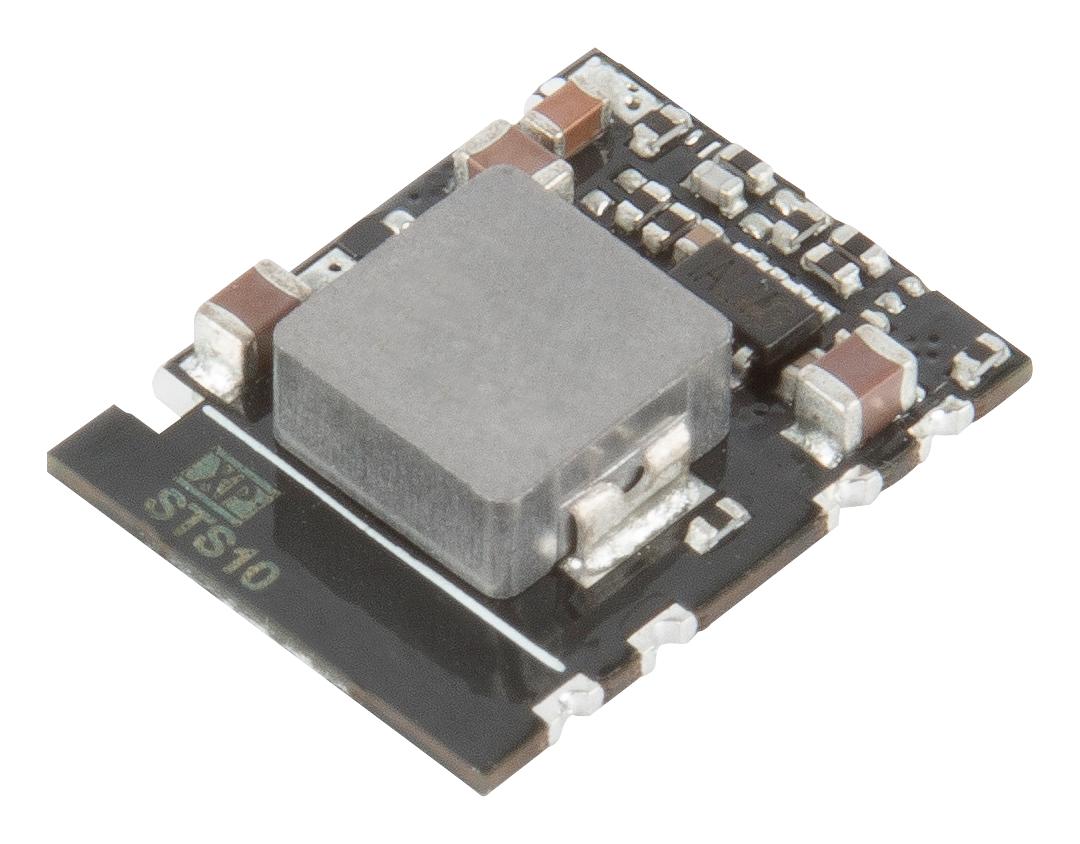

XP POWER STS1024S1V2 DC-DC Buck Regulator
The STS10 series comprises affordable, high-efficiency DC-DC buck regulators utilizing SMD technology, delivering regulated single outputs from 1.2V to 15V DC, compatible with wide input voltages. Features include output voltage trimming of ±10%, remote on/off control, continuous short circuit protection, and no heatsink required. These modules operate efficiently up to 96% and meet Class B emissions standards with external components. Suitable for reliable power regulation in industrial and electronics applications, they function at full load temperatures up to +65°C, ensuring robust performance in demanding environments.
XP POWER STS1024S1V2 DC-DC Buck Regulator Specifications:
- Input Voltage Range: 3.0-36.0 VDC
- Output Voltage: 1.2V to 15V (adjustable ±10%)
- Output Current: 1.0A
- Efficiency: Up to 96%
- Operating Temperature: -40°C to +105°C, full load to +65°C
- Protection: Short circuit protection
- Package: SMD-10
- Isolation: Non-isolated
- Dimensions: 0.60 x 0.47 x 0.15 inches (15.20 x 11.80 x 3.6 mm)
- Remote On/Off: Yes
- Compliance: Class B Conducted & Radiated Emissions with external components
- Heatsink: Not required
- Input Surge: 100 ms
- Transient Response: <±25% deviation, recovery within 250 μs
- Maximum Efficiency: 96%
Buy the XP Power STS1024S1V2 – Reliable DC-DC Buck Regulator for Industrial Applications
Purchase the XP Power STS1024S1V2 DC-DC buck regulator module online today to ensure your power supply needs are met with high efficiency and robust performance. This versatile module provides adjustable output from 1.2V to 15V, with remote on/off control and short circuit protection—ideal for industrial, electronics, and automation projects. Its compact SMD design simplifies integration into various systems while offering exceptional thermal performance without heatsinks. Experience reliable, efficient power regulation tailored for demanding applications by ordering now.
Buy XP Power STS1024S1V2 now and experience unmatched reliability and high efficiency for demanding power regulation in industrial and electronics applications.
Frequently Asked Questions
Where can I buy XP POWER STS1024S1V2?
You can click on the BUY or RFQ button to purchase STS1024S1V2 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part STS1024S1V2?
You can download the STS1024S1V2 datasheet or visit the XP POWER website for support.
Who is the manufacturer of STS1024S1V2?
XP POWER
