XP POWER IMB0105S12 Medical DC-DC Converter
The IMBO1 series offers a compact, medical-grade DC-DC converter with a 1-watt power output, designed for medical applications. It features reinforced isolation of 2 x MOPP at 300VAC, ultra-low patient leakage current of 2 μA, and operates efficiently from -40°C to +105°C. The SIP7 package includes short circuit protection, ensuring reliable performance in medical environments. It complies with IEC60601-1 standards, providing high safety margins and durability for life-critical systems. Ideal for portable medical devices, it boasts full load operation at +85°C ambient with a 3-year warranty.
XP POWER IMB0105S12 Medical DC-DC Converter Specifications:
- Power Output: 1 Watt
- Input Voltage Range: 10.8-13.2 VDC (12V nominal)
- Output Voltage: 5V (models available)
- Output Current: 200mA (typical)
- Isolation: 4000 VAC 60s, reinforced, 2 x MOPP
- Efficiency: 80%
- Leakage Current: 2 μA
- Operating Temperature: -40°C to +105°C
- Case Dimensions: 0.87 x 0.49 x 0.30 inches (22.0 x 12.5 x 7.5mm)
- Operating Altitude: 5000 meters
- Storage Temperature: -50°C to +125°C
- Humidity: 5% RH non-condensing
- Isolation Resistance: 10^9 Ω at 500 VDC
- Switching Frequency: 12-28 kHz (burst mode at light loads)
- MTBF: 4.3 million hours
- Weight: 0.009 lbs (4.1 grams)
- Construction: Non-conductive UL94V-0 rated plastic case, tinned copper pins

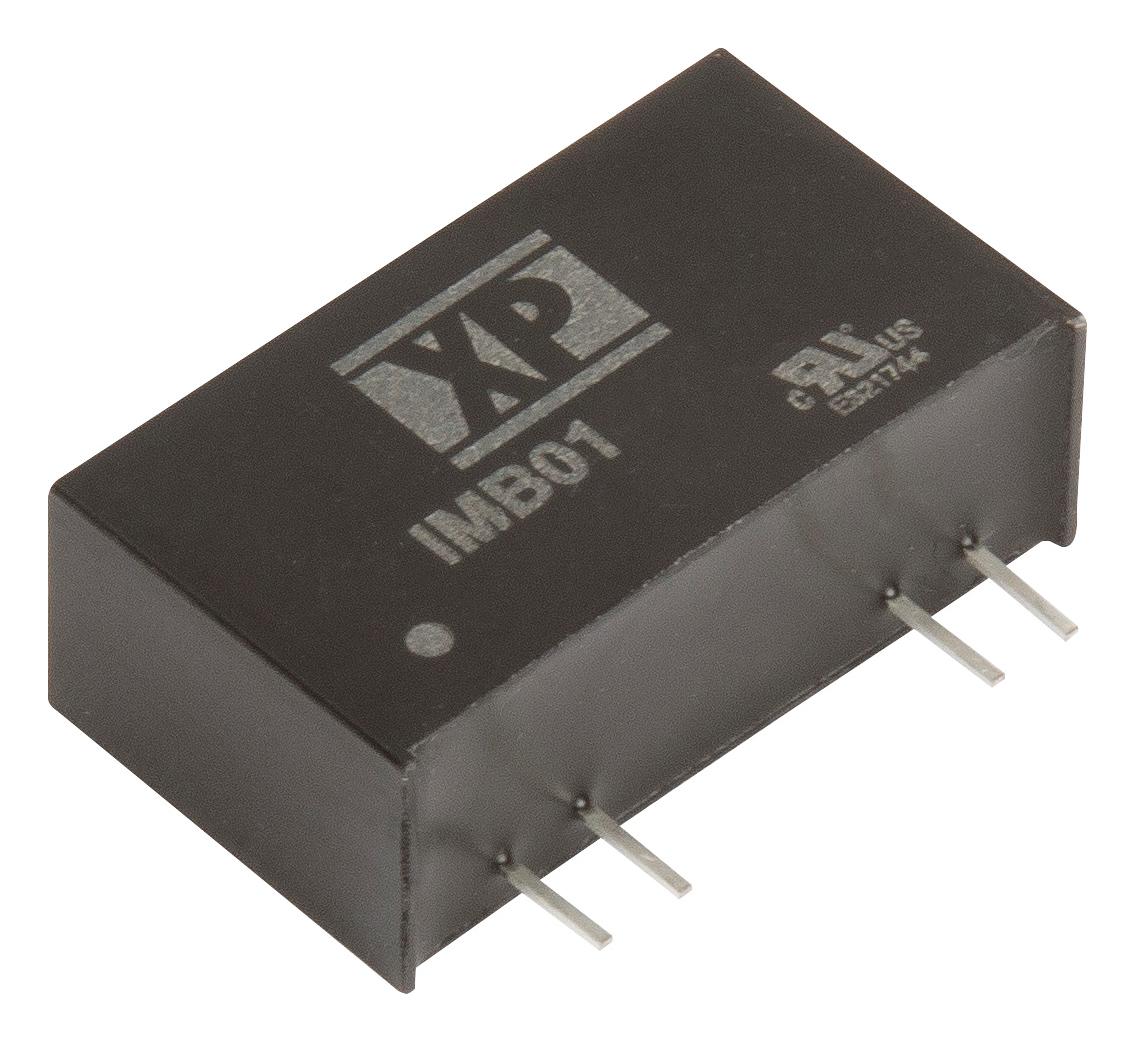

Buy the XP Power Series IMBO1 DC-DC Converter: IMB0105S12
Experience dependable power with the XP Power Series IMBO1 1-Watt medical-grade DC-DC converter. Featuring reinforced isolation of 2 x MOPP at 300VAC, ultra-low patient leakage current of 2 μA, and operation across -40°C to +105°C, it ensures safety and durability in demanding medical environments. Compact and reliable, it includes short circuit protection and full load capability at +85°C ambient. Perfect for portable medical devices requiring high safety margins, this converter also complies with IEC60601-1 standards for life-critical systems. Buy online today for trusted quality and seamless integration into your medical projects.
Order your XP Power Series IMBO1 1W medical-grade DC-DC converter today and ensure the safety and reliability of your critical medical devices.
Frequently Asked Questions
Where can I buy XP POWER IMB0105S12?
You can click on the BUY or RFQ button to purchase IMB0105S12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part IMB0105S12?
You can download the IMB0105S12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of IMB0105S12?
XP POWER
