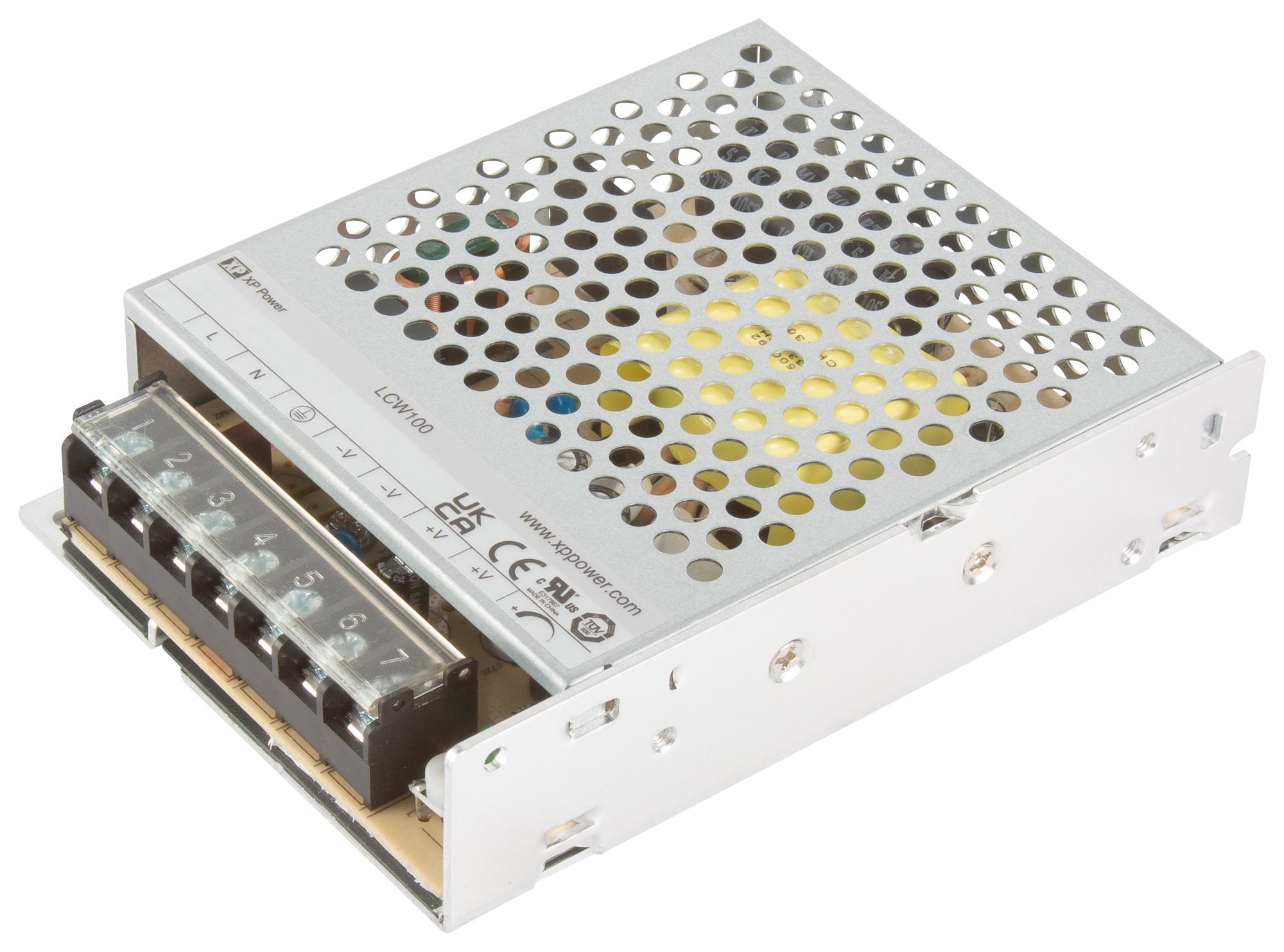

XP POWER LCW100US15 Power Supply
The LCW100 series regulated AC to DC power supplies are convection cooled and designed to deliver 100W of power. They feature a wide AC input voltage range of 85-305VAC, output voltage adjustment with ±10% trimming, and efficiency up to 90%. Equipped with protections against short circuits, overcurrent, overvoltage, and overload, these supplies are certified for industrial, household, and IT applications including UL62368-1 and EN62368-1. They feature an aluminum chassis with galvanized steel cover, conformal coating options, and operate from -30°C to +70°C, measuring 5.08 x 3.82 x 1.18 inches with a 3-year warranty.
XP POWER LCW100US15 Power Supply Specifications:
- Power Output: 100W
- Input Voltage Range: 85-305VAC
- Output Voltage Adjustment: ±10%
- Output Ripple & Noise: Up to 150mV pk-pk (at full load)
- Efficiency: Up to 90%
- Operating Temperature: -30°C to +70°C
- Protection: Short circuit, overcurrent, overvoltage, overload
- Certifications: UL62368-1, EN62368-1, EN60335, EN61558, CE, UKCA
- Dimensions: 5.08 x 3.82 x 1.18 inches (129 x 97 x 30mm)
- Case Material: Aluminum chassis with vented galvanized steel cover
- Conformal Coating: Available as an option
Buy the Power Supply Series Convection Cooled 100W: LCW100US15
Experience dependable performance with the LCW series 100W convection cooled AC to DC power supplies. Featuring wide input voltage, adjustable output, and high efficiency, these supplies are ideal for industrial, household, and IT applications. Certified for safety standards including UL and CE, they come with protection features like short circuit, overcurrent, and overvoltage protection. The durable aluminum chassis supports operation from -30°C to +70°C, making them suitable for demanding environments. Order online today for reliable power in your projects with a 3-year warranty.
Buy LCW100US15 power supply now and ensure reliable, efficient operation for industrial and household electronic systems.
Frequently Asked Questions
Where can I buy XP POWER LCW100US15?
You can click on the BUY or RFQ button to purchase LCW100US15 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part LCW100US15?
You can download the LCW100US15 datasheet or visit the XP POWER website for support.
Who is the manufacturer of LCW100US15?
XP POWER
