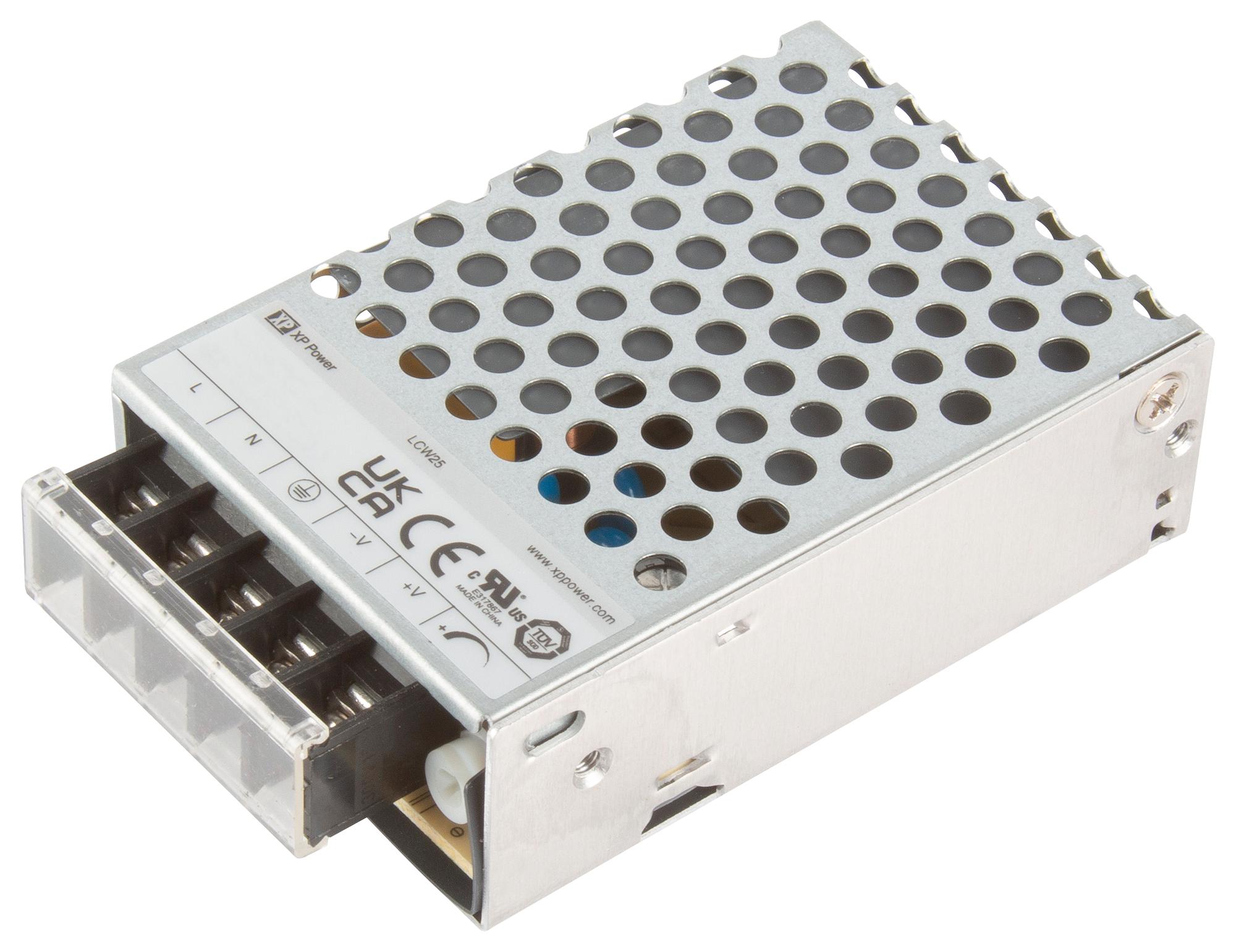

XP POWER LCW25US03 Power Supply
The LCW25 series regulated output convection-cooled AC to DC power supplies are designed to offer a cost-effective solution for various industrial electronics and technology applications. These 25W power supplies feature a wide AC input range of 85-305VAC, output voltage adjustment, and low stand-by power consumption. They include protections against short circuit, overcurrent, overload, and overvoltage conditions. Suitable for auxiliary power sources, security systems, lighting control, smart home and office automation, and ticketing or vending applications. Certified by UL (UL62368-1), EN (EN62368-1), CE, and UKCA, these units have a convection cooling design, integrated connector cover, and conformal coating options. They operate efficiently with 78% efficiency, a switching frequency of 65kHz, and a +/-10% output voltage trim. The chassis is made of aluminum with a vented galvanized steel cover, dimensions of 3.70 x 2.17 x 0.98 inches (94 x 55 x 25mm), and an operating temperature range from -30°C to +70°C. A 3-year warranty is provided.
XP POWER LCW25US03 Power Supply Specifications:
- Input Voltage Range: 85-305VAC
- Output Power: 25W
- Output Voltage Adjustment: ±10%
- Efficiency: Up to 78%
- Operating Temperature: -30°C to +70°C
- Dimensions: 3.70 x 2.17 x 0.98 inches (94 x 55 x 25mm)
- Cooling: Natural convection
- Protection: Short circuit, overvoltage, overload
- Certifications: UL, EN, CE, UKCA
- Switching Frequency: 65kHz
- Material: Aluminum chassis, galvanized steel cover
- Conformal Coating: Optional
Buy the XP Power Series LCW25 25W Convection AC-DC Power Supply: LCW25US03
Discover the efficient and reliable 25W convection cooled power supply from XP Power. Featuring a wide input voltage of 85-305VAC, adjustable output, low standby power, and comprehensive protections, this unit is ideal for industrial, security, lighting, and automation applications. Certified by UL, EN, CE, and UKCA, it’s built for durability with a convection cooling design, an aluminum chassis, and optional conformal coating. Its compact size of 3.70 x 2.17 x 0.98 inches, operating temperature range of -30°C to +70°C, and 3-year warranty make it an ideal choice for demanding environments.
Order your XP Power Series LCW25US03 convection cooled power supply today and ensure reliable power for your industrial electronics projects.
Frequently Asked Questions
Where can I buy XP POWER LCW25US03?
You can click on the BUY or RFQ button to purchase LCW25US03 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part LCW25US03?
You can download the LCW25US03 datasheet or visit the XP POWER website for support.
Who is the manufacturer of LCW25US03?
XP POWER
