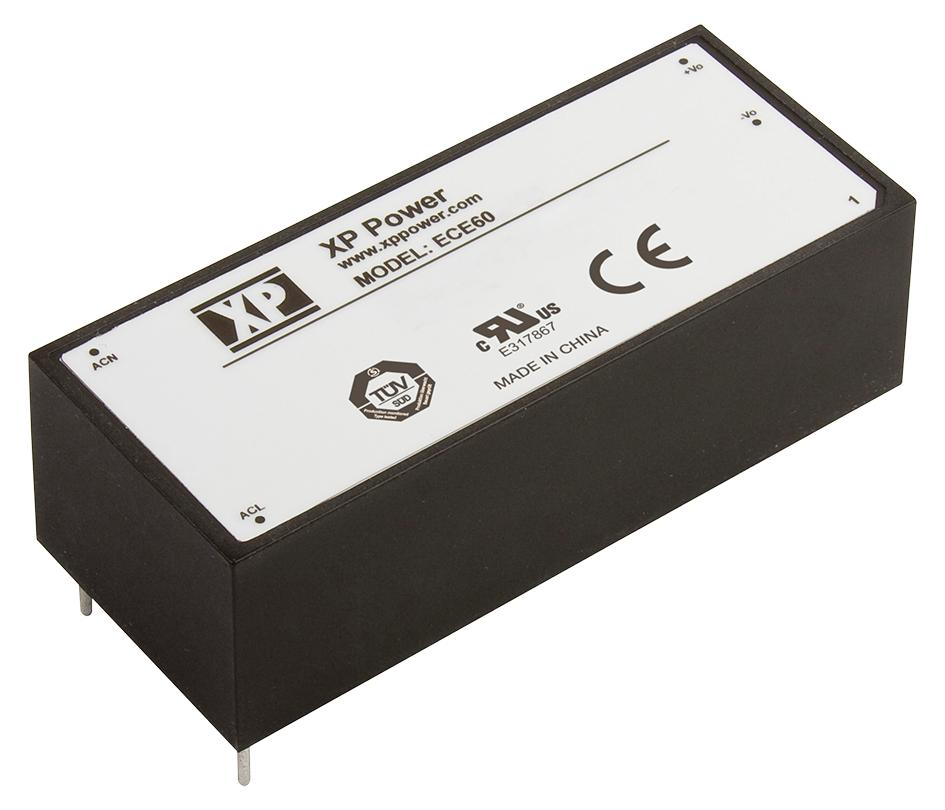

XP POWER ECE60US09 AC-DC Power Module
The ECE60 series of compact encapsulated AC-DC power modules offers high power density of over 10W per cubic inch. Available in both PCB and chassis mount configurations, these modules provide output voltages ranging from 3.3V to 48V DC. They are designed for energy efficiency, featuring high active mode efficiency and low no-load power consumption measures of less than 0.3W. The modules can handle peak loads up to 130% of their nominal power for up to 30 seconds and operate reliably across a wide temperature range from -40°C to 70°C. Key features include an ultra-compact size, encapsulation for protection, and a wide array of applications such as industrial power management.
XP POWER ECE60US09 AC-DC Power Module Specifications:
- Power: 60 Watts
- Input Range: 85-264 VAC
- Efficiency: up to 89%
- No Load Power: <0.3 W
- Output Voltages: 3.3V, 5V, 9V, 12V, 15V, 24V, 36V, 48V
- Output Current: up to 10A depending on voltage
- Peak Load Capability: up to 130% for 30 seconds
- Operating Temperature: -40°C to +70°C
- Dimensions (PCB mount): 3.60 x 1.50 x 1.10 inches
- Dimensions (Chassis mount): 4.45 x 1.57 x 1.12 inches
- Encapsulated design for protection and durability
- Safety Certifications: UL, EN, CSA
- Input Power: Less than 0.5 W at no load
- Power Density: >10 W/in³
- Electrical Isolation: 3000 VAC input to output
- Switching Frequency: approximately 700 kHz
- Reliability: MTBF >3300,000 hours
- Vibration Tolerance: 2 g, 10 Hz to 500 Hz
- Humidity Resistance: Up to 96% RH non-condensing
Buy the Buy XP Power ECE60US09 Part Number ECE60US09 Online
Purchase the XP Power ECE60US09 power module online today to enjoy reliable, efficient power conversion with peak load capability, low no-load consumption, and wide temperature operation for industrial applications. Its compact, encapsulated design ensures durability and easy integration into various systems. With high efficiency up to 89% and robust safety features certified by UL, CSA, and EN standards, this module is the perfect choice for energy-conscious, high-performance power management solutions that demand stability and longevity.
Buy XP Power ECE60US09 now and experience unmatched reliability, efficiency, and peak load performance in industrial power supplies.
Frequently Asked Questions
Where can I buy XP POWER ECE60US09?
You can click on the BUY or RFQ button to purchase ECE60US09 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part ECE60US09?
You can download the ECE60US09 datasheet or visit the XP POWER website for support.
Who is the manufacturer of ECE60US09?
XP POWER
