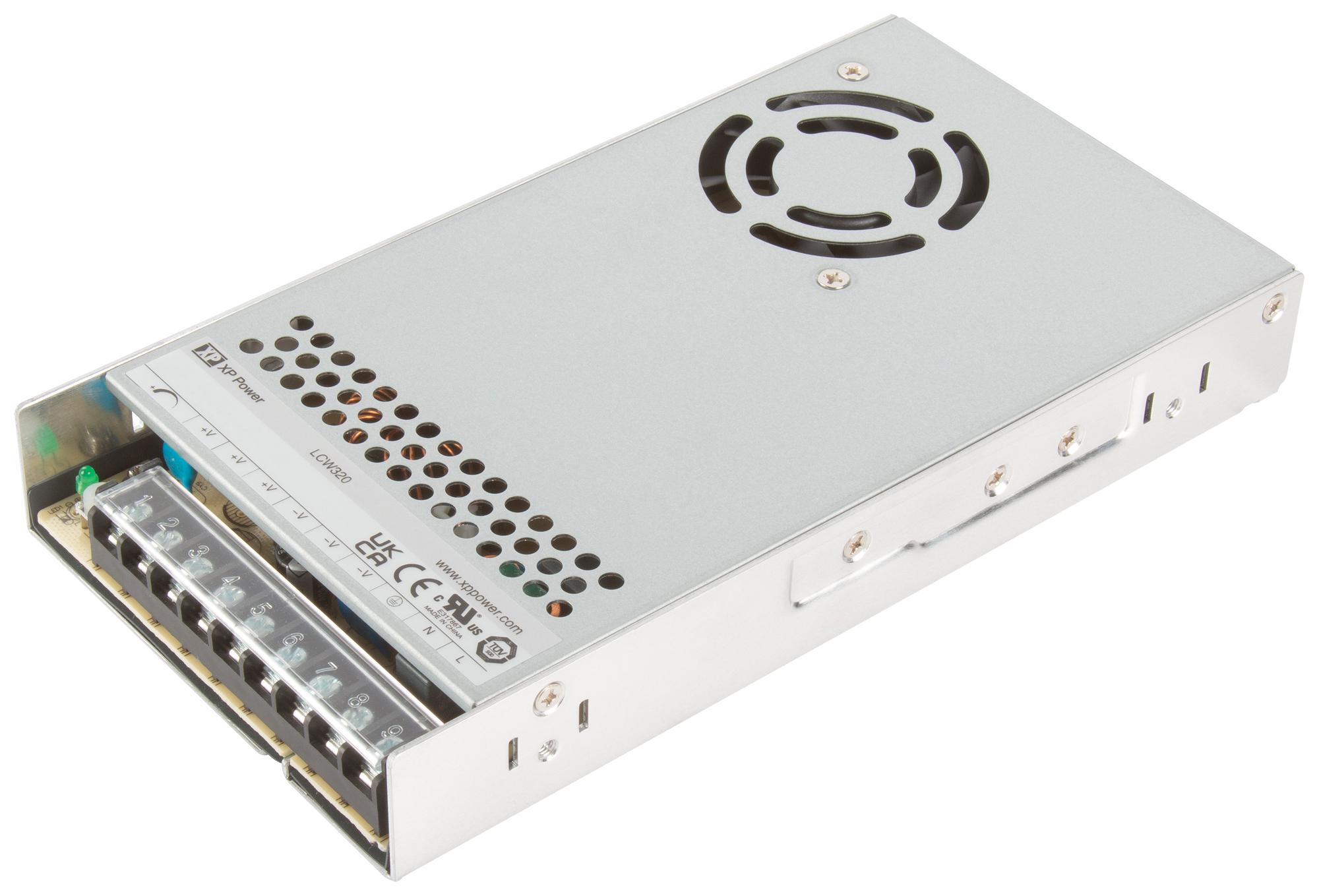

XP POWER LCW320PS12 Industrial Power Supply
The LCW320 series regulated, fan-cooled AC to DC power supplies offer a cost-effective solution for industrial electronics and technology applications. They feature a wide input voltage range of 85-305VAC, active power factor correction, adjustable output voltage, and status indicators such as a 'ON' LED. These units have low standby power consumption and include protections against short circuits, overcurrent, overload, and overvoltage conditions. Suitable for auxiliary power, security systems, lighting control, smart home or office automation, and vending applications, they are certified by UL (UL62368-1), EN (EN62368-1), CE, and UKCA. Key features include 320W power output, integrated connector cover, compliance with ITE and industrial approvals, class B conducted and radiated emissions, output voltage trim, switching frequency of 65kHz, efficiency of 86%, and optional conformal coating. Operating temperatures range from -30°C to +70°C. The units come with a 3-year warranty, housed in an aluminum chassis with vented galvanized steel cover (AL1100 and SGCC). Dimensions are 8.46 inches x 4.53 inches x 1.18 inches (215mm x 115mm x 30mm).
XP POWER LCW320PS12 Industrial Power Supply Specifications:
- Power Rating: 320W
- Input Voltage Range: 85-305VAC
- Output Voltage: 5V, 12V, 15V, 24V, 48V (adjustable as specified)
- Efficiency: up to 89%
- Operating Temperature: -30°C to +70°C
- Dimensions: 8.46 inches x 4.53 inches x 1.18 inches (215mm x 115mm x 30mm)
- Switching Frequency: 65kHz
- Protections: Short circuit, overvoltage, overload
- Certifications: UL (UL62368-1), CE, UKCA
- Cooling: Fan cooled
- Housing: Aluminum chassis with vented galvanized steel cover
- Environmental Rating: Conformal coating option available
- Approvals: ITE & industrial standards
- Emissions: Class B conducted & radiated
Buy the Buy XP Power LCW320 Series Power Supply Part Number LCW320PS12 Online
Secure your industrial electronics with the XP Power LCW320 power supply. Featuring a 320W output, wide input voltage range, active PFC, adjustable output, and multiple protections, this unit guarantees reliable performance in demanding environments. Its efficient design delivers up to 89% efficiency, while operating from -30°C to +70°C. Easy to install in various automation and security systems, it’s UL listed and comes with a 3-year warranty. Buy online now for dependable, high-quality power solutions for your industrial projects.
Order your XP Power LCW320PS12 fan-cooled power supply today and ensure reliable, industrial-grade power for your critical systems.
Frequently Asked Questions
Where can I buy XP POWER LCW320PS12?
You can click on the BUY or RFQ button to purchase LCW320PS12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part LCW320PS12?
You can download the LCW320PS12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of LCW320PS12?
XP POWER
