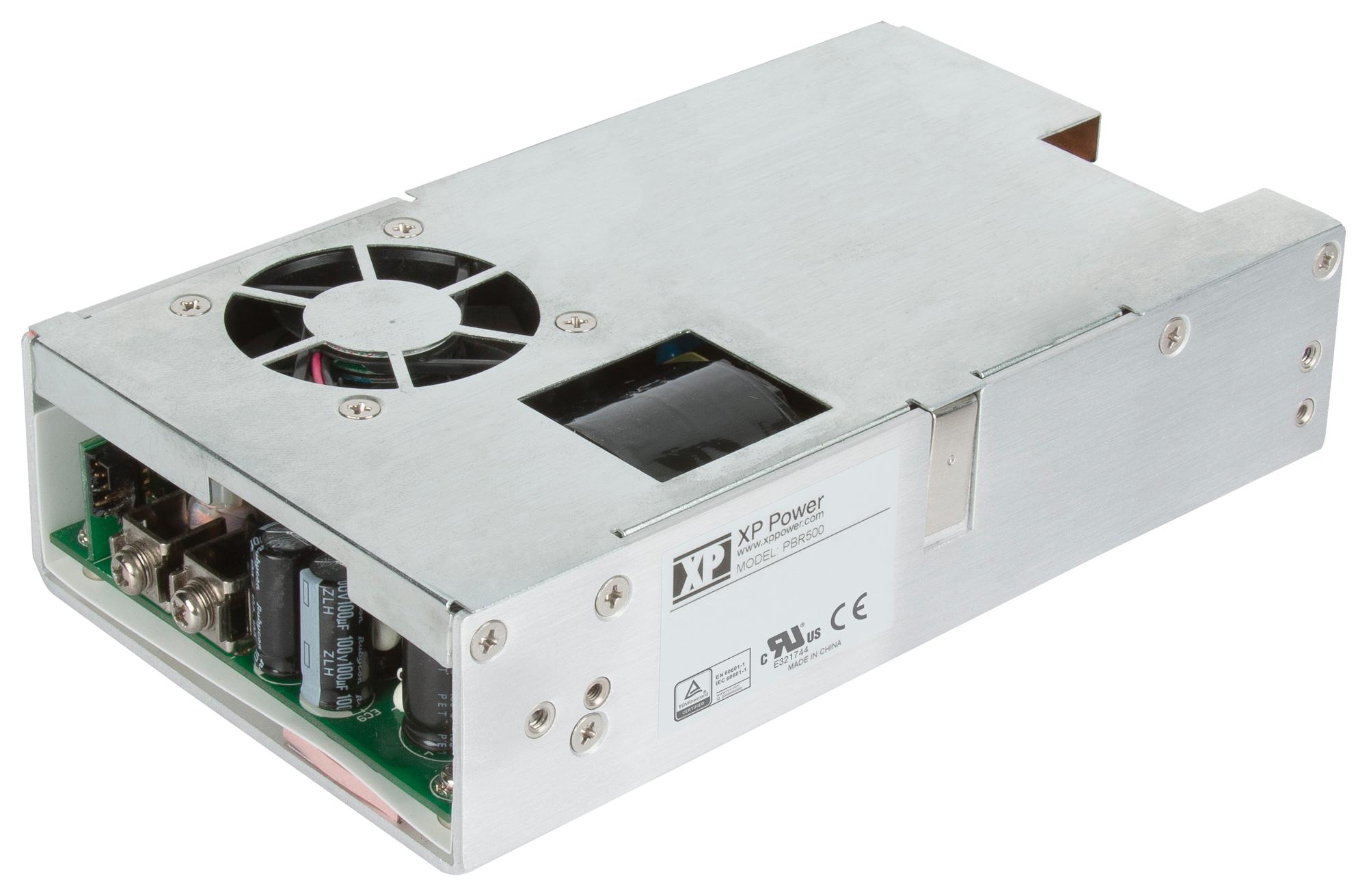

XP POWER PBR500PS36C AC-DC Power Supply
The PBR500 series consists of AC to DC switching power supplies built on a U-Channel frame for enhanced mechanical support and heat dissipation. Suitable for industrial and medical applications, including BF-rated insulation, they operate at altitudes up to 5,000 meters. Features include forced and convection cooling, a 5V standby and 12V fan supply, status indicators like AC OK and inhibit, and remote sense. Compliant with Class B emission standards, these units measure 7.0 x 4.00 x 1.70 inches, offering reliable power delivery with optional cover and fan assembly.
XP POWER PBR500PS36C AC-DC Power Supply Specifications:
- Input Voltage: 80-264 VAC, Derate to 90% at 85 VAC and 80% at 80 VAC
- Input Frequency: 47-63 Hz
- Input Current at Full Load: 5.27 A (116/230 VAC, 60/50 Hz)
- Earth Leakage Current: 200-250 VA at 264 VAC, 63 Hz
- Output Power: 350-400W convection cooled, 450-500W forced air cooled
- Output Voltage: 12V to 57V depending on model, with regulation within 0.1%
- Ripple & Noise: Up to 120 mV pk-pk across models
- Overvoltage Protection: 112-140% latch
- Overcurrent Protection: 115-140%
- Efficiency: Approx. 90% at 280 VAC, 100% load
- Operating Temperature Range: -10°C to +70°C (derates linearly above 50°C)
- Storage Temperature: -40°C to +85°C
- Humidity: 5-95% RH, non-condensing
- Dimensions: 7.0 x 4.00 x 1.70 inches (177.8 x 101.6 x 44.5 mm)
- Weight: Approximately 1.0 kg
- Safety Standards: Meets UL60601-1, EN62368-1, and CE directives
- Insulation: BF-rated available in covered versions
- Protection features include thermal shutdown, transient response within 4%, and remote sensing for voltage compensation.
Buy the Buy XP Power PBR500 Series Part Number PBR500PS36C Online
Experience the advanced reliability of the PBR500 series power supplies, designed for robust industrial and medical applications. These 450-500W units feature optional forced air cooling or convection, high efficiency, BF insulation, and compliance with stringent emission standards. With a compact U-Channel frame, they provide excellent heat sinking and mechanical support. Ideal for high-altitude operation up to 5000 meters, they include remote sense, status indicators, and protection features, making them perfect for demanding environments requiring dependable power supply solutions.
Buy XP Power PBR500PS36C now and experience unmatched reliability and high-performance medical and industrial power solutions with advanced cooling and safety features.
Frequently Asked Questions
Where can I buy XP POWER PBR500PS36C?
You can click on the BUY or RFQ button to purchase PBR500PS36C from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part PBR500PS36C?
You can download the PBR500PS36C datasheet or visit the XP POWER website for support.
Who is the manufacturer of PBR500PS36C?
XP POWER
