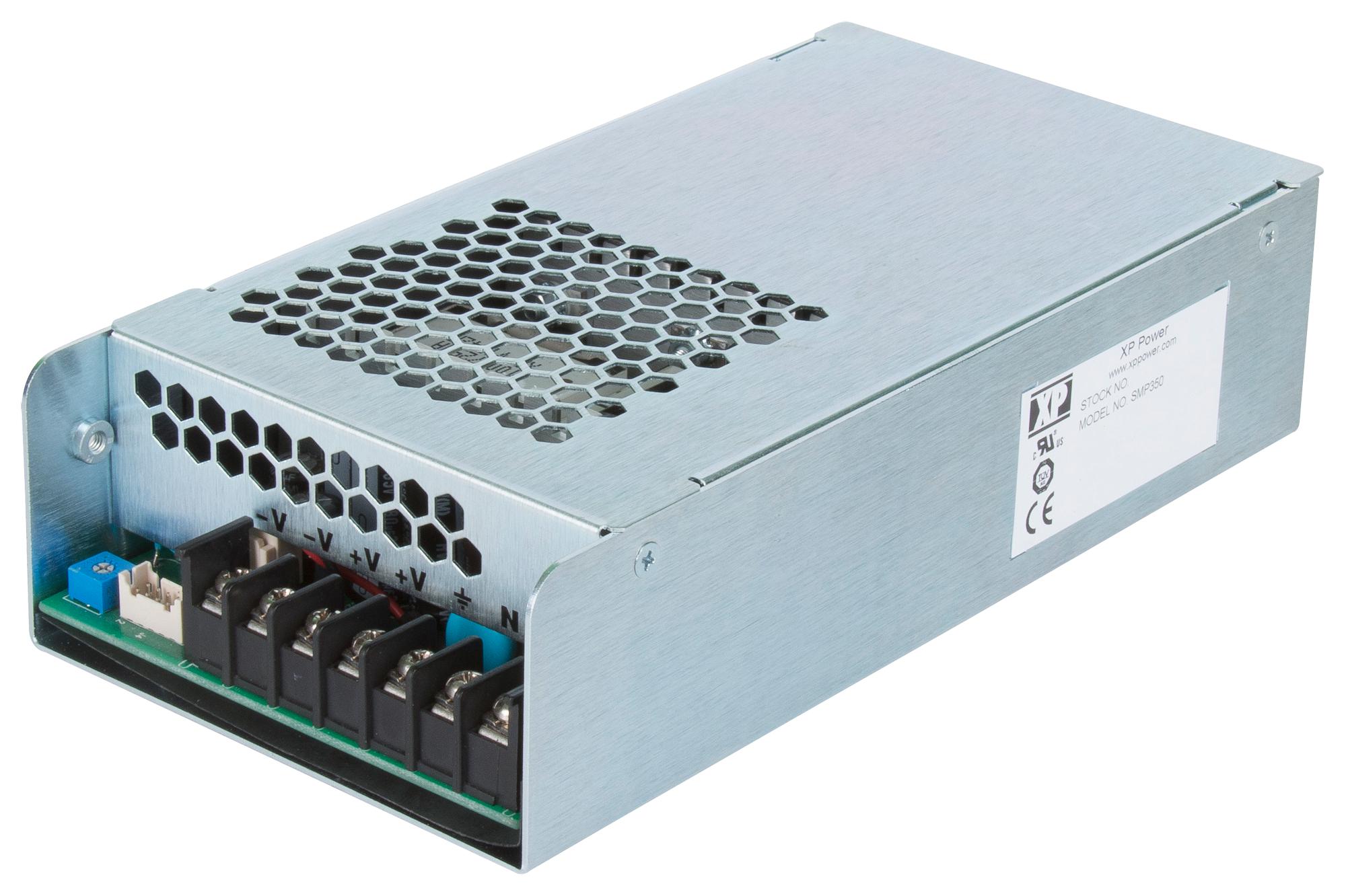

XP POWER SMP350PS12 Industrial Power Supply
The SMP350 power supply unit delivers up to 350W with high efficiency, compact size, and rugged construction. Designed for industrial use, it features seven single-output models from 12V to 48V DC with adjustable voltage ±2%. The enclosure measures 7 x 3.6 x 1.7 inches, including fan and screw terminals, offering a high power density of 8.17 W/in³. It operates reliably from -20°C to 70°C, with start-up at -40°C and derating above 50°C. The unit provides protections for overtemperature, overvoltage, overload, and short circuits, and meets stringent EMI and safety standards for industrial and medical applications.
XP POWER SMP350PS12 Industrial Power Supply Specifications:
- Power Output: 350W
- Input Voltage Range: 85-264 VAC
- Output Voltages: 12V, 15V, 18V, 24V, 28V, 36V, 48V
- Output Current Range: 13.75A to 25A (depending on model)
- Dimensions: 7 x 3.6 x 1.7 inches (177.8 x 91.44 x 43.19 mm)
- Efficiency: Up to 90%
- Operating Temperature: -20°C to +70°C
- Start-up Temperature: -40°C
- Derating Above 50°C: Yes
- Protections: Overtemperature, Overvoltage, Overload, Short circuit
- Remote On/Off: Yes, integrated remote sensing
- EMI Compliance: EN55011/EN55022 Class B Conducted, Class A Radiated
- Safety Standards: IEC 60950-1, IEC 60601-1
- Isolation: 4000 VAC input to output, 7500 VAC input to ground
- High Power Density: 8.17 W/in³
- Construction: Rugged, enclosed with fan
- Temperature Coefficient: 0.02%/°C
Buy the Buy XP Power SMP350PS12 Part Number 350PS12 Online
Purchase the high-performance XP Power SMP350PS12 today online and benefit from a reliable 350W power solution with high efficiency of up to 90%, rugged enclosure, and comprehensive protections. Compact and designed for demanding industrial environments, this power supply offers adjustable output voltage, remote sensing, and broad safety certifications. With easy screw terminal connections, it ensures smooth installation and operation across a wide temperature range from -20°C to 70°C, starting reliably at -40°C. Get this compact, high-density, and energy-efficient power supply now through our easy online ordering platform for your industrial and medical applications.
Order your XP Power SMP350PS12 power supply today and ensure reliable performance with high efficiency and rugged construction for industrial projects.
Frequently Asked Questions
Where can I buy XP POWER SMP350PS12?
You can click on the BUY or RFQ button to purchase SMP350PS12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part SMP350PS12?
You can download the SMP350PS12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of SMP350PS12?
XP POWER
