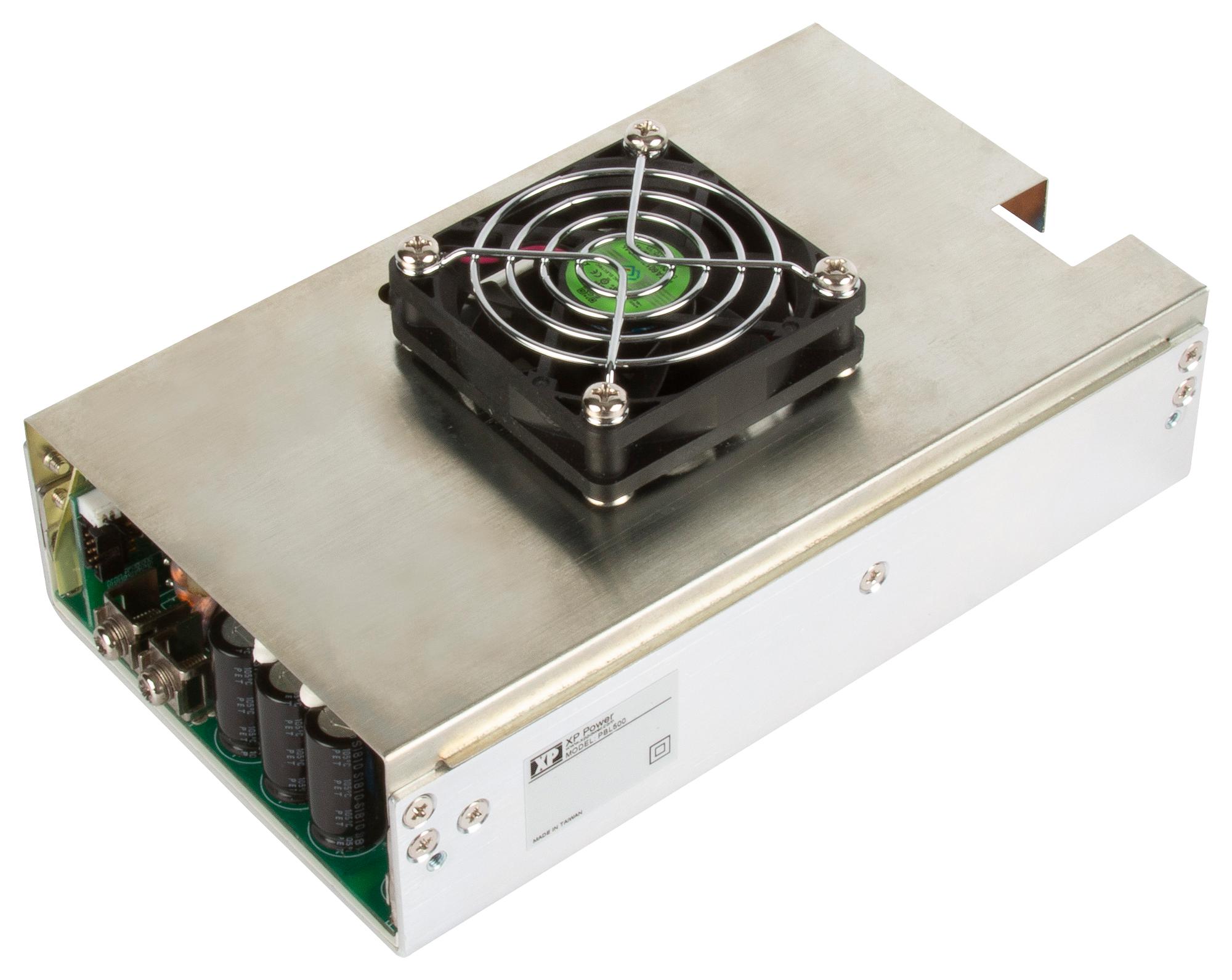

XP POWER PBL500PS12C Power Supply Module
The PBL500 series power supply provides reliable 450-500W power output suitable for medical and industrial applications, featuring forced air or convection cooling, temperature regulation, and high efficiency. Designed with a U-channel enclosure, it supports operation up to 5000 meters altitude, with comprehensive protections including overvoltage, overcurrent, and thermal shutdown. The unit offers multiple output voltages, remote sensing, and standby power, ensuring stable operation. Certified under medical safety standards (EN60601-1), it integrates fan control, remote inhibit, and Power OK signaling for optimal system integration and safety. Its robust design ensures durability and performance for critical applications.
XP POWER PBL500PS12C Power Supply Module Specifications:
- Input Voltage: 80-264 VAC
- Input Frequency: 50-63 Hz
- Input Current: 5.2/2.6 A at 115/230 VAC
- No Load Power: 1 W
- Inrush Current: 30/60 A at 115/230 VAC
- Output Voltage: 12V to 57V, models with different currents
- Output Power: 450-500W with forced air cooling, 250W convection cooled
- Ripple & Noise: 120-570 mV depending on output voltage
- Efficiency: 90% at full load
- Protection: Overvoltage (112-140%), Overcurrent (105-140%), Thermal shutdown
- Operating Temperature: -10°C to +70°C with derating
- Altitude: Up to 5000 meters
- Isolation: Input to case 4000 VAC, output to case 1500 VAC
- Cooling: Forced air with integral fan, temperature-controlled
- Dimensions: 7.1 x 4.00 x 1.56 inches (180.34 x 101.6 x 39.62 mm)
- Certifications: EN60601-1, UL, CSA, CE, UKCA
Buy the Pere PBL500 U–2013 Reliable Medical Power Supply for Industrial Applications
Enhance your system’s reliability with the Pere PBL500 power supply, offering 450-500W output, medical safety approvals, and advanced protections. This high-performance power unit features multiple voltage options, remote sensing, and integrated fan cooling, ensuring stable operation in critical applications. Its rugged design supports operation up to 5000 meters altitude and includes user-friendly features like remote inhibit and Power OK signals. Available in a compact U-channel package, it’s ideal for medical, industrial, and automation systems requiring high efficiency and safety compliance. Purchase online today for dependable power management.
Buy Pere PBL500 now and experience unmatched reliability and performance in medical and industrial power solutions.
Frequently Asked Questions
Where can I buy XP POWER PBL500PS12C?
You can click on the BUY or RFQ button to purchase PBL500PS12C from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part PBL500PS12C?
You can download the PBL500PS12C datasheet or visit the XP POWER website for support.
Who is the manufacturer of PBL500PS12C?
XP POWER
